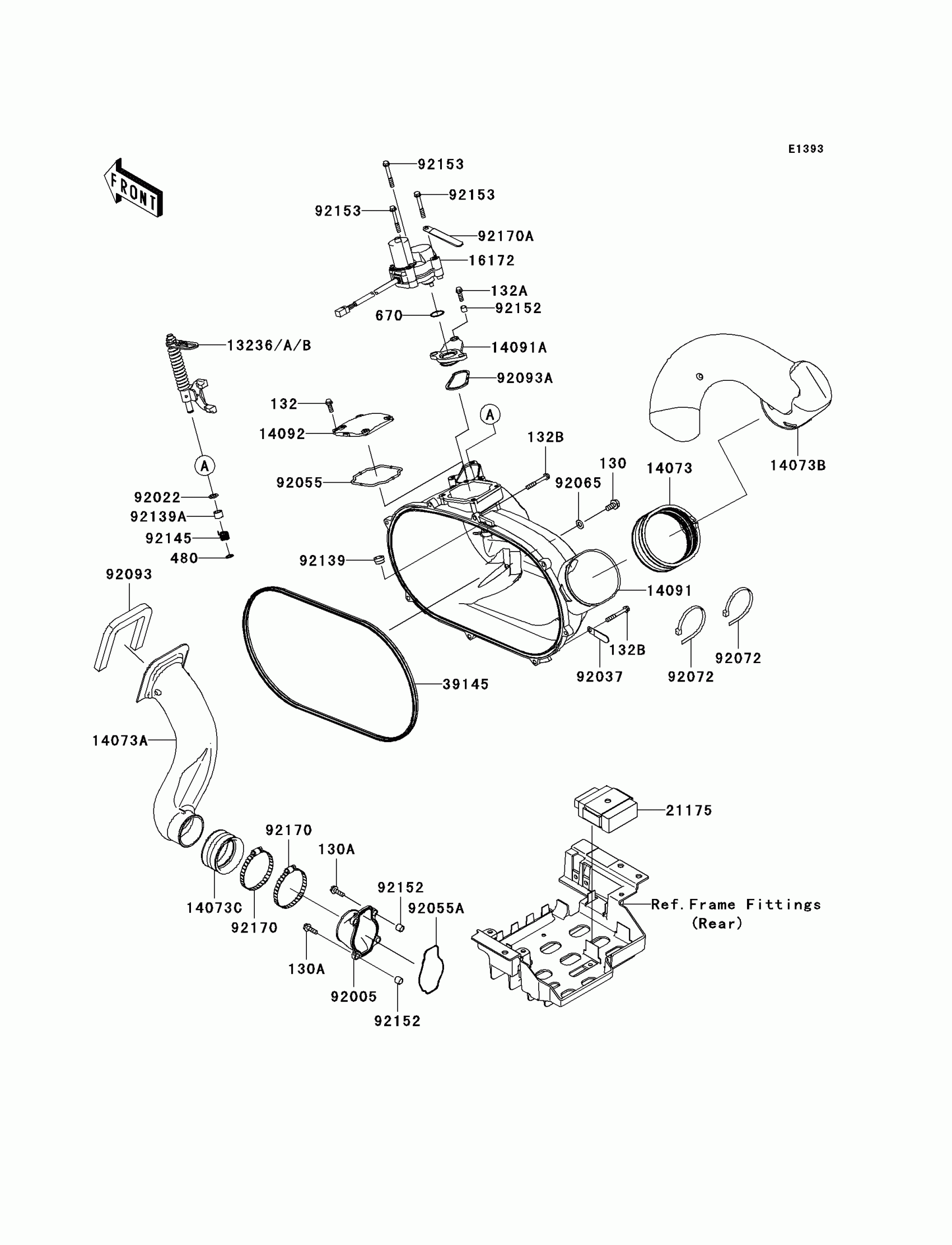

Kawasaki Teryx 750 FI 4X4 (SGE) Converter Cover Diagram

#

Description
Price

130

BOLT-FLANGED,8X16

130BA0816

$1.12

130A

BOLT-FLANGED,6X20

130CD0620

$1.76

132

BOLT-FLANGED-SMALL,6X18

132BA0618

$3.67

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

$4.45

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.65

670

O RING

670D3022

$2.80

13236

LEVER-COMP,YELLOW

13236-0123

Unavailable

13236A

LEVER-COMP,GREEN

13236-0124

Unavailable

13236B

LEVER-COMP,PAINT LESS

13236-0125

$140.59

14073

DUCT,EXHAUST JOINT

14073-0136

$8.49

14073A

DUCT,INTAKE

14073-0259

$31.79

14073B

DUCT,EXHAUST

14073-0260

$30.79

14073C

DUCT,JOINT

14073-1775

$4.36

14091

COVER,CVT

14091-0671

Unavailable

14091A

COVER,MOUNTING EYE,ACTR

14091-0673

$4.92

14092

COVER,ACCESS

14092-0066

$33.29

16172

ACTUATOR

16172-0019

$441.97

21175

CONTROL UNIT-ELECTRONIC

21175-0151

$579.76

39145

TRIM-SEAL

39145-0037

Unavailable

92005

FITTING

92005-1387

$8.10

92022

WASHER,10.2X16X1

92022-1829

$4.31

92037

CLAMP,L=45

92037-1539

$5.00

92055

RING-O

92055-0120

$9.09

92055A

RING-O

92055-1630

$10.49

92065

GASKET,8.5X16X1

92065-023

$3.88

92072

BAND,L=460

92072-0073

$10.79

92093

SEAL,INTAKE DUCT

92093-0150

$7.88

92093A

SEAL

92093-1548

$10.06

92139

BUSHING,10X14X11

92139-0214

$8.05

92139A

BUSHING,10X13X11.9

92139-0254

$7.88

92145

SPRING,RETURN

92145-0443

$4.05

92152

COLLAR

92152-1332

$4.18

92153

BOLT,6X47

92153-0678

$3.07

92170

CLAMP

92170-1764

$11.48

92170A

CLAMP

92170-1925

$2.40
