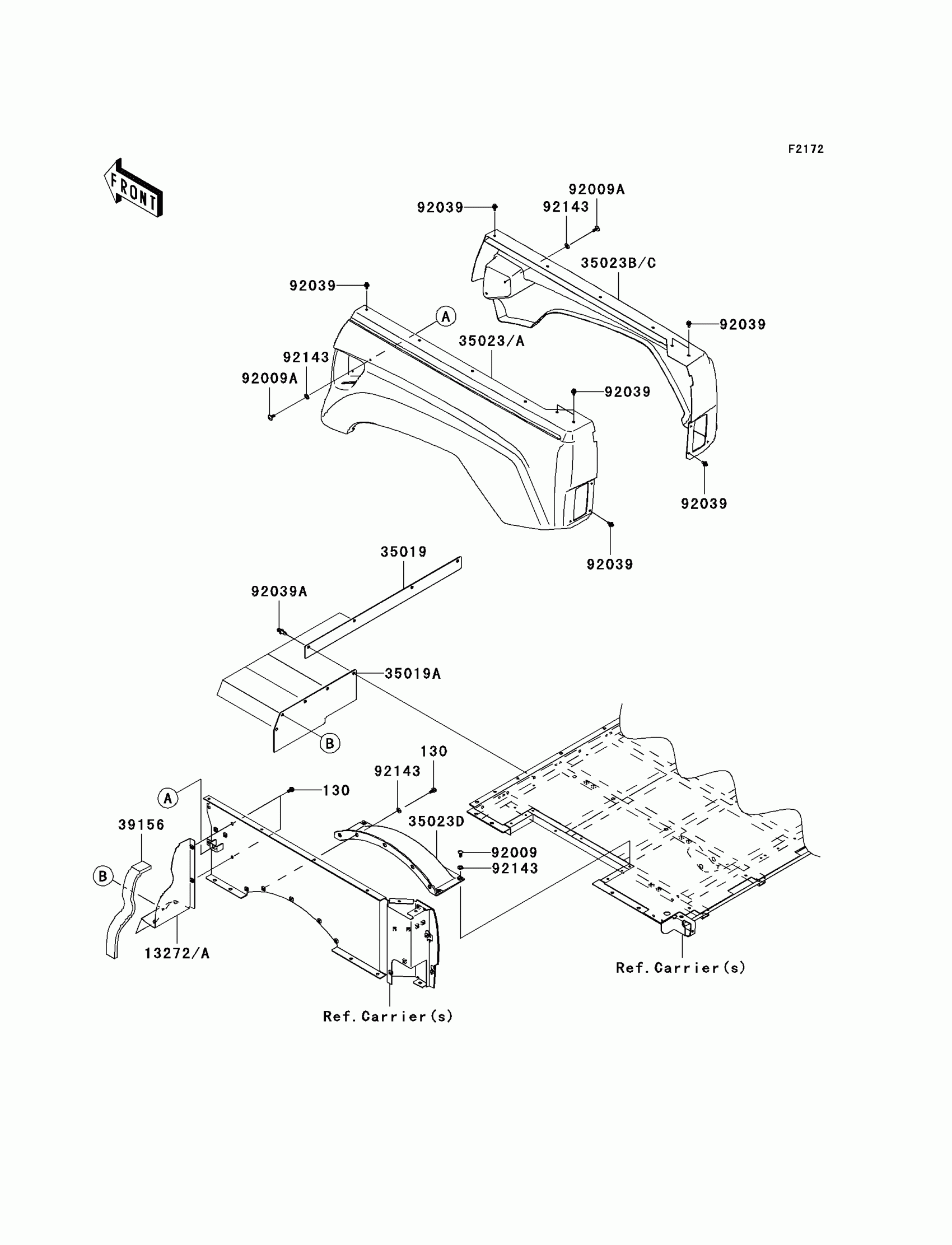

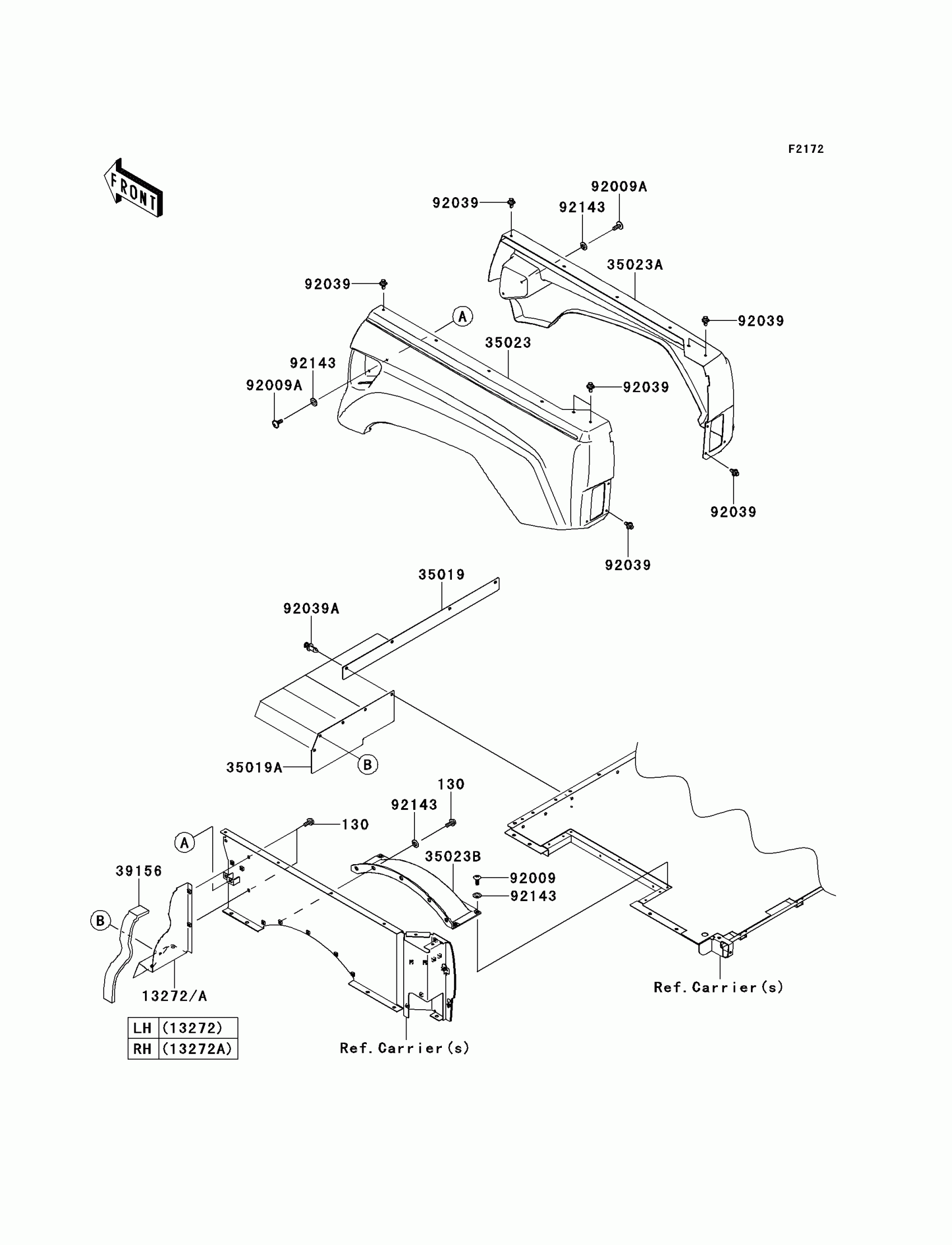

Kawasaki Teryx® 750 FI 4x4 Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$1.77

13272

PLATE,REAR FENDER,INNER,LH

13272-0688

$33.09

13272A

PLATE,REAR FENDER,INNER,RH

13272-0689

$33.09

35019

FLAP,FRONT CARRIER,CNT

35019-0084

$32.94

35019A

FLAP,CARRIER,FR

35019-0090

$45.26

35023

FENDER-REAR,RR,LH,W.GREEN

35023-0139-286

Unavailable

35023A

FENDER-REAR,RR,LH,BLACK

35023-0139-839

$88.52

35023B

FENDER-REAR,RR,RH,W.GREEN

35023-0140-286

$88.54

35023C

FENDER-REAR,RR,RH,BLACK

35023-0140-839

Unavailable

35023D

FENDER-REAR

35023-0151

$45.79

39156

PAD,REAR FENDER,INNER,LH&RH

39156-0519

$11.58

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-1227

$1.33

92039A

RIVET

92039-1229

$0.80

92143

COLLAR

92143-1087

$2.98
