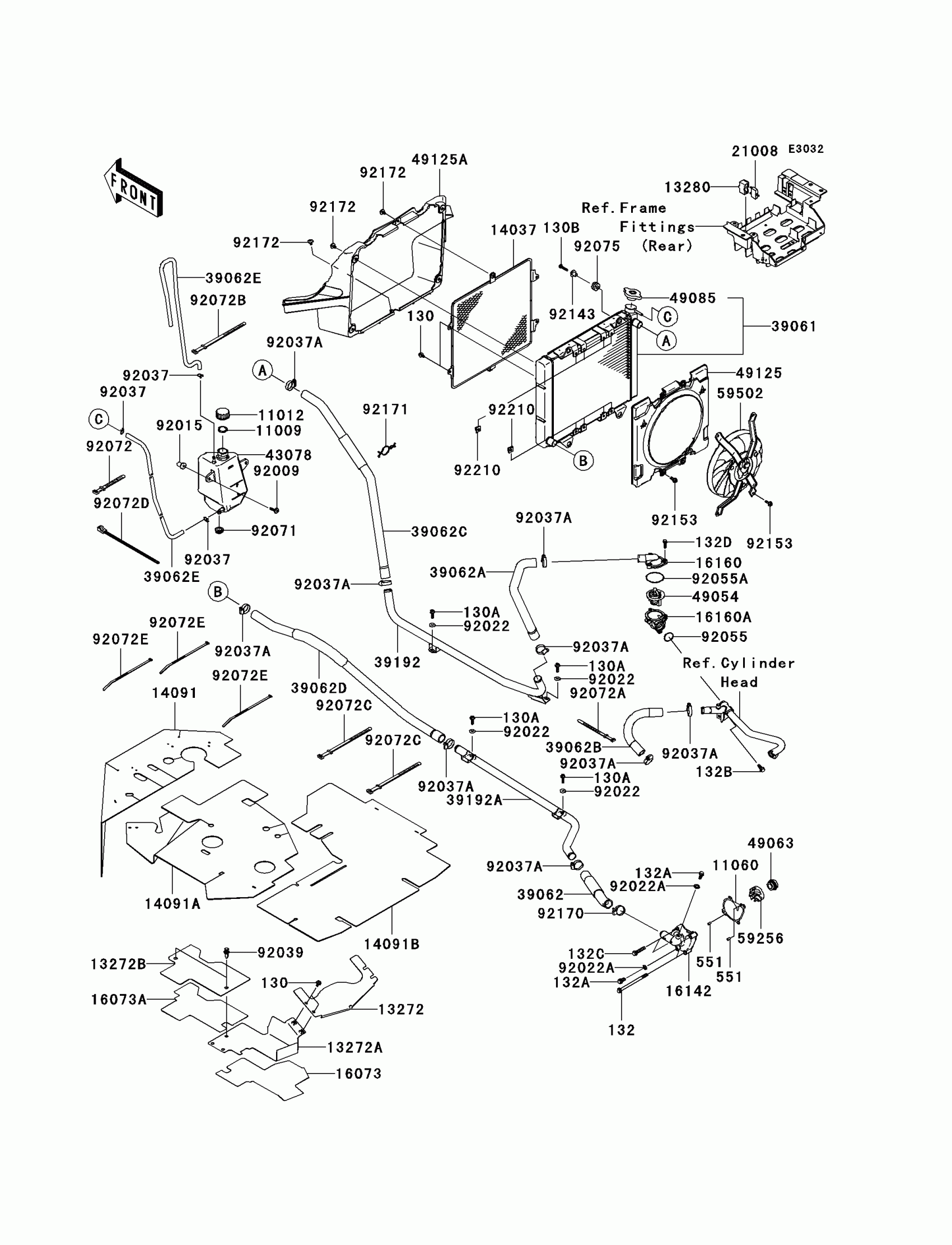

Kawasaki Teryx® 750 FI 4x4 NRA Outdoors Radiator Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,WATER PUMP
11060-1964
$7.58
13272
PLATE
13272-0729
$42.71
13272A
PLATE
13272-0738
$35.52
13272B
PLATE
13272-0739
Unavailable
13280
HOLDER,BREAKER
13280-0082
$5.60
14037
SCREEN
14037-0080
$126.16
14091
COVER
14091-1809
$21.94
14091A
COVER
14091-1810
$25.84
14091B
COVER
14091-1811
$21.94
16073
INSULATOR
16073-0110
$15.16
16073A
INSULATOR
16073-0111
$12.42
16142
COVER-PUMP,WATER
16142-0002
$83.83
16160
BODY,THERMOSTAT,UPP
16160-0046
$68.33
16160A
BODY,THERMOSTAT,LWR
16160-0189
$79.78
21008
BREAKER,RAD.FAN,12A
21008-0006
$32.35
39061
RADIATOR-ASSY
39061-0173
$487.89
39062
HOSE-COOLING,RAD.-W/P
39062-0174
$11.06
39062A
HOSE-COOLING,THERMO-RH PIPE
39062-0177
$13.50
39062B
HOSE-COOLING,FR HEAD-THERMO
39062-0184
$13.50
39062C
HOSE-COOLING,RH PIPE-RAD.
39062-0209
$33.80
39062D
HOSE-COOLING,RAD.-LH PIPE
39062-0210
$33.80
39062E
HOSE-COOLING,5.5X10.5X730
39062-0242
$12.38
39192
PIPE-WATER,RH
39192-0106
$70.68
39192A
PIPE-WATER,LH
39192-0107
$70.68
43078
RESERVOIR
43078-0041
$54.40
49054
THERMOSTAT
49054-1055
$54.56
49063
SEAL-MECHANICAL
49063-1055
$20.06
49085
CAP-ASSY-PRESSURE
49085-0005
$45.60
49125
SHROUD
49125-0031
$34.86
49125A
SHROUD
49125-0032
$44.47
59256
IMPELLER
59256-1069
$21.38
59502
FAN-ASSY
59502-0039
$368.70
92009
SCREW,6X25
92009-1465
$3.92
92015
NUT,RUBBER,6MM
92015-1692
$7.34
92022
WASHER,6.5X16X2
92022-1342
$3.92
92022A
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
130
BOLT-FLANGED,6X10
130BB0610
$2.49
130A
BOLT-FLANGED,6X20
130BB0620
$0.46
130B
BOLT-FLANGED,6X25
130BB0625
$2.80
132
BOLT-FLANGED-SMALL,6X90
132BB0690
$6.83
132A
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
132B
BOLT-FLANGED-SMALL,6X14
132BD0614
$3.67
132C
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
132D
BOLT-FLANGED-SMALL,6X20
132E0620
$4.44
551
PIN-DOWEL,4X8
551A0408
$0.78
92039
RIVET
92039-1229
$1.19
92055
RING-O,22.1X2.4
92055-1081
$4.69
92055A
RING-O,44.7X2.4
92055-1279
$7.34
92071
GROMMET
92071-0020
$4.28
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=149
92072-031
$5.00
92072B
BAND,L=218
92072-032
$5.00
92072C
BAND,L=186
92072-056
$5.00
92072D
BAND,L=250
92072-1237
$2.14
92072E
BAND,L=292.1
92072-3509
Unavailable
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92143
COLLAR
92143-1353
$8.58
92153
BOLT
92153-0531
$2.61
92170
CLAMP
92170-1497
$16.83
92171
CLAMP
92171-1736
$5.92
92172
SCREW,6X10
92172-0005
$2.41
92210
NUT
92210-1323
$4.18
