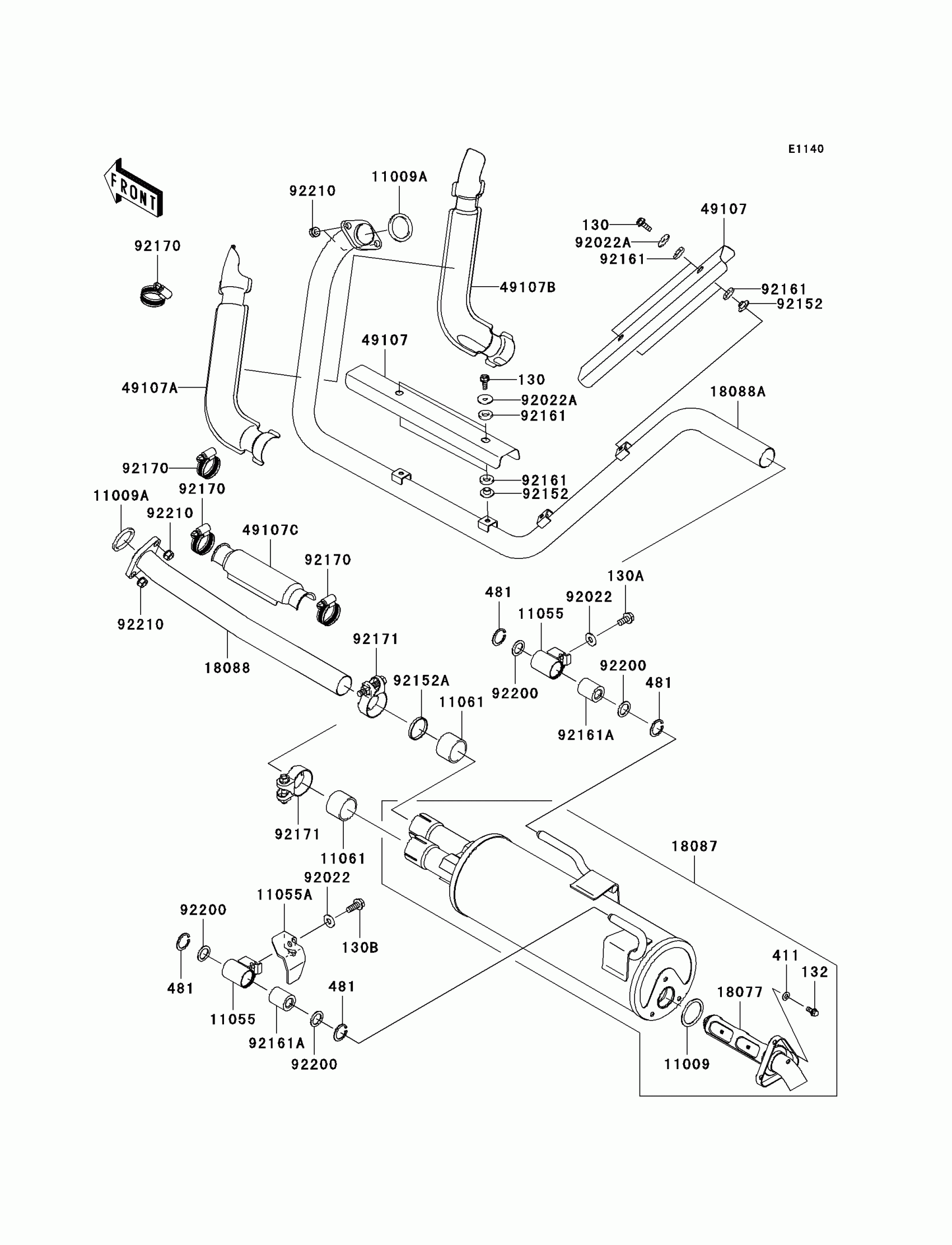

Kawasaki Teryx® 750 FI 4x4 NRA Outdoors Muffler(s) Diagram
#
Description
Price
130
BOLT-FLANGED,6X16
130BD0616
$3.89
130A
BOLT-FLANGED,8X16
130CB0816
$2.80
130B
BOLT-FLANGED,8X20
130CB0820
$3.13
132
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
411
WASHER-PLAIN,6MM
411S0600
$2.06
481
CIRCLIP-TYPE-C,25MM
481J2500
$3.07
11009
GASKET,EXHAUST PIPE HOLDER
11009-1856
$5.66
11009A
GASKET,EXHAUST HOLDER
11009-1894
$8.03
11055
BRACKET
11055-0499
Unavailable
11055A
BRACKET
11055-1374
$10.69
11061
GASKET,MUFFLER CONNECTING
11061-0360
$27.58
18077
ARRESTER-SPARK
18077-0027
$101.36
18087
MUFFLER
18087-0177
$799.98
18088
PIPE-EXHAUST,RR
18088-0430
$204.43
18088A
PIPE-EXHAUST,FR
18088-0490
$341.28
49107
COVER-EXHAUST PIPE,MIDDLE
49107-0118
$10.75
49107A
COVER-EXHAUST PIPE,FR,LH
49107-0130
$108.22
49107B
COVER-EXHAUST PIPE,FR,RH
49107-0131
$117.41
49107C
COVER-EXHAUST PIPE,RR
49107-0149
$32.12
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92022A
WASHER,6.5X22X1.6
92022-237
$3.92
92152
COLLAR
92152-0423
$3.90
92152A
COLLAR
92152-0741
$7.95
92161
DAMPER
92161-0319
$3.90
92161A
DAMPER
92161-0594
$49.03
92170
CLAMP
92170-1036
$8.72
92171
CLAMP
92171-1921
Unavailable
92200
WASHER,17X24.5X1.2
92200-0421
$2.73
92210
NUT,8MM
92210-1242
$2.41
