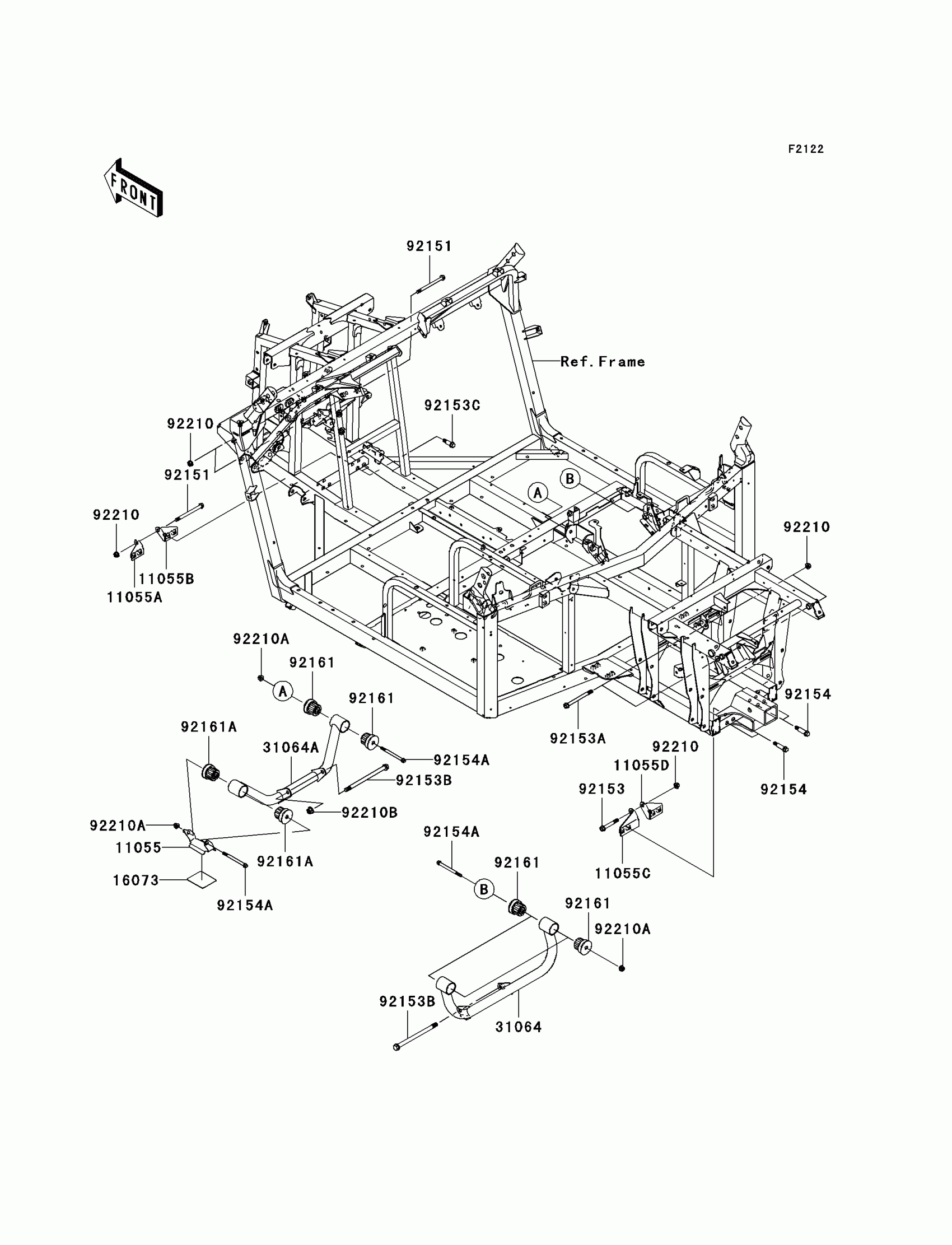

Kawasaki Teryx® 750 FI 4x4 NRA Outdoors Engine Mount Diagram

Description

Price

11055

BRACKET

11055-1127

$5.48

11055A

BRACKET,FRONT DIFF,LH

11055-1306

$12.32

11055B

BRACKET,FRONT DIFF,RH

11055-1307

$12.32

11055C

BRACKET,REAR DIFF,LH

11055-1308

$12.32

11055D

BRACKET,REAR DIFF,RH

11055-1309

$12.32

16073

INSULATOR

16073-0061

$5.92

31064

PIPE-COMP,RR

31064-0158

Unavailable

31064A

PIPE-COMP,FR

31064-0159

Unavailable

92151

BOLT,FLANGED,10X120

92151-1914

$19.22

92153

BOLT,FLANGED,10X70

92153-0871

$4.80

92153A

BOLT,FLANGED,10X120

92153-0872

$19.47

92153B

BOLT,FLANGED,12X190

92153-1272

$17.31

92153C

BOLT,FLANGED,10X38

92153-1742

$10.79

92154

BOLT,FLANGED,10X51.1

92154-0195

$11.16

92154A

BOLT,FLANGED,10X105

92154-0227

$9.83

92161

DAMPER

92161-0423

$13.84

92161A

DAMPER

92161-0571

$52.38

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210B

NUT,LOCK,FLANGED,12MM

92210-1150

$6.22
