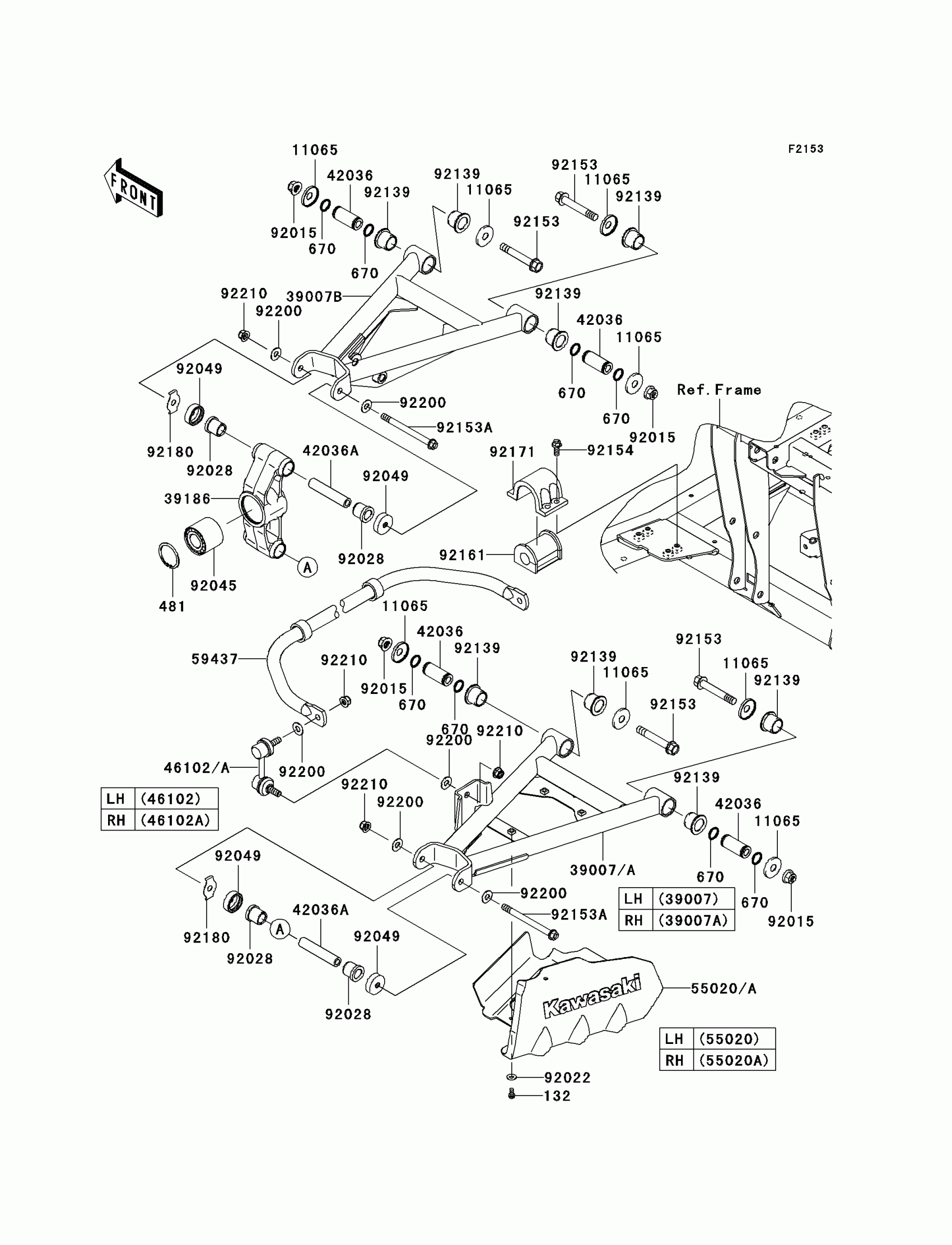

Kawasaki Teryx 750 FI 4X4 LE Sport Rear Suspension Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

481

CIRCLIP-TYPE-C,52MM

481J5200

$4.96

670

O RING,18MM

670B2018

$1.42

11065

CAP

11065-0253

$3.87

39007

ARM-SUSP,RR,LWR,LH

39007-0145

Unavailable

39007A

ARM-SUSP,RR,LWR,RH

39007-0146

Unavailable

39007B

ARM-SUSP,RR,UPP,LH&RH

39007-0155

$104.21

39186

KNUCKLE,RR,LH&RH

39186-0071

Unavailable

42036

SLEEVE

42036-0062

$23.84

42036A

SLEEVE,10X17X85.6

42036-1190

$29.63

46102

ROD,STABILIZER,LH

46102-0100

$48.58

46102A

ROD,STABILIZER,RH

46102-0101

$48.58

55020

GUARD,RR,LH

55020-0523

$35.36

55020A

GUARD,RR,RH

55020-0524

$35.36

59437

STABILIZER

59437-0008

$134.51

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,7X16X1.2

92022-1344

$3.92

92028

BUSHING

92028-1466

$10.28

92045

BEARING-BALL,DAC2552W-7CS31

92045-0102

Unavailable

92049

SEAL-OIL,KNUCKLE

92049-1198

$20.09

92139

BUSHING

92139-0231

$7.69

92153

BOLT,FLANGED,12X76.5

92153-1733

$7.75

92153A

BOLT,FLANGED,10X117

92153-1966

$5.92

92154

BOLT,FLANGED,8X20

92154-0100

$2.97

92161

DAMPER

92161-0724

$9.85

92171

CLAMP

92171-1695

$9.58

92180

SHIM

92180-0292

Unavailable

92200

WASHER,10.3X23X1.6

92200-2009

$1.35

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61
