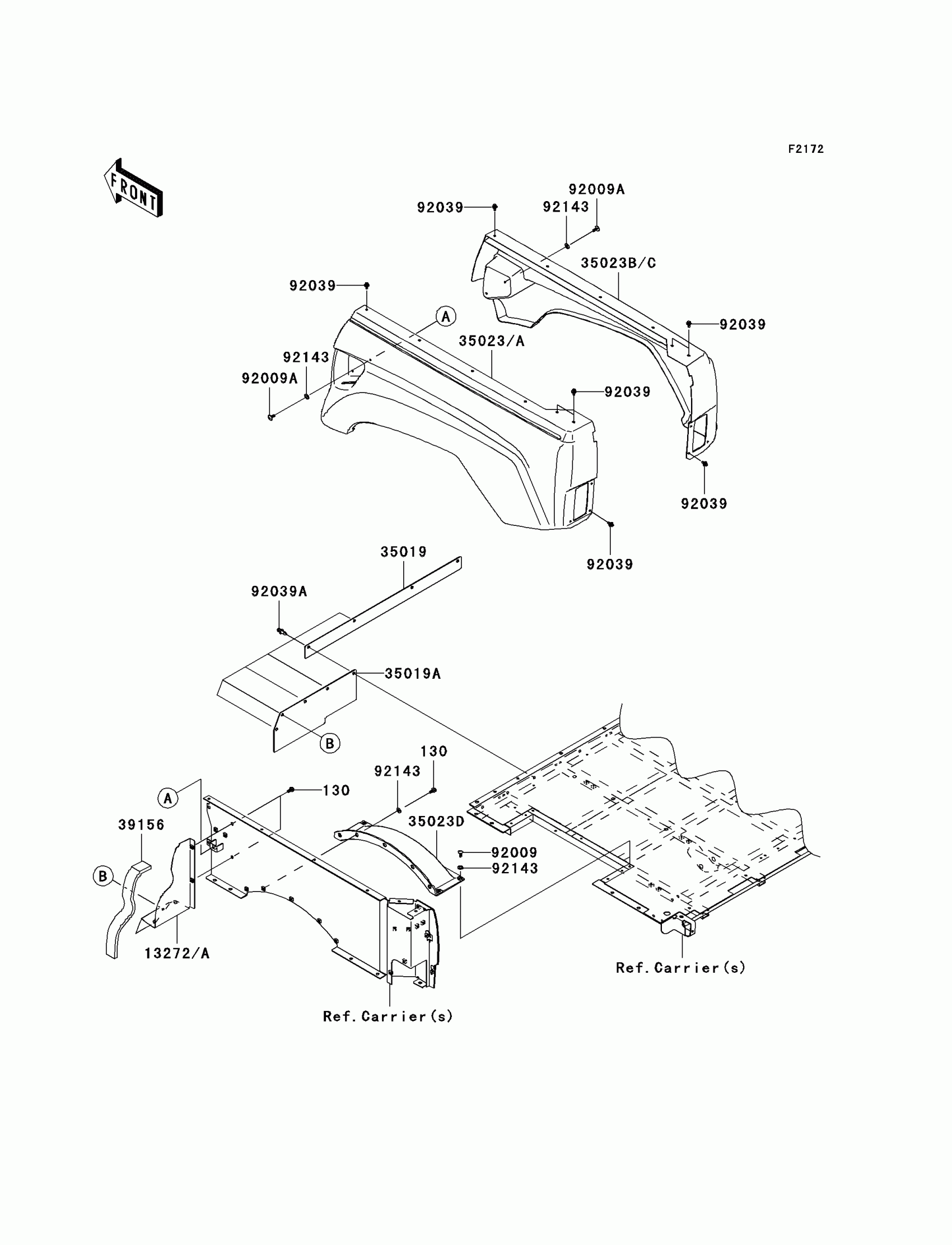

Kawasaki Teryx 750 FI 4X4 LE Sport Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BB0614

$2.49

13272

PLATE,REAR FENDER,INNER,LH

13272-0688

$32.49

13272A

PLATE,REAR FENDER,INNER,RH

13272-0689

$32.49

35019

FLAP,FRONT CARRIER,CNT

35019-0084

$32.35

35019A

FLAP,CARRIER,FR

35019-0090

$44.46

35023

FENDER-REAR,RR,LH,L.GREEN

35023-0139-290

$83.00

35023B

FENDER-REAR,RR,RH,L.GREEN

35023-0140-290

$83.00

35023D

FENDER-REAR

35023-0151

$44.97

39156

PAD,REAR FENDER,INNER,LH&RH

39156-0519

$12.10

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-1227

$1.81

92039A

RIVET

92039-1229

$1.19

92143

COLLAR

92143-1087

$4.31
