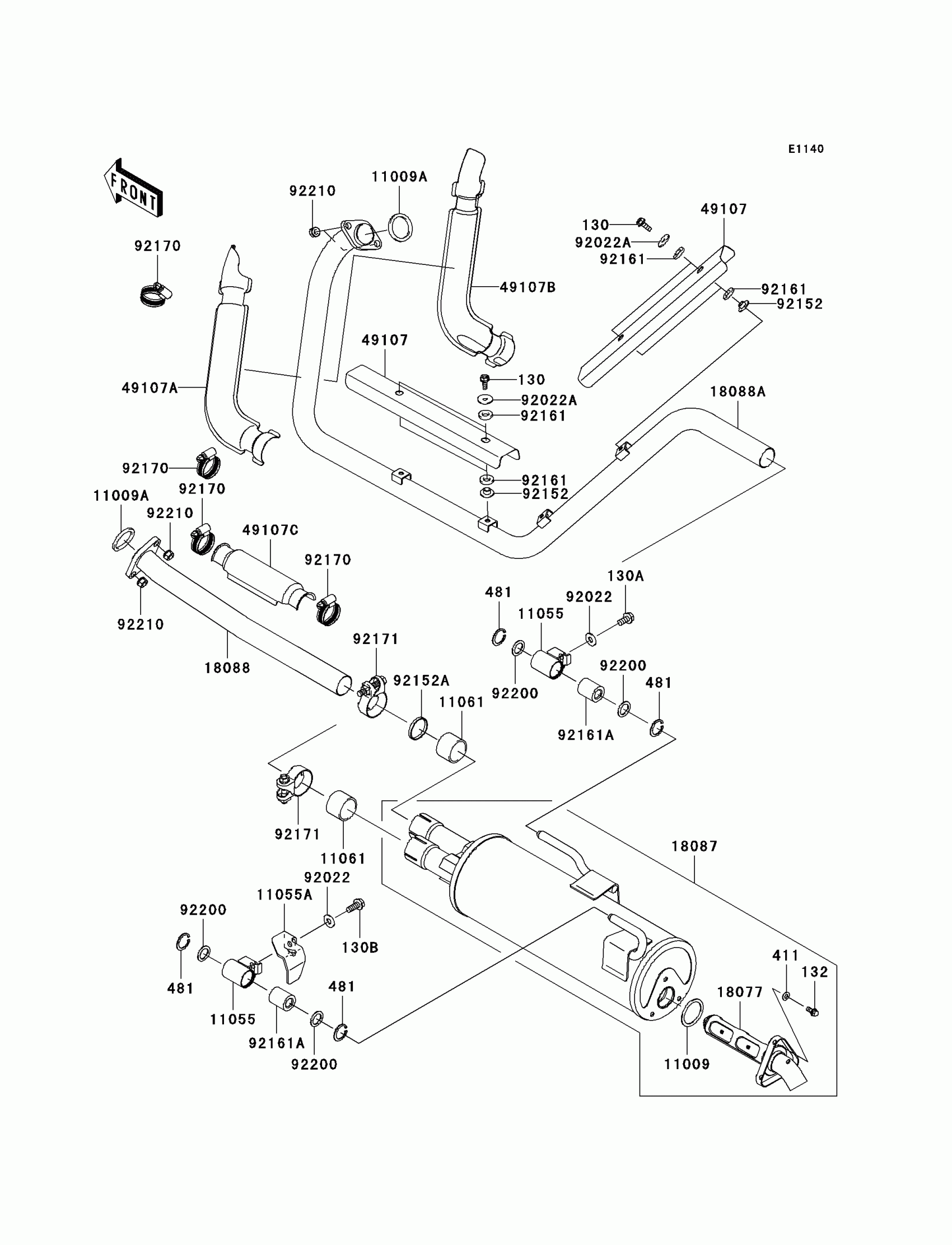

Kawasaki Teryx 750 FI 4X4 LE Sport Muffler(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X16

130BD0616

$3.89

130A

BOLT-FLANGED,8X16

130CB0816

$2.80

130B

BOLT-FLANGED,8X20

130CB0820

$3.13

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

411

WASHER-PLAIN,6MM

411S0600

$2.06

481

CIRCLIP-TYPE-C,25MM

481J2500

$3.07

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

$5.66

11009A

GASKET,EXHAUST HOLDER

11009-1894

$8.03

11055

BRACKET

11055-0499

Unavailable

11055A

BRACKET

11055-1374

$10.69

11061

GASKET,MUFFLER CONNECTING

11061-0360

$27.58

18077

ARRESTER-SPARK

18077-0027

$101.36

18087

MUFFLER

18087-0177

$799.98

18088

PIPE-EXHAUST,RR

18088-0430

$204.43

18088A

PIPE-EXHAUST,FR

18088-0490

$341.28

49107

COVER-EXHAUST PIPE,MIDDLE

49107-0118

$10.75

49107A

COVER-EXHAUST PIPE,FR,LH

49107-0130

$108.22

49107B

COVER-EXHAUST PIPE,FR,RH

49107-0131

$117.41

49107C

COVER-EXHAUST PIPE,RR

49107-0149

$32.12

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92022A

WASHER,6.5X22X1.6

92022-237

$3.92

92152

COLLAR

92152-0423

$3.90

92152A

COLLAR

92152-0741

$7.95

92161

DAMPER

92161-0319

$3.90

92161A

DAMPER

92161-0594

$49.03

92170

CLAMP

92170-1036

$8.72

92171

CLAMP

92171-1921

Unavailable

92200

WASHER,17X24.5X1.2

92200-0421

$2.73

92210

NUT,8MM

92210-1242

$2.41
