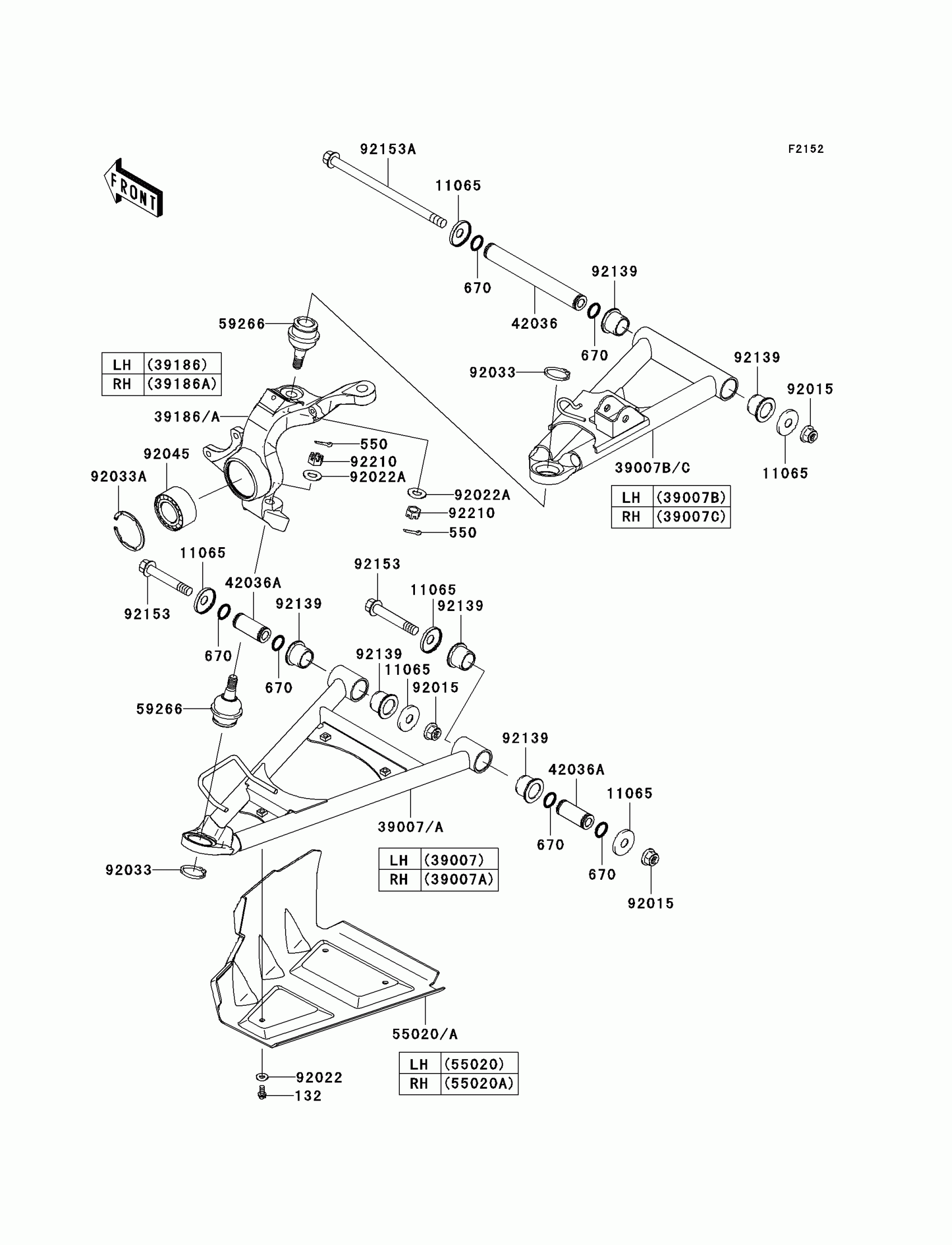

Kawasaki Teryx 750 FI 4X4 LE Sport Front Suspension Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

550

PIN-COTTER,3.0X25

550AA3025

$0.62

670

O RING,18MM

670B2018

$1.42

11065

CAP

11065-0253

$3.87

39007

ARM-SUSP,FR,LWR,LH

39007-0082

$104.21

39007A

ARM-SUSP,FR,LWR,RH

39007-0094

$104.21

39007B

ARM-SUSP,FR,UPP,LH

39007-0132

Unavailable

39007C

ARM-SUSP,FR,UPP,RH

39007-0133

Unavailable

39186

KNUCKLE,FR,LH

39186-0092

$201.66

39186A

KNUCKLE,FR,RH

39186-0093

$201.66

42036

SLEEVE

42036-0061

$46.79

42036A

SLEEVE

42036-0062

$23.84

55020

GUARD,FR,LH

55020-0308

$35.36

55020A

GUARD,FR,RH

55020-0309

$35.36

59266

JOINT-BALL

59266-0014

$72.37

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,7X16X1.2

92022-1344

$3.92

92022A

WASHER

92022-1831

$5.52

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$6.41

92033A

RING-SNAP,55MM

92033-1274

$9.43

92045

BEARING-BALL,DAC3055W-3CS31

92045-0123

Unavailable

92139

BUSHING

92139-0231

$7.69

92153

BOLT,FLANGED,12X76.5

92153-1733

$7.75

92153A

BOLT,FLANGED,12X213

92153-1958

$20.37

92210

NUT,CASTLE,12MM

92210-0395

$3.86
