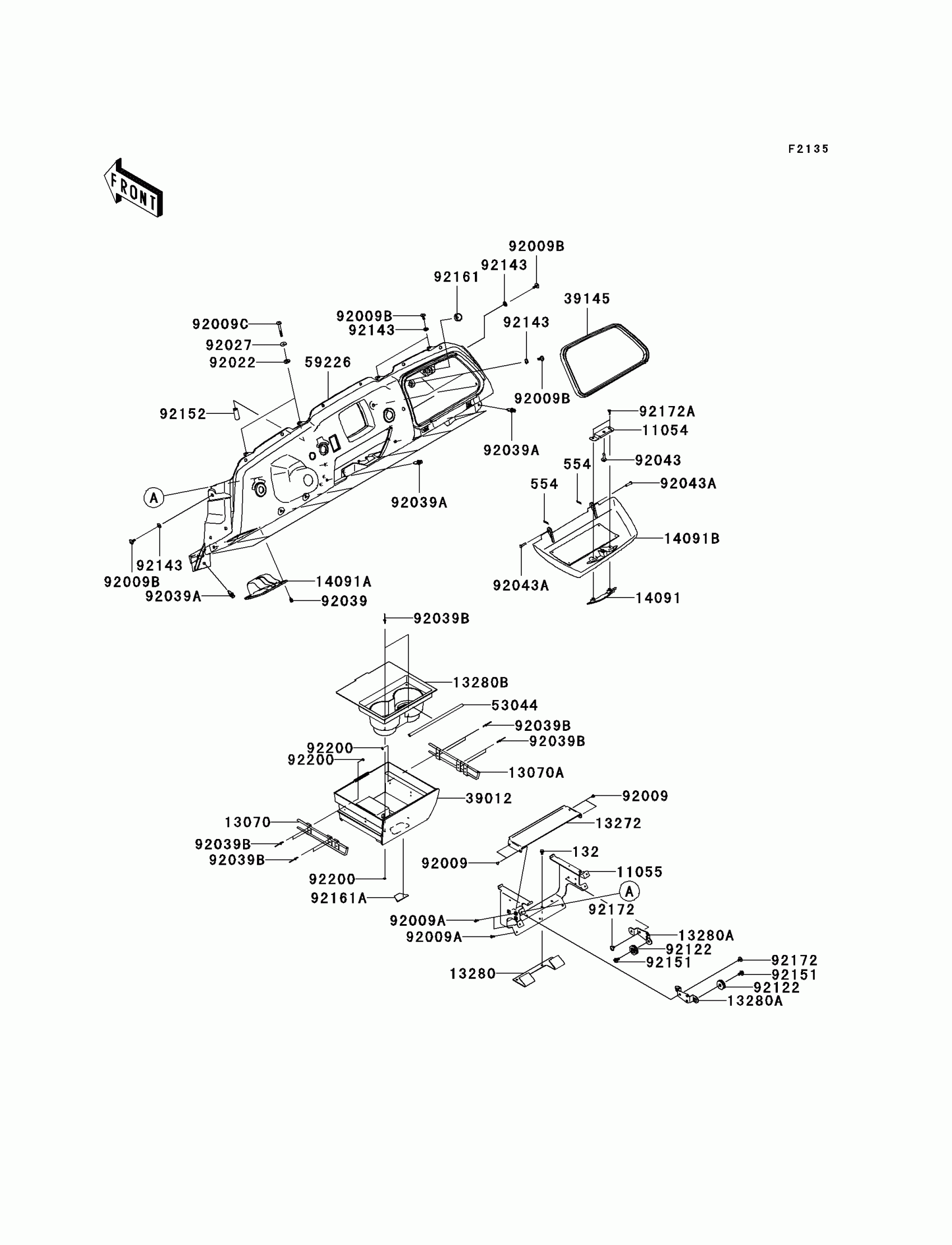

Kawasaki Teryx 750 FI 4X4 LE Sport Front Box Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$2.49

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95

11054

BRACKET

11054-1789

$4.65

11055

BRACKET

11055-0901

$41.45

13070

GUIDE,CUP HOLDER,LH

13070-0098

$38.17

13070A

GUIDE,CUP HOLDER,RH

13070-0099

$38.17

13272

PLATE,CUP HOLDER

13272-0446

$6.26

13280

HOLDER,LWR

13280-0210

$18.77

13280A

HOLDER

13280-0289

$13.04

13280B

HOLDER

13280-0296

$11.64

14091

COVER,STORAGE CAP,F.BLACK

14091-0700-6Z

$6.22

14091A

COVER,LH,F.BLACK

14091-0702-6Z

$9.49

14091B

COVER,STORAGE,F.BLACK

14091-0985-6Z

$29.98

39012

CASE-STORAGE,F.BLACK

39012-0024-6Z

$23.02

39145

TRIM-SEAL,L=940

39145-0029

$19.92

53044

TRIM,L=256.6

53044-0043

$12.87

59226

PANEL-CONTROL,F.BLACK

59226-0019-6Z

$148.03

92009

SCREW,TAPPING,4X8

92009-1155

$2.97

92009A

SCREW,TAPPING,4X12

92009-1444

$3.21

92009B

SCREW,6X16

92009-1621

Unavailable

92009C

SCREW,6X56

92009-1829

$2.58

92022

WASHER,10.5X20X1

92022-239

$3.92

92027

COLLAR,L=4.7

92027-1964

$7.34

92039

RIVET

92039-0046

$3.90

92039A

RIVET

92039-1229

$1.19

92039B

RIVET

92039-1231

$1.81

92043

PIN

92043-0138

$8.75

92043A

PIN,6X23

92043-0164

$4.69

92122

ROLLER

92122-0024

$4.67

92143

COLLAR

92143-1087

$4.31

92151

BOLT,FLANGED,6X13

92151-1703

$3.94

92152

COLLAR,7.95X15.88X40

92152-0777

$5.37

92161

DAMPER

92161-0568

$1.19

92161A

DAMPER,CUP HOLDER

92161-0653

$3.97

92172

SCREW,6X10

92172-0005

$2.41

92172A

SCREW,TAPPING,4X16

92172-0347

$1.78

92200

WASHER,3.5X8X1

92200-1251

$1.00
