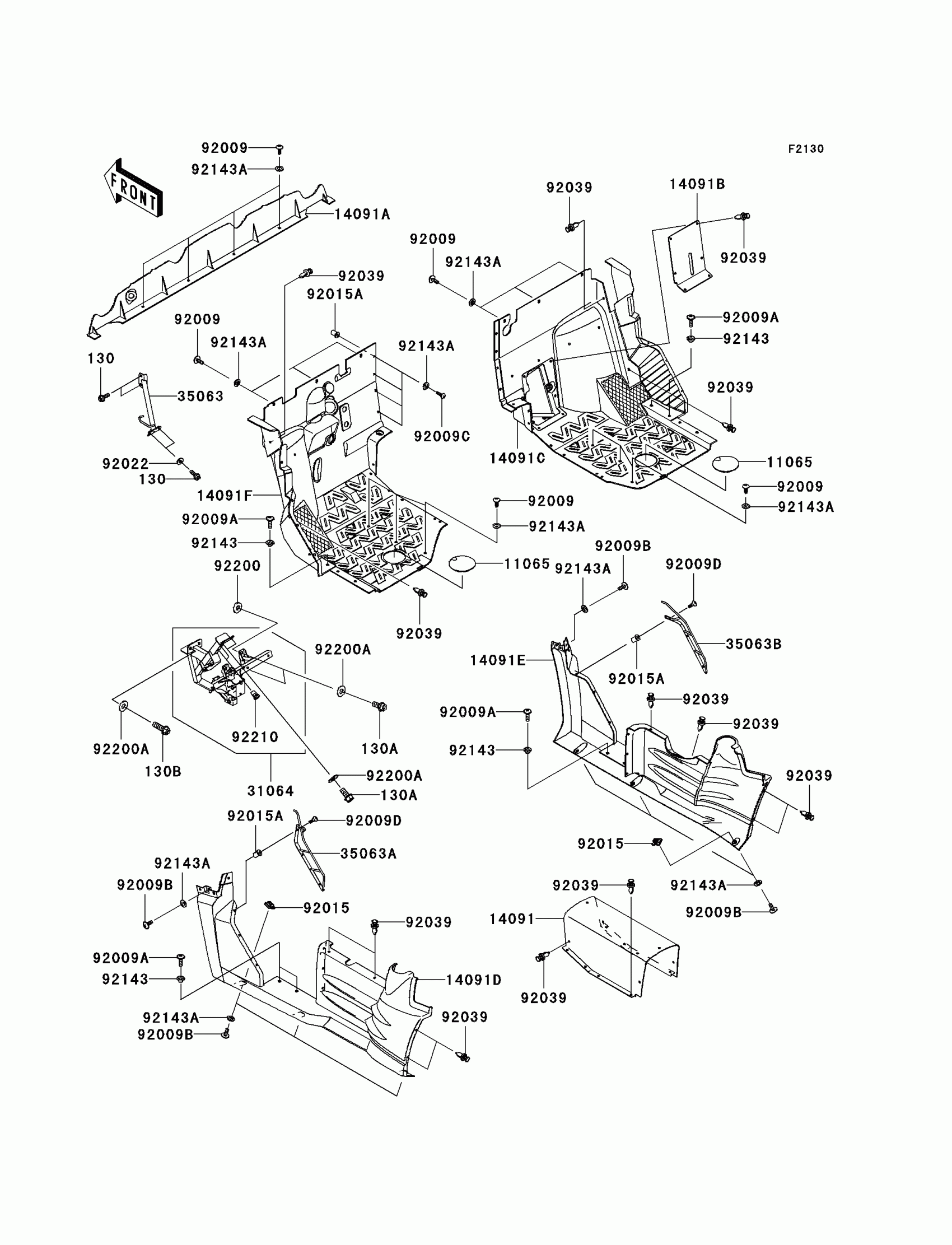

Kawasaki Teryx 750 FI 4X4 LE Sport Frame Fittings(Front) Diagram

Description

Price

130

BOLT-FLANGED,6X18

130BB0618

$1.33

130A

BOLT-FLANGED,10X20

130CA1020

$1.76

130B

BOLT-FLANGED,10X30

130CB1030

$5.98

11065

CAP

11065-0267

Unavailable

14091

COVER,CENTER,F.BLACK

14091-0696-6Z

$32.88

14091A

COVER

14091-0699

$79.40

14091B

COVER,F.BLACK

14091-0731-6Z

$11.07

14091C

COVER,FLOOR,RH

14091-1640

Unavailable

14091D

COVER,SIDE,LH,F.BLACK

14091-1686-6Z

Unavailable

14091E

COVER,SIDE,RH,F.BLACK

14091-1687-6Z

Unavailable

14091F

COVER,FLOOR,LH

14091-1755

Unavailable

31064

PIPE-COMP

31064-0172

$149.58

35063

STAY,MASTER CYLINDER

35063-0518

$34.67

35063A

STAY,SIDE COVER,LH

35063-0544

$37.51

35063B

STAY,SIDE COVER,RH

35063-0545

$42.86

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X22,BLACK

92009-1256

$1.96

92009B

SCREW,6X16

92009-1621

Unavailable

92009C

SCREW,5X18

92009-1655

$3.29

92009D

SCREW,5X20

92009-1934

$1.16

92015

NUT

92015-1487

$3.64

92015A

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6.2X15X1.2

92022-2373

$0.46

92039

RIVET

92039-1229

$0.80

92143

COLLAR

92143-1057

$3.81

92143A

COLLAR

92143-1087

$2.98

92200

WASHER,10X22X3.2

92200-0121

$1.97

92200A

WASHER,10.3X23X1.6

92200-2009

$1.04

92210

NUT,POP,6MM,L=15

92210-1397

$4.81
