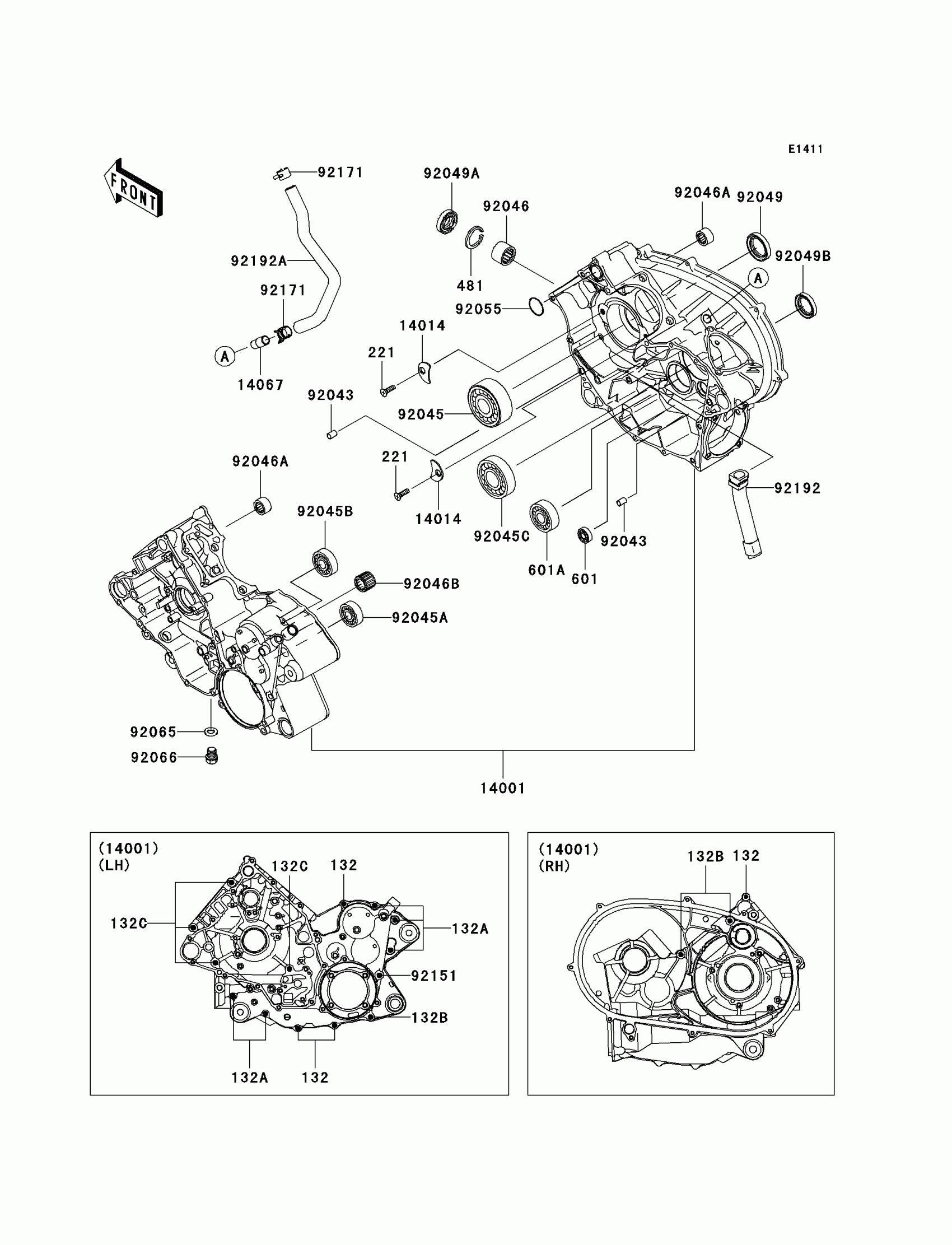

Kawasaki Teryx 750 FI 4X4 LE Sport Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X40

132BD0640

$5.25

132A

BOLT-FLANGED-SMALL,6X65

132BD0665

$4.76

132B

BOLT-FLANGED-SMALL,8X110

132BD08110

$5.22

132C

BOLT-FLANGED-SMALL,8X75

132BD0875

$3.13

221

SCREW-CSK-CROS,6X16

221AA0616

$0.59

481

CIRCLIP-TYPE-C,37MM

481J3700

$3.04

601

BEARING-BALL

601A6000

$12.89

601A

BEARING-BALL,#6304

601A6304

$14.55

14001

SET-CRANKCASE

14001-0153

Unavailable

14014

PLATE-POSITION

14014-0006

$14.71

14067

FITTING,BREATHER

14067-006

$21.09

92043

PIN,10X14

92043-1506

$3.32

92045

BEARING-BALL,5208X2-A-ECG45

92045-0012

$127.71

92045A

BEARING-BALL,#6004

92045-0076

$16.09

92045B

BEARING-BALL,6303LUA

92045-0091

Unavailable

92045C

BEARING-BALL,6306SH2

92045-1190

$40.80

92046

BEARING-NEEDLE

92046-0022

$24.97

92046A

BEARING-NEEDLE,TA202715ZE

92046-1118

$22.05

92046B

BEARING-NEEDLE

92046-1143

Unavailable

92049

SEAL-OIL,TC 35X50X8

92049-1452

$13.75

92049A

SEAL-OIL,TCY 28X42X8

92049-1570

$17.31

92049B

SEAL-OIL,HTC 30X45X8

92049-1575

$16.41

92055

RING-O,25.7X2.4

92055-1136

$5.00

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92151

BOLT,8X110

92151-1689

$5.00

92171

CLAMP

92171-0329

$8.89

92192

TUBE,OIL RETURN

92192-0703

$24.10

92192A

TUBE,BREATHER

92192-0764

Unavailable
