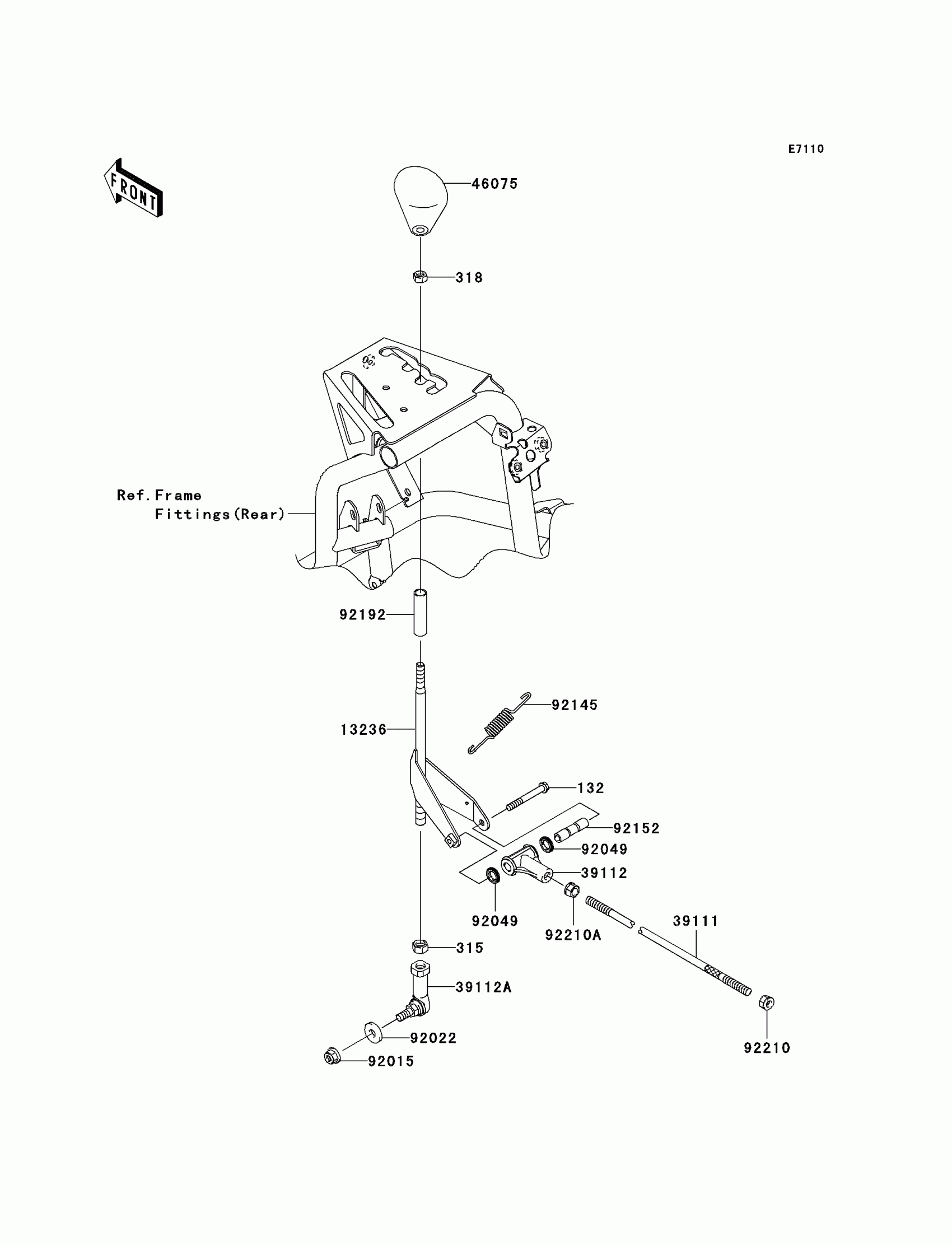

Kawasaki Teryx 750 FI 4X4 LE Sport Control Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X50

132BB0650

$4.76

315

NUT-HEX-FINE,10MM

315AA1000

$0.59

318

NUT-HEX-SMALL,8MM

318BA0800

$1.34

13236

LEVER-COMP

13236-0152

$60.06

39111

ROD-TIE

39111-0040

$17.79

39112

RODEND-TIE

39112-1079

$27.52

39112A

RODEND-TIE,CONTROL PIVOT

39112-1084

Unavailable

46075

GRIP,SHIFT

46075-0046

$30.65

92015

NUT,8MM

92015-1432

$6.57

92022

WASHER,8.5X22X3.2

92022-276

$9.97

92049

SEAL-OIL

92049-1458

$11.69

92145

SPRING

92145-0130

$4.55

92152

COLLAR,RODEND-TIE

92152-1222

$8.36

92192

TUBE,10X13X50

92192-0812

$2.35

92210

NUT,8MM

92210-1242

$2.41

92210A

NUT,LH,THREAD 8MM

92210-1284

$2.80
