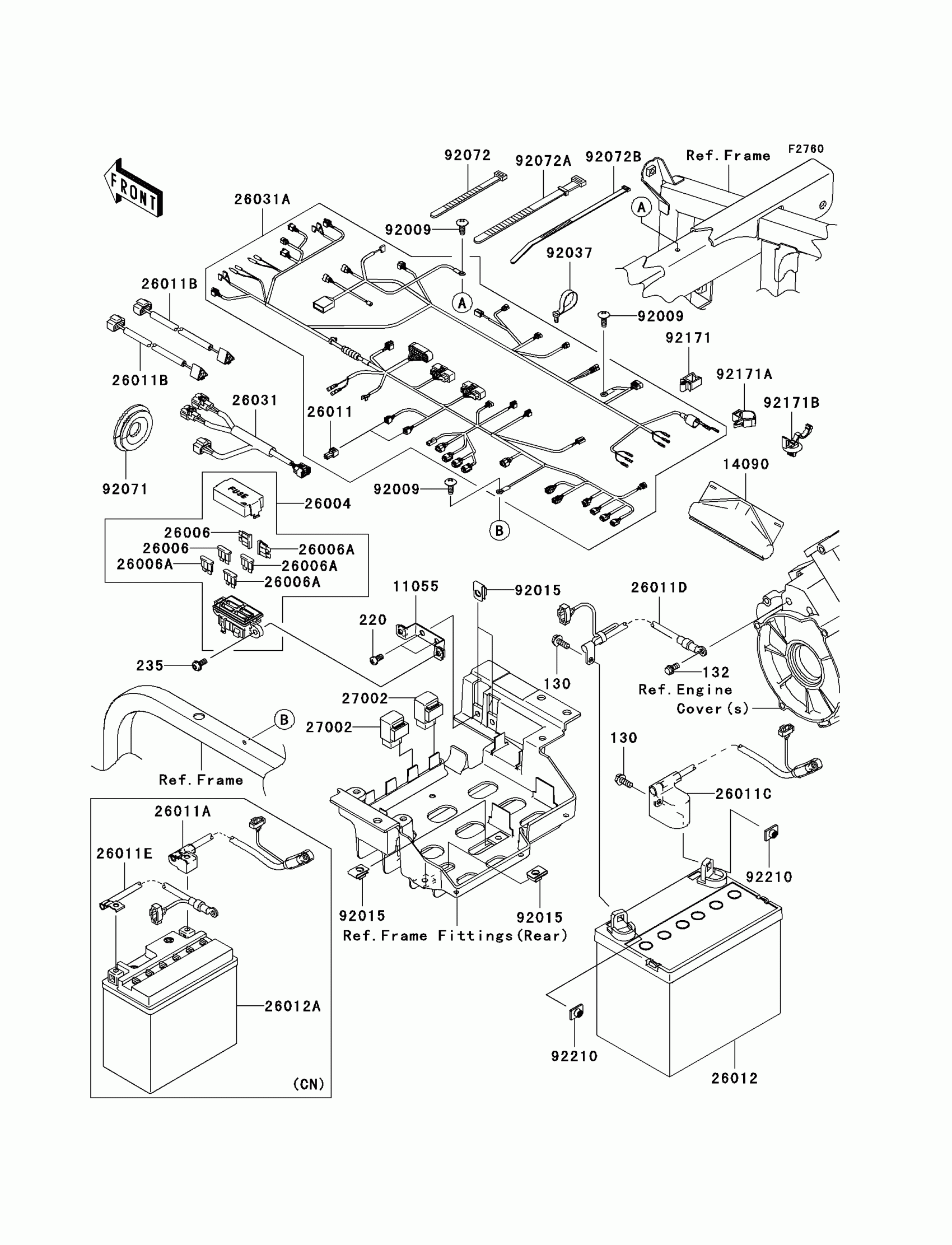

Kawasaki Teryx 750 FI 4X4 LE Sport Chassis Electrical Equipment Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

220

SCREW-PAN-CROS,6X12

220AA0612

$1.19

235

SCREW-PAN-WP-CROS,6X14

235AA0614

$4.18

11055

BRACKET,FUSE&CONTROL UNIT

11055-1391

$4.36

14090

COVER,COUPLER

14090-1331

$8.51

26004

FUSE-ASSY

26004-0016

$46.60

26006

FUSE,BLADE,30A,GREEN

26006-0004

$6.02

26006A

FUSE,BLADE,10A,RED

26006-0005

$6.02

26011

WIRE-LEAD

26011-0037

$13.02

26011B

WIRE-LEAD,HEAD LAMP

26011-0143

$25.34

26031

HARNESS,SUB

26031-0752

$84.03

26031A

HARNESS,MAIN

26031-0781

Unavailable

27002

RELAY-ASSY

27002-1062

$45.39

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,6MM

92015-1602

$7.34

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92071

GROMMET

92071-0030

$3.73

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=186

92072-056

$5.00

92072B

BAND,L=292.1

92072-3509

Unavailable

92171

CLAMP

92171-0290

$3.73

92171A

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171B

CLAMP

92171-0453

$3.54

130

BOLT-FLANGED,6X16

130BA0616

$1.20

26011A

WIRE-LEAD,BATTERY(+)

26011-0130

$32.40

26011C

WIRE-LEAD,BATTERY(+)

26011-0190

$31.80

26011D

WIRE-LEAD,BATTERY(-)

26011-0231

$35.60

26011E

WIRE-LEAD,BATTERY(-)

26011-0232

Unavailable

26012

BATTERY,12V 14AH

26012-0107

Unavailable

26012A

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

Unavailable

92210

NUT,PLATE,6MM

92210-1352

$2.41
