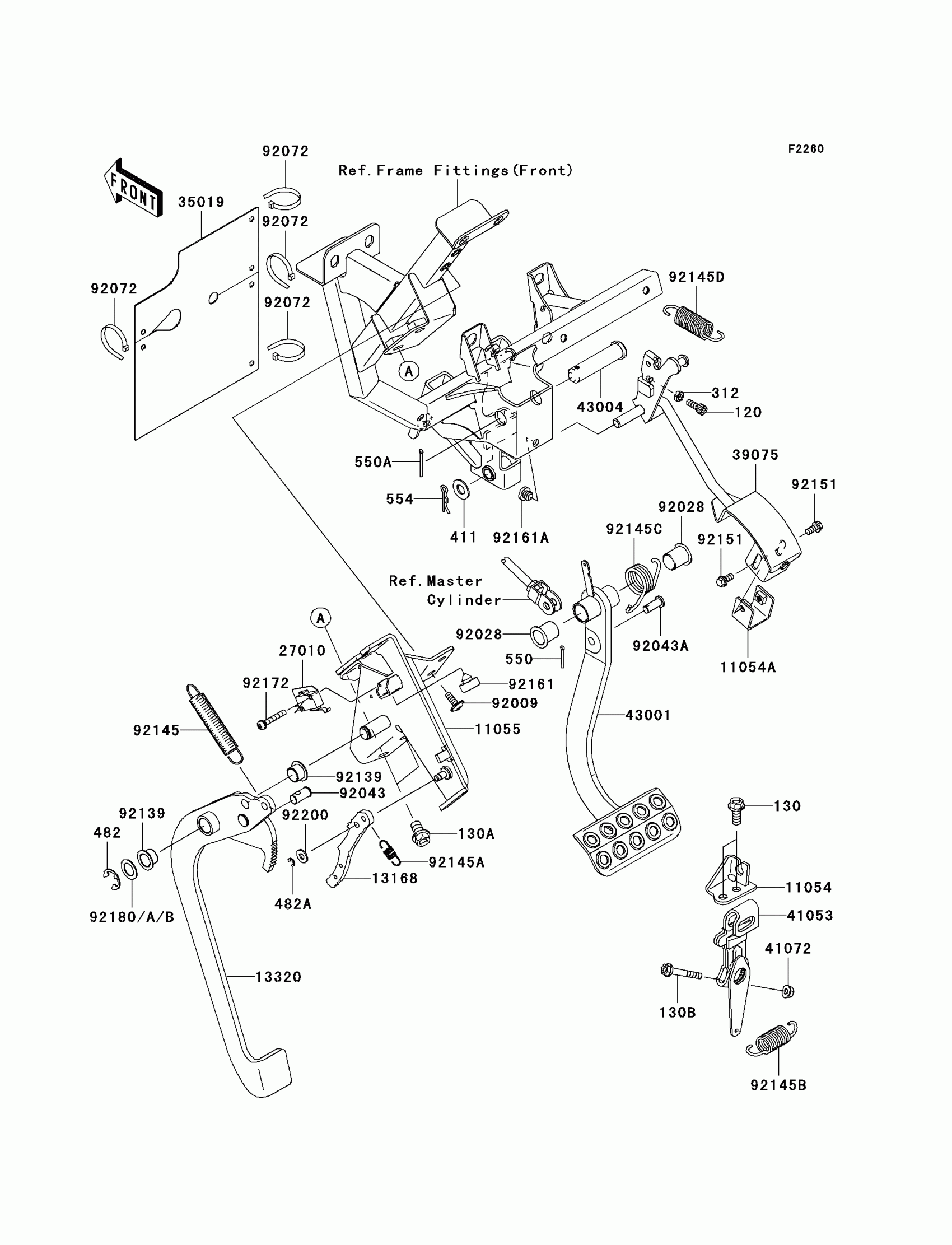

Kawasaki Teryx 750 FI 4X4 LE Sport Brake Pedal/Throttle Lever Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120CA0616

$1.77

130

BOLT-FLANGED,8X20

130BB0820

$0.71

130A

BOLT-FLANGED,10X16

130BB1016

$3.24

130B

BOLT-FLANGED,6X40

130CA0640

$2.29

312

NUT-HEX

312BA0600

$1.16

411

WASHER-PLAIN,10MM

411AA1000

$0.81

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

482A

CIRCLIP-TYPE-E,4MM

482J4000

$1.03

550

PIN-COTTER,2.5X18

550AA2518

$0.61

11054

BRACKET,BRAKE CABLE

11054-0933

$4.29

11054A

BRACKET

11054-1137

Unavailable

11055

BRACKET,BRAKE LEVER

11055-0279

$147.99

13168

LEVER

13168-0174

$29.64

13320

LEVER-ASSY,BRAKE PEDAL

13320-0012

$77.53

27010

SWITCH

27010-0084

$33.67

35019

FLAP

35019-0079

$11.03

39075

LEVER-THROTTLE

39075-0015

$35.58

41053

LEVER-BRAKE CAM

41053-0010

$56.83

41072

NUT,6MM

41072-007

$2.99

43001

LEVER-BRAKE,PEDAL

43001-0103

$43.77

43004

SHAFT-BRAKE

43004-1128

$16.64

92009

SCREW,6X16

92009-1621

Unavailable

92028

BUSHING

92028-1571

$10.27

92043

PIN

92043-0124

$7.88

92043A

PIN

92043-1039

$7.54

92072

BAND,L=188

92072-1239

$1.30

92139

BUSHING

92139-0182

$3.64

92145

SPRING

92145-0446

Unavailable

92145A

SPRING

92145-0447

$4.27

92145B

SPRING

92145-0563

$3.64

92145C

SPRING,BRAKE PEDAL RETURN

92145-0575

$7.90

92145D

SPRING

92145-0636

$10.05

92151

BOLT,6X12

92151-1997

$1.36

92161

DAMPER

92161-0590

$3.51

92161A

DAMPER

92161-1084

$1.89

92172

SCREW,3X20

92172-0419

$1.85

92180

SHIM,T=0.8

92180-0279

Unavailable

92180A

SHIM,T=1.0

92180-0281

Unavailable

92180B

SHIM,T=1.2

92180-0282

Unavailable

92200

WASHER,6.5X14.5X1.5

92200-3775

$1.30

550A

PIN-COTTER,2.5X25

550AA2525

$1.05

554

PIN-SNAP,10MM

554DA1000

$0.73
