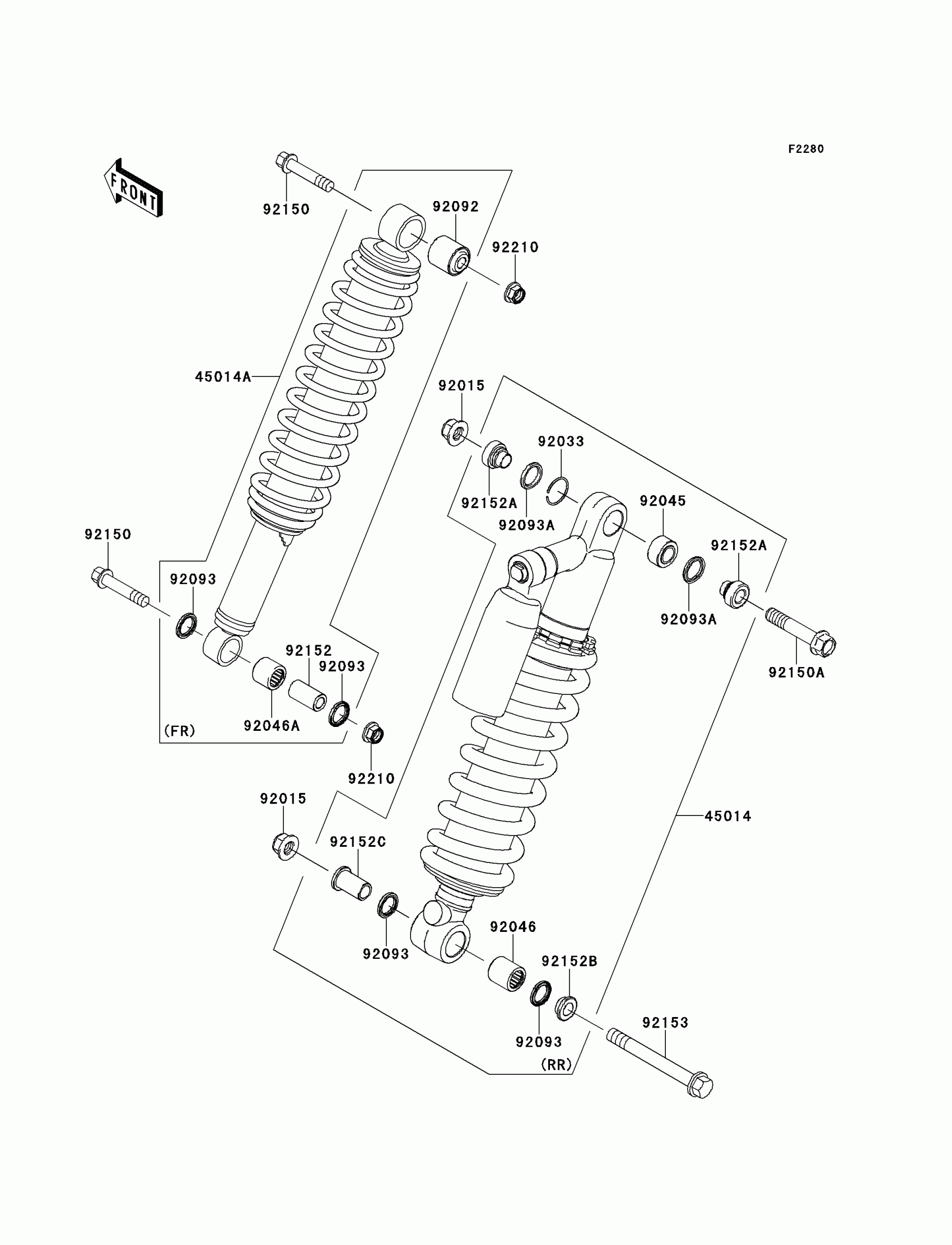

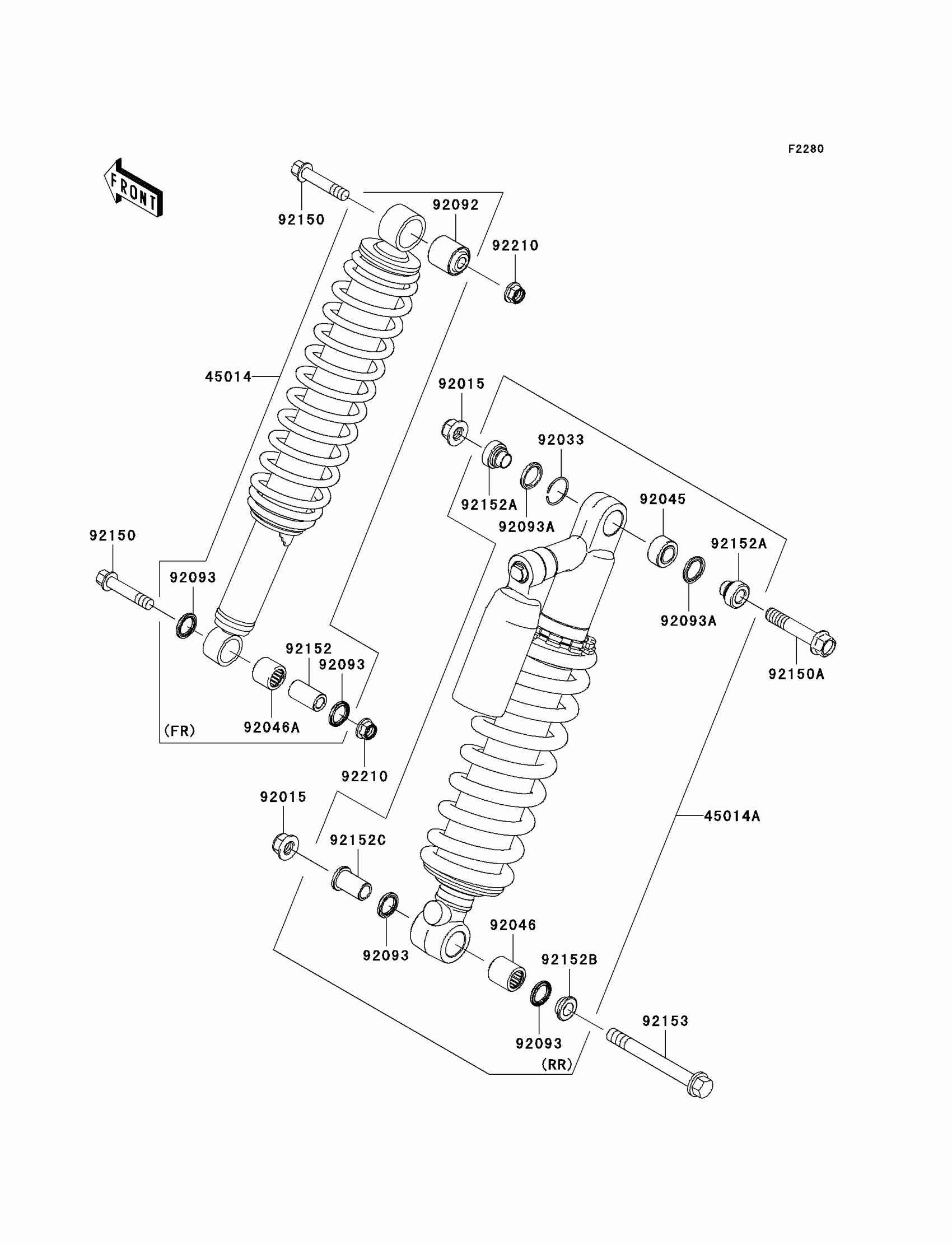

Kawasaki Teryx® 750 FI 4x4 LE Shock Absorber(s) Diagram

Description

Price

45014

SHOCKABSORBER,FR,BLACK

45014-0232-17D

$548.73

45014A

SHOCKABSORBER,RR,BLACK

45014-0262-17D

$886.84

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92033

RING-SNAP

92033-0054

$5.12

92045

BEARING-BALL

92045-0120

$12.76

92046

BEARING-NEEDLE

92046-0031

$20.08

92046A

BEARING-NEEDLE

92046-0032

$20.08

92092

BUSHING-RUBBER

92092-0014

$25.15

92093

SEAL

92093-0124

$8.76

92093A

SEAL

92093-0125

$8.76

92150

BOLT,FLANGED,10X50

92150-1125

$5.61

92150A

BOLT,FLANGED,12X63

92150-1258

$9.66

92152

COLLAR

92152-0635

$16.66

92152A

COLLAR

92152-0637

$16.66

92152B

COLLAR

92152-0681

$16.66

92152C

COLLAR

92152-0682

$16.66

92153

BOLT,FRANGED,12X108

92153-1741

$7.95

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85
