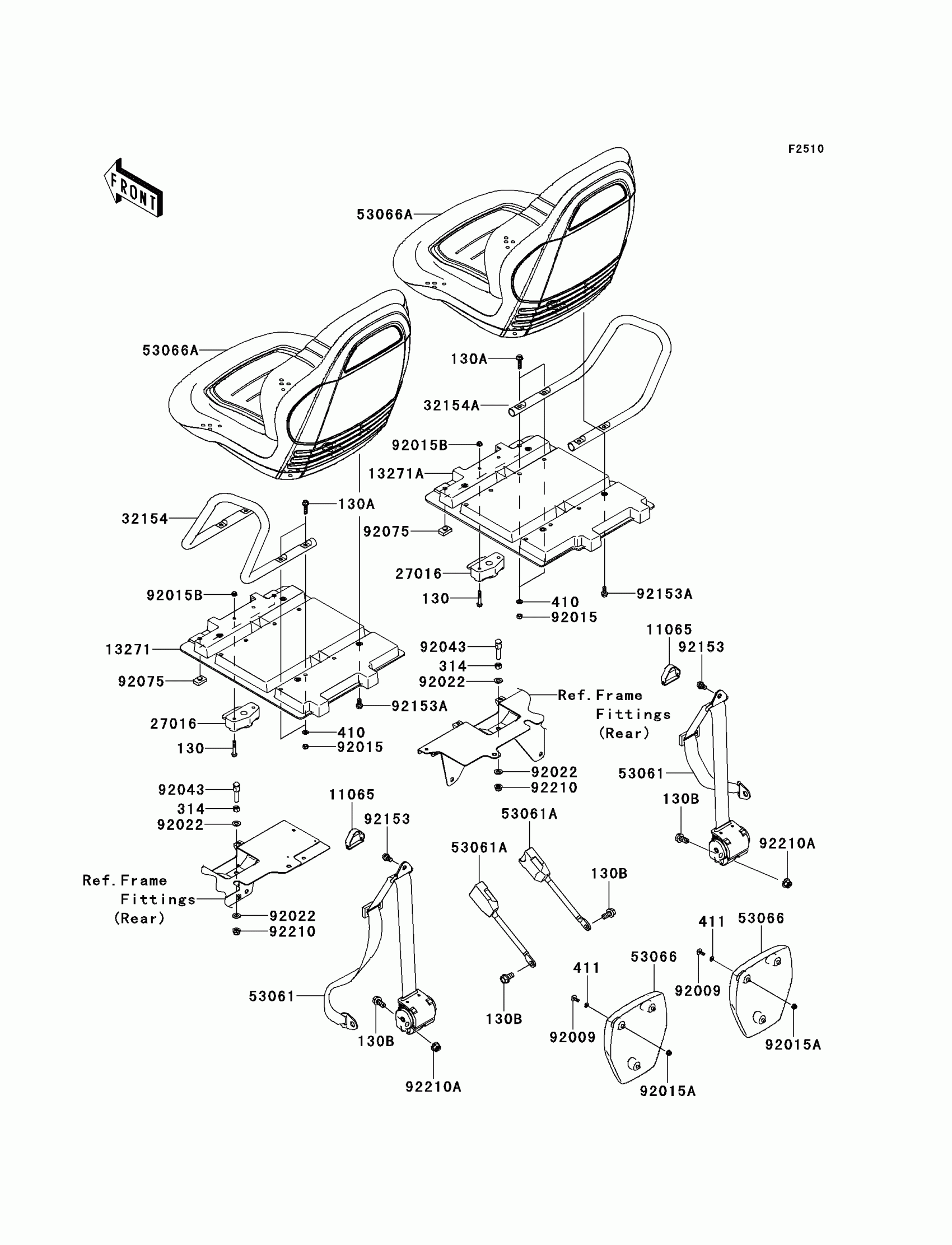

Kawasaki TERYX® 750 FI 4x4 LE (SGE) Seat Diagram

#

Description
Price

130

BOLT-FLANGED,6X40

130CA0640

$2.29

130A

BOLT-FLANGED,8X30

130CA0830

$0.86

130B

BOLT-FLANGED,12X25

130CA1225

$5.91

314

NUT-HEX-FINE,10MM

314AA1000

$0.63

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

411

WASHER-PLAIN,6MM

411AB0600

$0.95

11065

CAP

11065-0713

$2.56

13271

PLATE,SEAT,LWR,LH,F.BLACK

13271-0894-6Z

$84.29

13271A

PLATE,SEAT,LWR,RH,F.BLACK

13271-0895-6Z

$84.29

27016

LOCK-ASSY,SEAT

27016-3758

$100.25

32154

PIPE,SEAT PLATE,LH

32154-1249

$53.29

32154A

PIPE,SEAT PLATE,RH

32154-1250

Unavailable

53061

BELT-SEAT

53061-0014

$175.14

53061A

BELT-SEAT

53061-0015

$34.83

53066

SEAT-ASSY,PAD HEAD,BLACK

53066-0163-6D

$57.47

53066A

SEAT-ASSY

53066-0195

$408.03

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,8MM

92015-1124

$4.10

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92015B

NUT,FLANGED,6MM

92015-1699

$4.34

92022

WASHER,10.5X20X1.6

92022-1591

$3.88

92043

PIN

92043-0126

$29.37

92075

DAMPER,SEAT

92075-1153

$3.98

92153

BOLT,FLANGED,10X16

92153-1740

$3.71

92153A

BOLT

92153-1924

$1.02

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,12MM

92210-0603

$6.85
