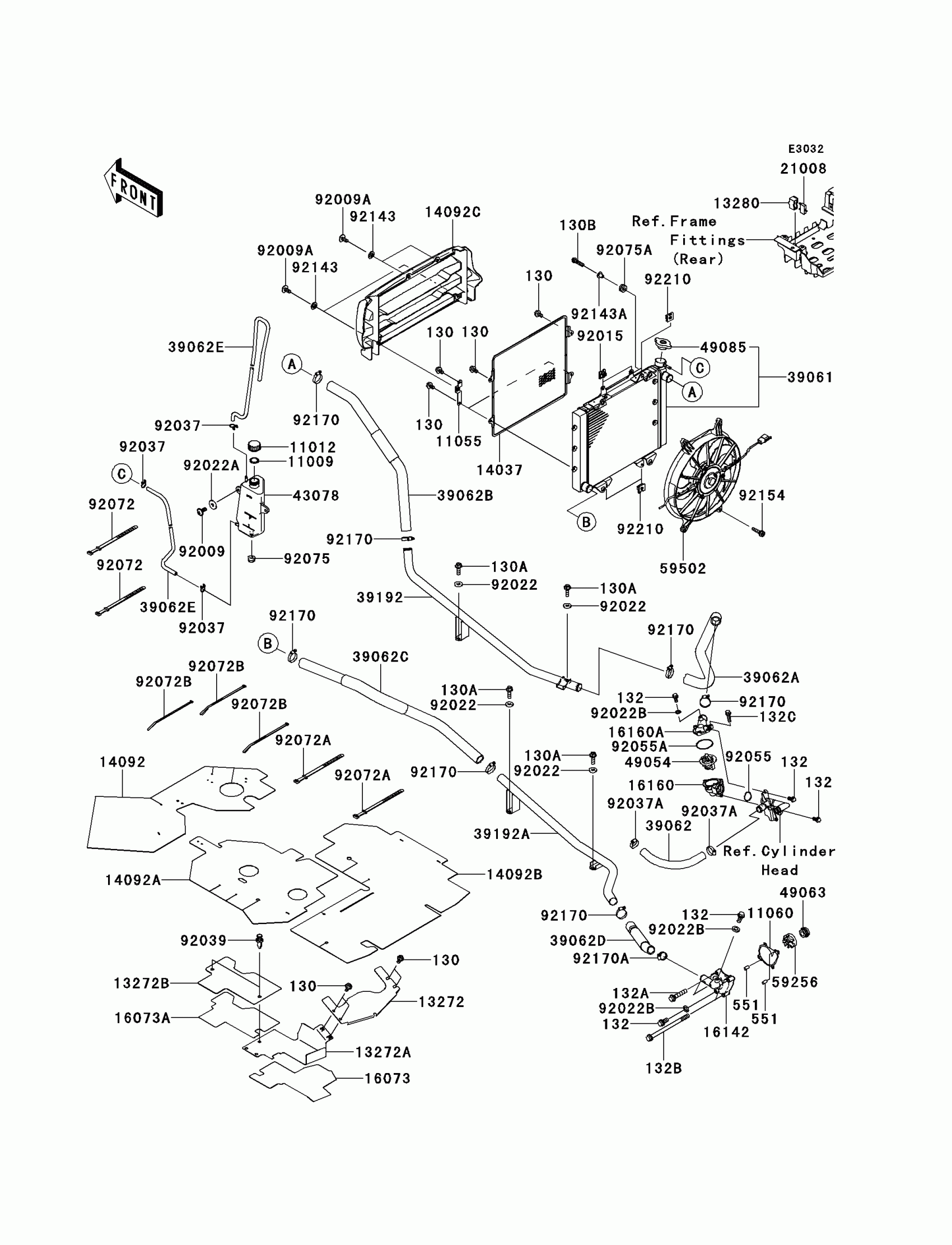

Kawasaki TERYX® 750 FI 4x4 LE (SGE) Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11055

BRACKET,RAD. COVER

11055-1953

$15.80

11060

GASKET,WATER PUMP

11060-1964

$5.79

13272

PLATE

13272-0729

$43.49

13272A

PLATE

13272-0738

$38.74

13272B

PLATE

13272-0739

Unavailable

13280

HOLDER,BREAKER

13280-0082

$4.92

14037

SCREEN

14037-0104

$118.61

14092

COVER

14092-0083

$49.14

14092A

COVER

14092-0084

$41.78

14092B

COVER

14092-0085

$53.61

14092C

COVER,RADIATOR,F.BLACK

14092-0086-6Z

$32.30

16073

INSULATOR

16073-0110

$14.97

16073A

INSULATOR

16073-0111

$12.36

16142

COVER-PUMP,WATER

16142-0002

$85.44

16160

BODY,THERMOSTAT,LWR

16160-0189

$71.04

16160A

BODY,THERMOSTAT,UPP

16160-0225

$68.51

21008

BREAKER,RAD. FAN,12A

21008-0008

$30.14

39061

RADIATOR-ASSY

39061-0180

$419.22

39062

HOSE-COOLING,FR HEAD-THERMO

39062-0316

$11.58

39062A

HOSE-COOLING,THERMO-RH PIPE

39062-0317

$12.12

39062B

HOSE-COOLING,RH PIPE-RAD.

39062-0318

$32.34

39062C

HOSE-COOLING,RAD.-LH PIPE

39062-0319

$32.34

39062D

HOSE-COOLING,RAD.-W/P

39062-0320

$10.00

39062E

HOSE-COOLING,5.5X10.5X400

39062-0324

$10.58

39192

PIPE-WATER,RH

39192-0121

$70.51

39192A

PIPE-WATER,LH

39192-0122

$70.51

43078

RESERVOIR

43078-0041

$55.39

49054

THERMOSTAT

49054-1055

$48.15

49063

SEAL-MECHANICAL

49063-1055

$16.33

49085

CAP-ASSY-PRESSURE

49085-0005

$40.29

59256

IMPELLER

59256-1069

$17.30

59502

FAN-ASSY

59502-0047

$368.52

92009

SCREW,6X16

92009-1621

Unavailable

92009A

SCREW,6X14

92009-1662

$2.99

92015

NUT

92015-1487

$3.64

92022

WASHER,6.5X16X2

92022-1342

$2.99

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92022B

WASHER,6.2X11X1

92022-304

$2.76

130

BOLT-FLANGED,6X10

130BB0610

$1.77

130A

BOLT-FLANGED,6X20

130BB0620

$0.47

130B

BOLT-FLANGED,6X25

130BB0625

$1.84

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

132A

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.79

132B

BOLT-FLANGED-SMALL,6X90

132BD0690

$3.12

132C

BOLT-FLANGED-SMALL,6X20

132E0620

Unavailable

551

PIN-DOWEL,4X8

551A0408

$0.68

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,COOLING HOSE

92037-1589

$14.01

92039

RIVET

92039-1229

$0.80

92055

RING-O,22.1X2.4

92055-1081

$3.57

92055A

RING-O,44.7X2.4

92055-1279

$5.61

92072

BAND,L=218

92072-032

$3.81

92072A

BAND,L=186

92072-056

$3.81

92072B

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER,RUBBER

92075-1123

$3.81

92075A

DAMPER RUBBER,RR FENR

92075-209

$3.57

92143

COLLAR

92143-1087

$2.98

92143A

COLLAR

92143-1353

$6.54

92154

BOLT

92154-0338

$10.66

92170

CLAMP,COOLING HOSE

92170-1284

$6.25

92170A

CLAMP

92170-1497

$12.75

92210

NUT

92210-1323

$3.19
