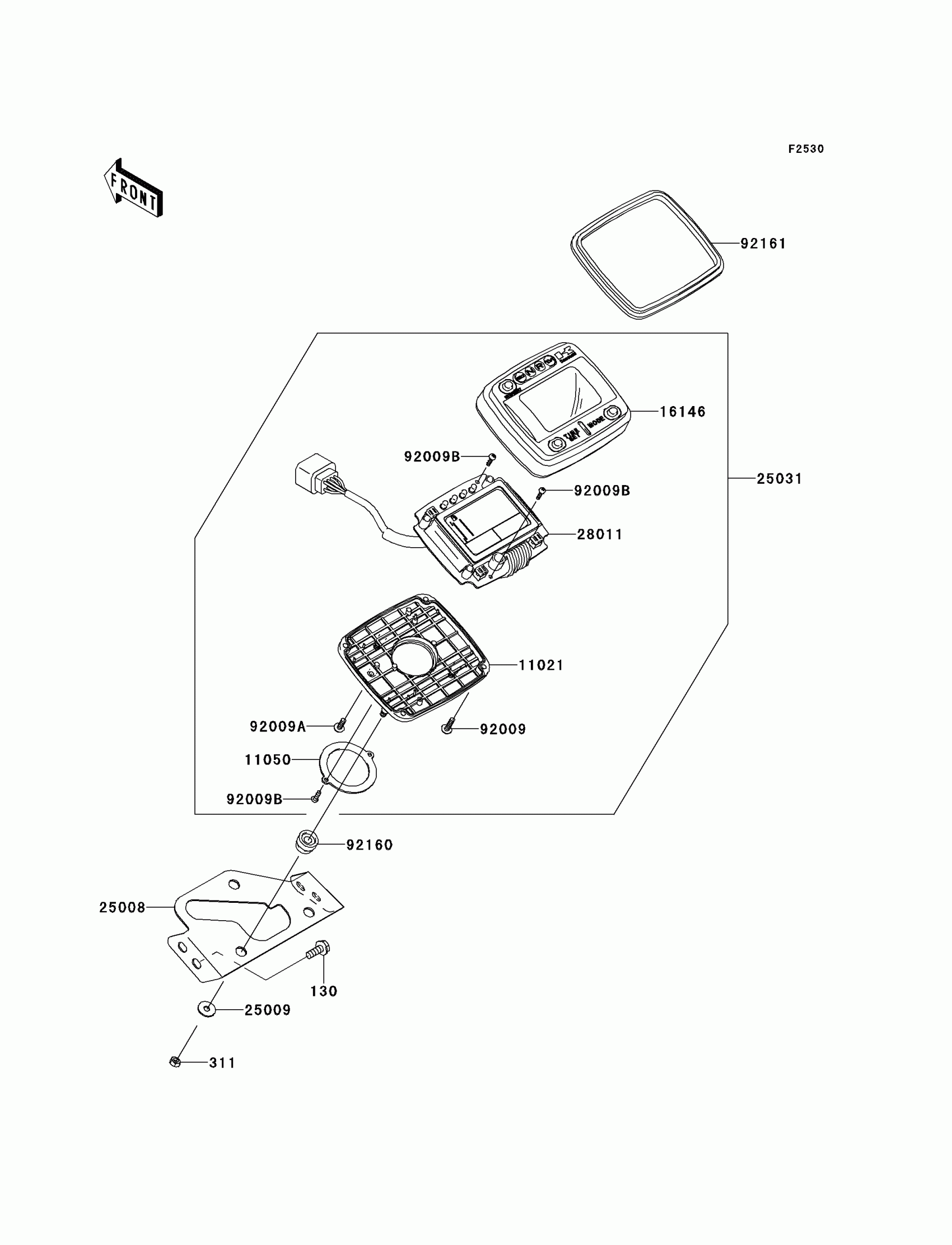

Kawasaki TERYX® 750 FI 4x4 LE (SGE) Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BA0616

$0.97

311

NUT-HEX,5MM

311AB0500

$0.46

11021

CASE-ASSY,METER,LWR

11021-0018

$134.61

11050

BRACKET,METER

11050-1932

$7.56

16146

COVER-ASSY,UPPER

16146-0011

$162.01

25008

BRACKET-METER

25008-0021

$13.56

25009

WASHER,5.2X16X1.2

25009-004

$2.88

25031

METER-ASSY,LCD,MPH

25031-0301

$495.96

28011

METER,LCD,MPH

28011-0161

$274.61

92009

SCREW,TAPPING,4X16

92009-1163

$3.13

92009A

SCREW,TAPPING,4X12

92009-1254

$3.68

92009B

SCREW,3X12

92009-1326

$3.20

92160

DAMPER

92160-1460

$4.32

92161

DAMPER,METER,UPP

92161-1114

$3.69
