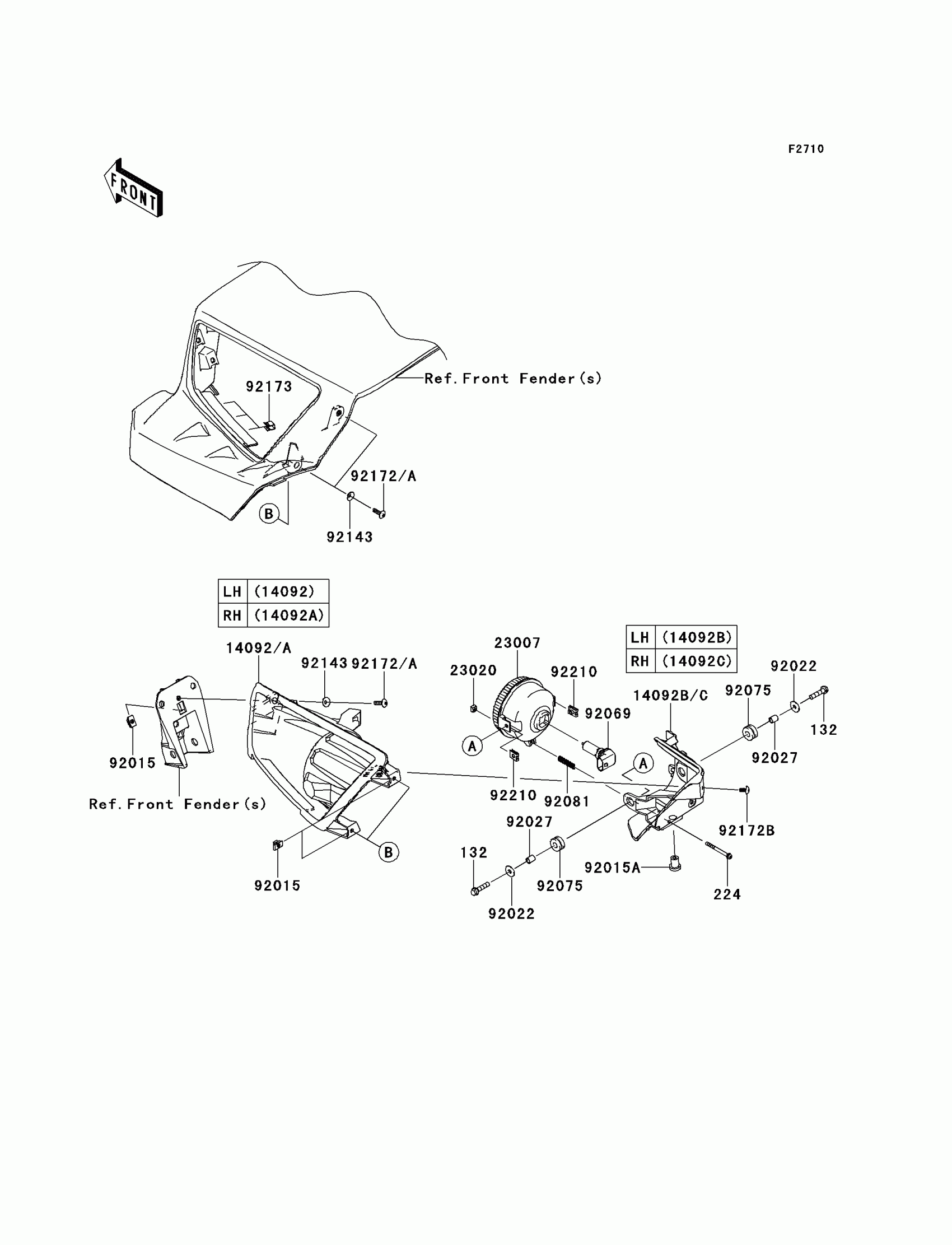

Kawasaki TERYX® 750 FI 4x4 LE (SGE) Headlight(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.81

14092

COVER,HEAD LAMP,FR,LH

14092-0054

$22.24

14092A

COVER,HEAD LAMP,FR,RH

14092-0055

$22.24

14092B

COVER,HEAD LAMP,RR,LH

14092-0056

$32.26

14092C

COVER,HEAD LAMP,RR,RH

14092-0057

$32.26

23007

LENS-COMP,HEAD LAMP

23007-0096

$50.83

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92015

NUT,5MM

92015-1627

$5.93

92015A

NUT,RUBBER,6MM

92015-1692

$7.34

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 35/35W

92069-0019

$15.75

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92143

COLLAR

92143-1087

$4.31

92172

SCREW,5X16

92172-0322

$2.15

92172B

SCREW,TAPPING,5X10

92172-1061

Unavailable

92173

CLAMP

92173-0104

$3.52

92210

NUT

92210-1125

$4.76
