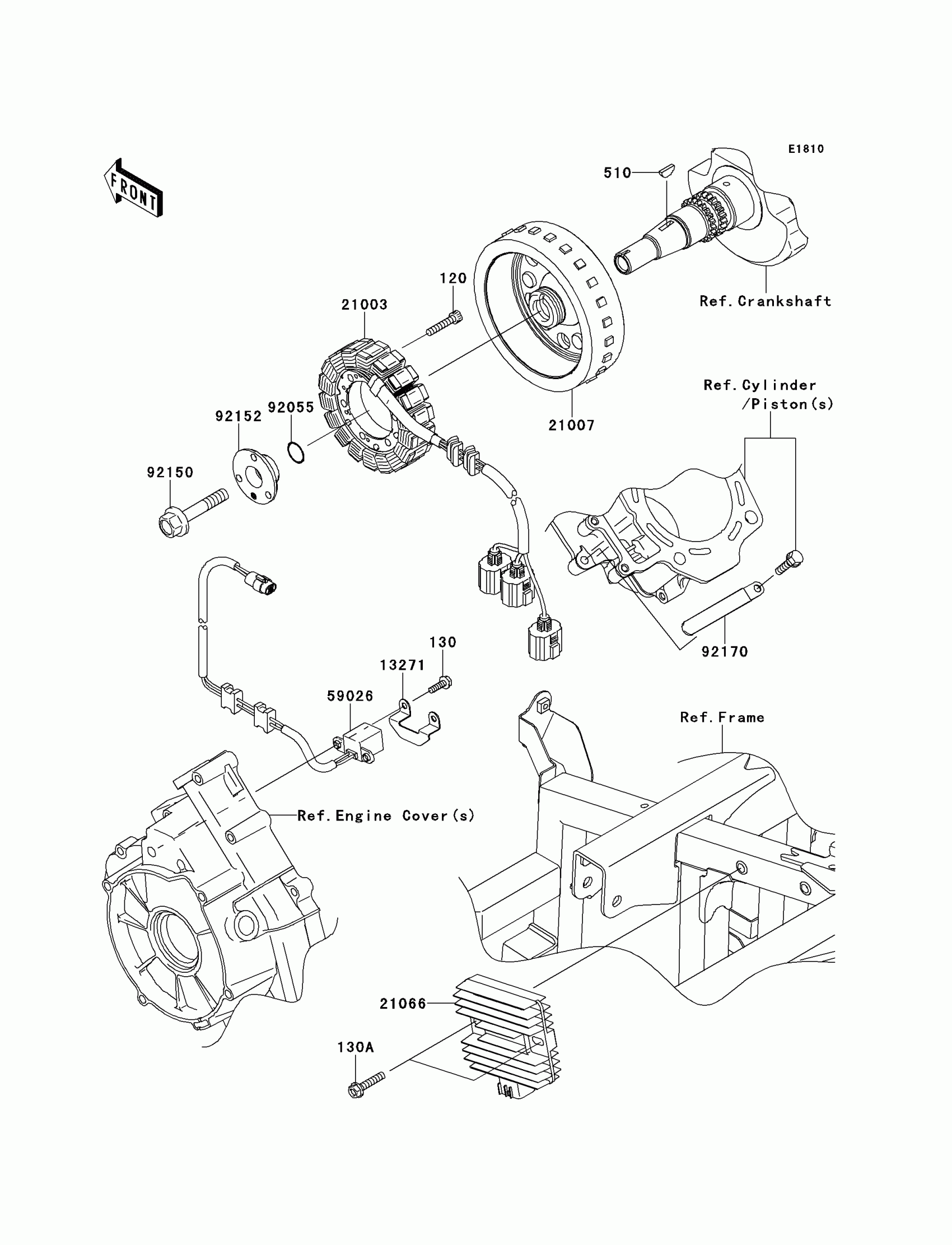

Kawasaki TERYX® 750 FI 4x4 LE (SGE) Generator Diagram

Description

Price

120

BOLT-SOCKET,6X30

120CB0630

$3.01

130

BOLT-FLANGED,5X16

130BA0516

$0.86

130A

BOLT-FLANGED,6X30

130BB0630

$4.43

510

KEY-WOODRUFF

510A4200

$2.96

13271

PLATE

13271-1369

$2.93

21003

STATOR

21003-0099

$578.81

21007

ROTOR

21007-0151

$614.15

21066

REGULATOR-VOLTAGE

21066-0030

$199.43

59026

COIL-PULSING

59026-1159

$110.15

92055

RING-O,19.8X2.2

92055-1215

$4.31

92150

BOLT,12X65

92150-1987

$11.82

92152

COLLAR,20X51X17

92152-1467

$19.26

92170

CLAMP

92170-1925

$2.40
