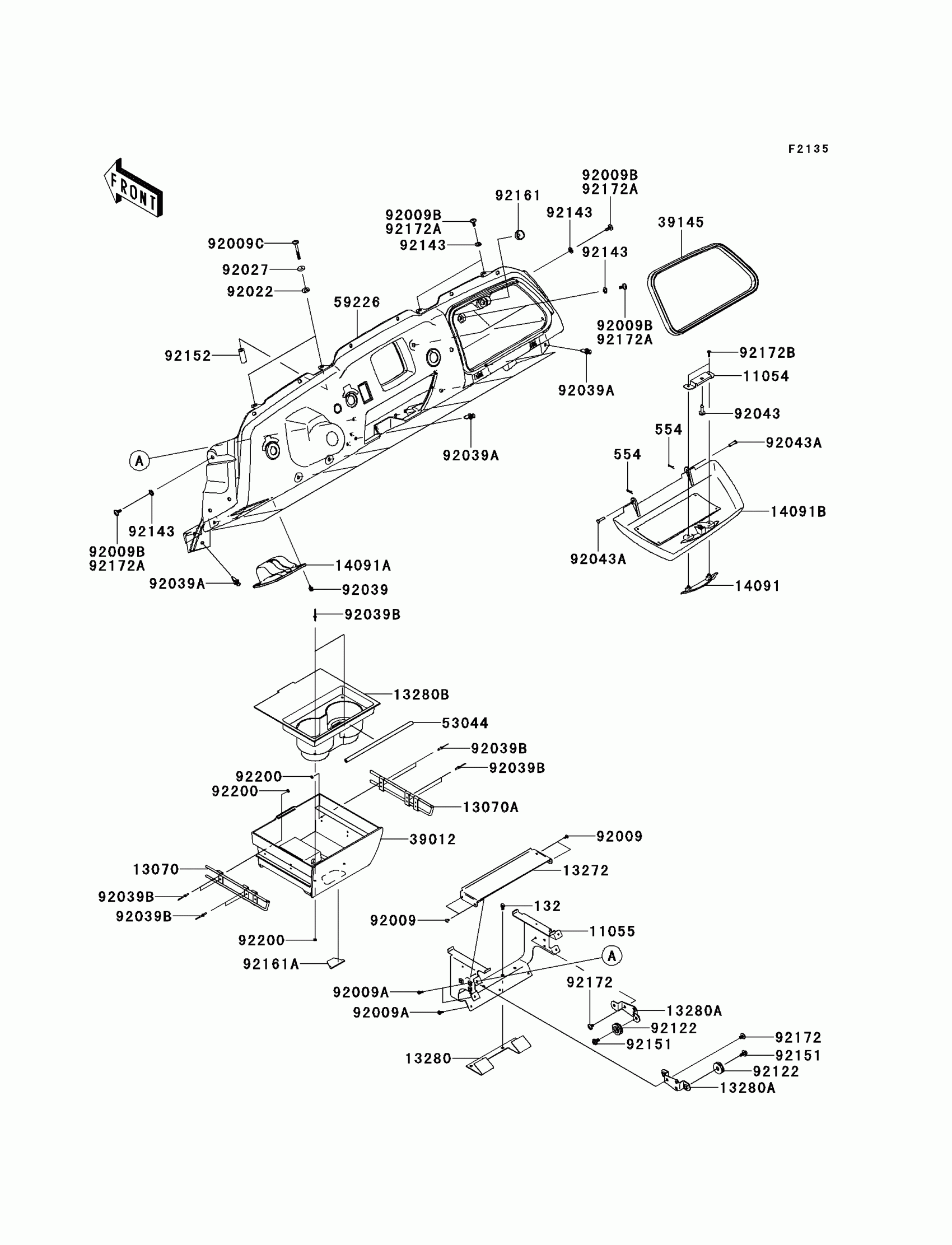

Kawasaki TERYX® 750 FI 4x4 LE (SGE) Front Box Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$1.77

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79

11054

BRACKET

11054-1789

$4.12

11055

BRACKET,CUP HOLDER

11055-0811

$39.57

13070

GUIDE,CUP HOLDER,LH

13070-0098

$38.90

13070A

GUIDE,CUP HOLDER,RH

13070-0099

$38.90

13272

PLATE,CUP HOLDER

13272-0446

$5.42

13280

HOLDER,LWR

13280-0210

$17.49

13280A

HOLDER

13280-0289

$12.42

13280B

HOLDER

13280-0296

$11.12

14091

COVER,STORAGE CAP,F.BLACK

14091-0700-6Z

$5.41

14091A

COVER,LH,F.BLACK

14091-0702-6Z

$9.17

14091B

COVER,STORAGE,F.BLACK

14091-0985-6Z

$30.52

39012

CASE-STORAGE,F.BLACK

39012-0024-6Z

$21.46

39145

TRIM-SEAL,L=940

39145-0029

$18.54

53044

TRIM,L=256.6

53044-0043

$12.27

59226

PANEL-CONTROL,F.BLACK

59226-0019-6Z

$150.97

92009

SCREW,TAPPING,4X8

92009-1155

$2.42

92009A

SCREW,TAPPING,4X12

92009-1444

$2.23

92009C

SCREW,6X56

92009-1829

$2.12

92022

WASHER,10.5X20X1

92022-239

$2.99

92027

COLLAR,L=4.7

92027-1964

$5.61

92039

RIVET

92039-0046

$2.98

92039A

RIVET

92039-1229

$0.80

92039B

RIVET

92039-1231

$1.33

92043

PIN

92043-0138

$8.54

92043A

PIN,6X23

92043-0164

$4.17

92122

ROLLER

92122-0024

$4.15

92143

COLLAR

92143-1087

$2.98

92151

BOLT,FLANGED,6X13

92151-1703

$3.01

92152

COLLAR,7.95X15.88X40

92152-0777

$4.71

92161

DAMPER

92161-0568

$1.08

92161A

DAMPER,CUP HOLDER

92161-0653

$3.58

92172

SCREW,6X10

92172-0005

$1.73

92172A

SCREW,6X16

92172-0236

$0.73

92172B

SCREW,TAPPING,4X16

92172-0347

$1.32

92200

WASHER,3.5X8X1

92200-1251

$0.84
