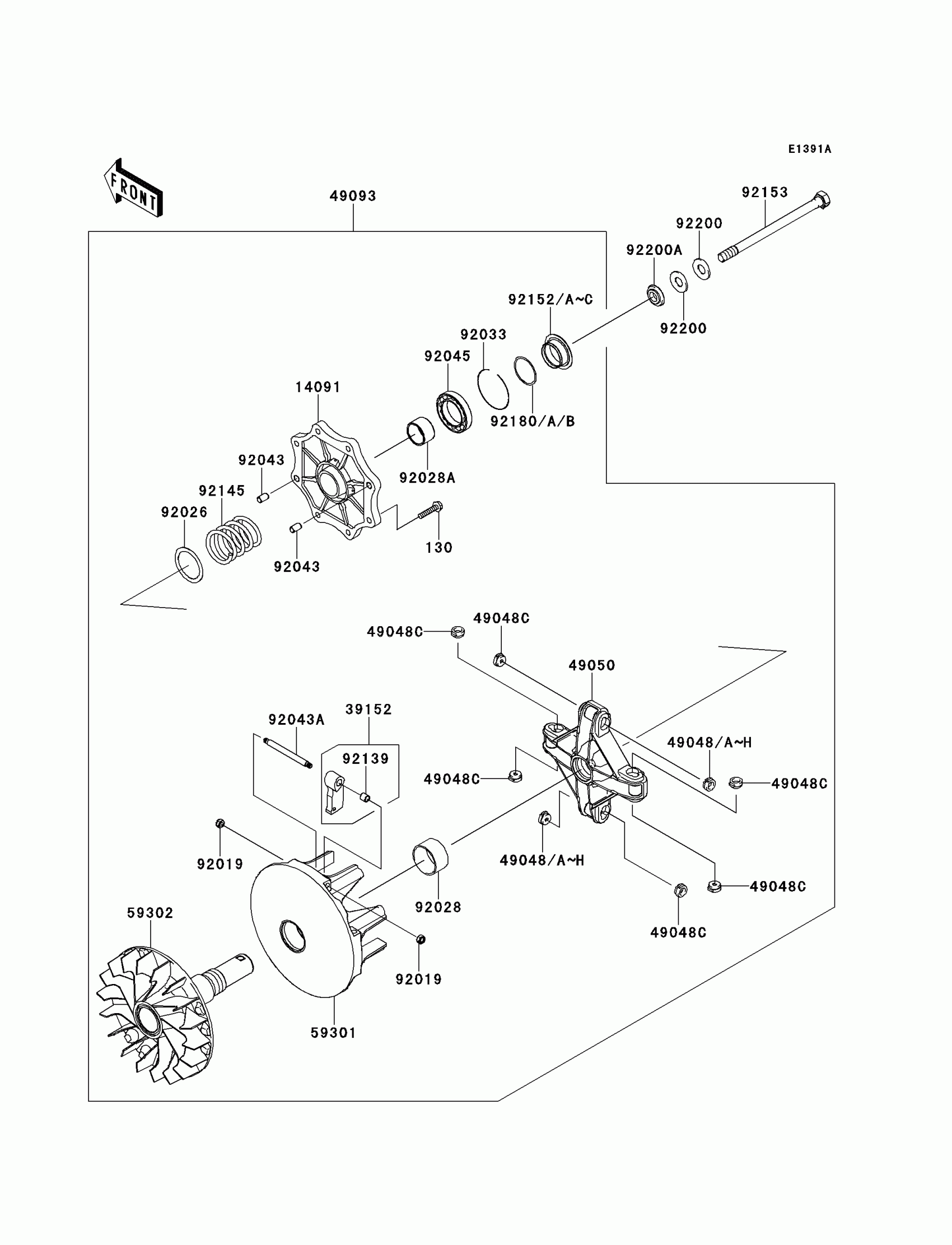

Kawasaki TERYX® 750 FI 4x4 LE (SGE) Drive Converter(VF750DE082165-) Diagram

Description

Price

130

BOLT-FLANGED,6X30

130CA0630

$1.77

14091

COVER

14091-1804

$55.16

39152

WEIGHT-RAMP

39152-0026

$58.96

49048

SHOE,T=7.2

49048-1087

Unavailable

49048A

SHOE,T=7.3

49048-1088

Unavailable

49048B

SHOE,T=7.4

49048-1089

Unavailable

49048C

SHOE,T=7.5

49048-1090

$11.19

49048D

SHOE,T=7.6

49048-1091

Unavailable

49048E

SHOE,T=7.7

49048-1092

Unavailable

49048F

SHOE,T=7.8

49048-1093

Unavailable

49048G

SHOE,T=7.9

49048-1094

Unavailable

49048H

SHOE,T=8.0

49048-1095

Unavailable

49050

SPIDER

49050-0016

$149.78

49093

CONVERTER-ASSY-DRIVE

49093-0063

$1,130.20

59301

SHEAVE-MOVABLE

59301-0007

$240.16

59302

SHEAVE-COMP,FIXED

59302-0080

$361.24

92019

NUT,LOCK,6MM

92019-008

$3.12

92026

SPACER,39X49.5X1.0

92026-1603

$5.82

92028

BUSHING

92028-1975

$9.73

92028A

BUSHING

92028-1980

$6.03

92033

RING-SNAP

92033-0063

$2.66

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

92043-1688

$10.34

92045

BEARING-BALL,6907DDG8C4 S6NS

92045-1453

$34.29

92139

BUSHING

92139-0215

$7.77

92145

SPRING

92145-1465

$25.10

92152

COLLAR,T=1.6

92152-1436

Unavailable

92152A

COLLAR,T=3.0

92152-1437

Unavailable

92152B

COLLAR,T=2.3

92152-1438

Unavailable

92152C

COLLAR,T=3.7

92152-1440

Unavailable

92153

BOLT,12X180

92153-1726

$26.10

92180

SHIM,35X40X0.10

92180-1378

Unavailable

92180A

SHIM,35X40X0.20

92180-1379

Unavailable

92180B

SHIM,35X40X0.30

92180-1380

Unavailable

92200

WASHER,SPRING

92200-1504

$3.19

92200A

WASHER

92200-1634

$6.91
