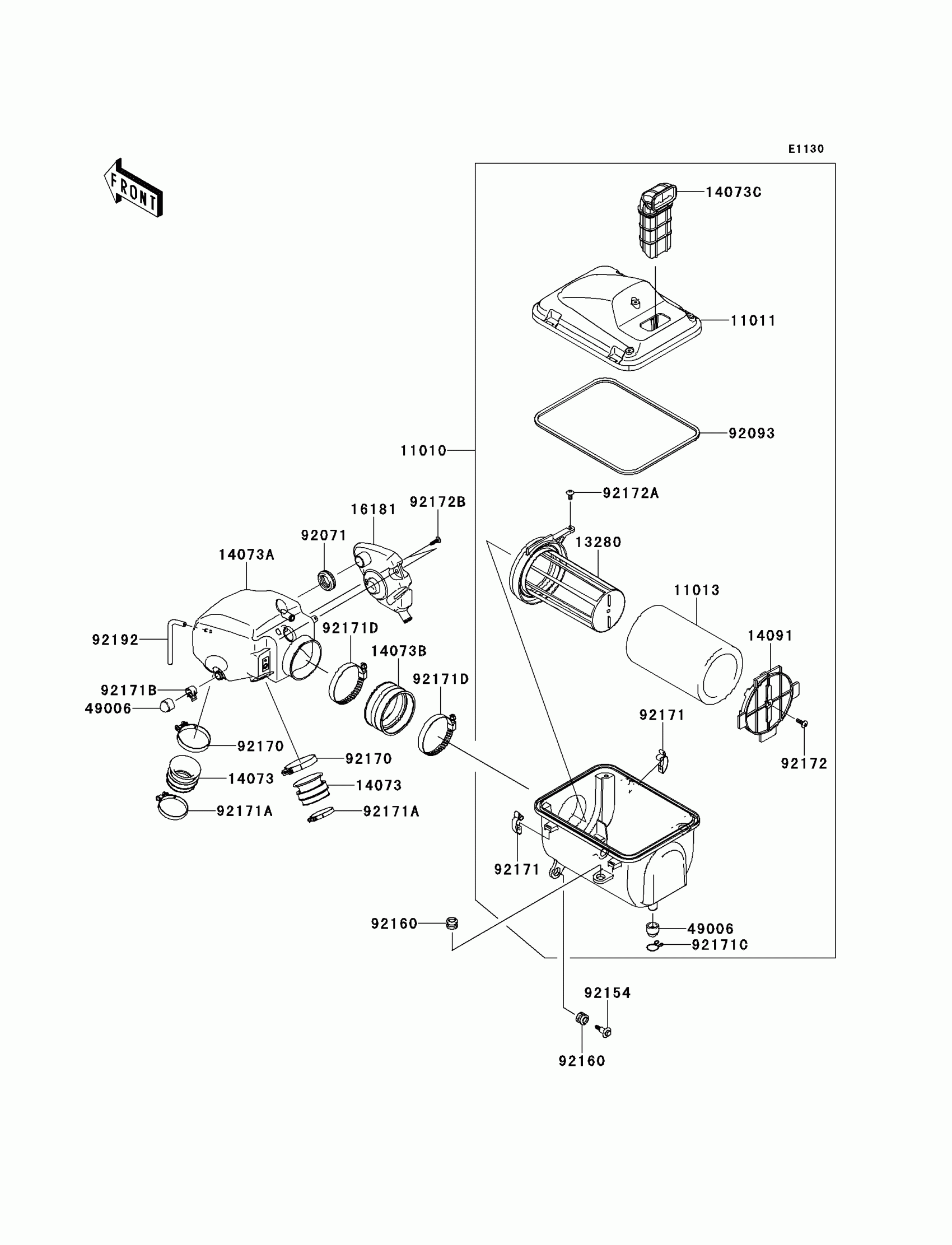

Kawasaki TERYX® 750 FI 4x4 LE (SGE) Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0184

$149.32

11011

CASE-AIR FILTER,UPP

11011-0140

$41.49

11013

ELEMENT-AIR FILTER

11013-0018

$10.95

13280

HOLDER

13280-0267

$14.98

14073

DUCT

14073-0160

$7.89

14073A

DUCT,A/C-THROBO

14073-0257

$123.89

14073B

DUCT,JOINT,A/C SIDE

14073-0258

$8.10

14073C

DUCT,AIR INLET

14073-0261

$20.92

14091

COVER

14091-0935

$9.04

16181

TANK-RESONATOR

16181-0015

$22.96

49006

BOOT,DRAIN

49006-3718

$6.62

92071

GROMMET,AIR FILTER

92071-1013

$6.46

92093

SEAL

92093-0083

$7.87

92154

BOLT,FLANGED,6X27.5

92154-0029

$5.92

92160

DAMPER

92160-1594

$4.69

92170

CLAMP

92170-1448

$8.10

92171

CLAMP

92171-0225

$1.97

92171A

CLAMP

92171-0722

$15.20

92171B

CLAMP

92171-1277

$2.75

92171C

CLAMP,BOOT

92171-3711

$3.87

92171D

CLAMP

92171-3716

$10.24

92172

SCREW,6X18

92172-0130

$1.79

92172A

SCREW,6X14

92172-0131

$1.79

92172B

SCREW,TAPPING,5X20

92172-0444

$1.07

92192

TUBE,4X8X127

92192-0763

$3.36
