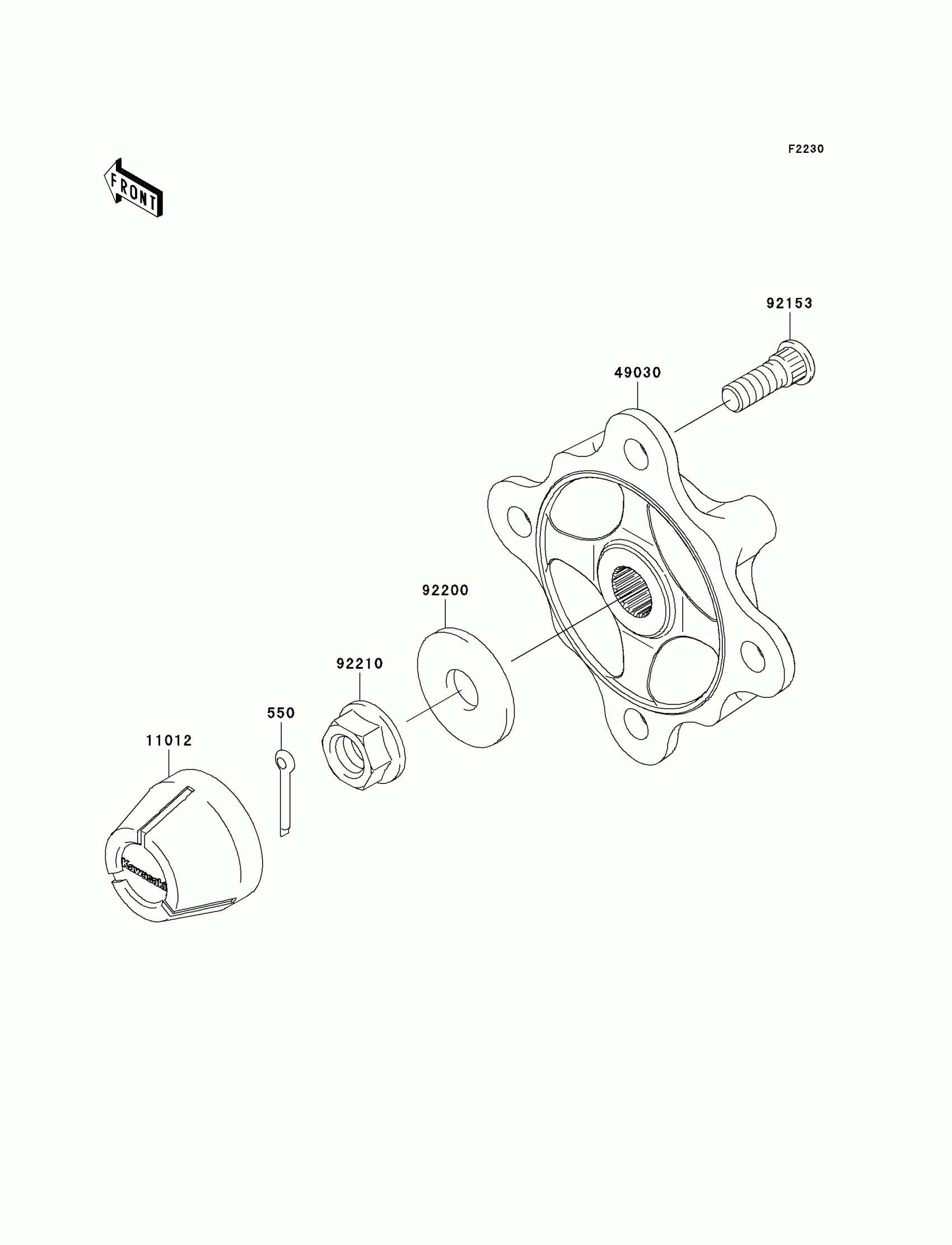

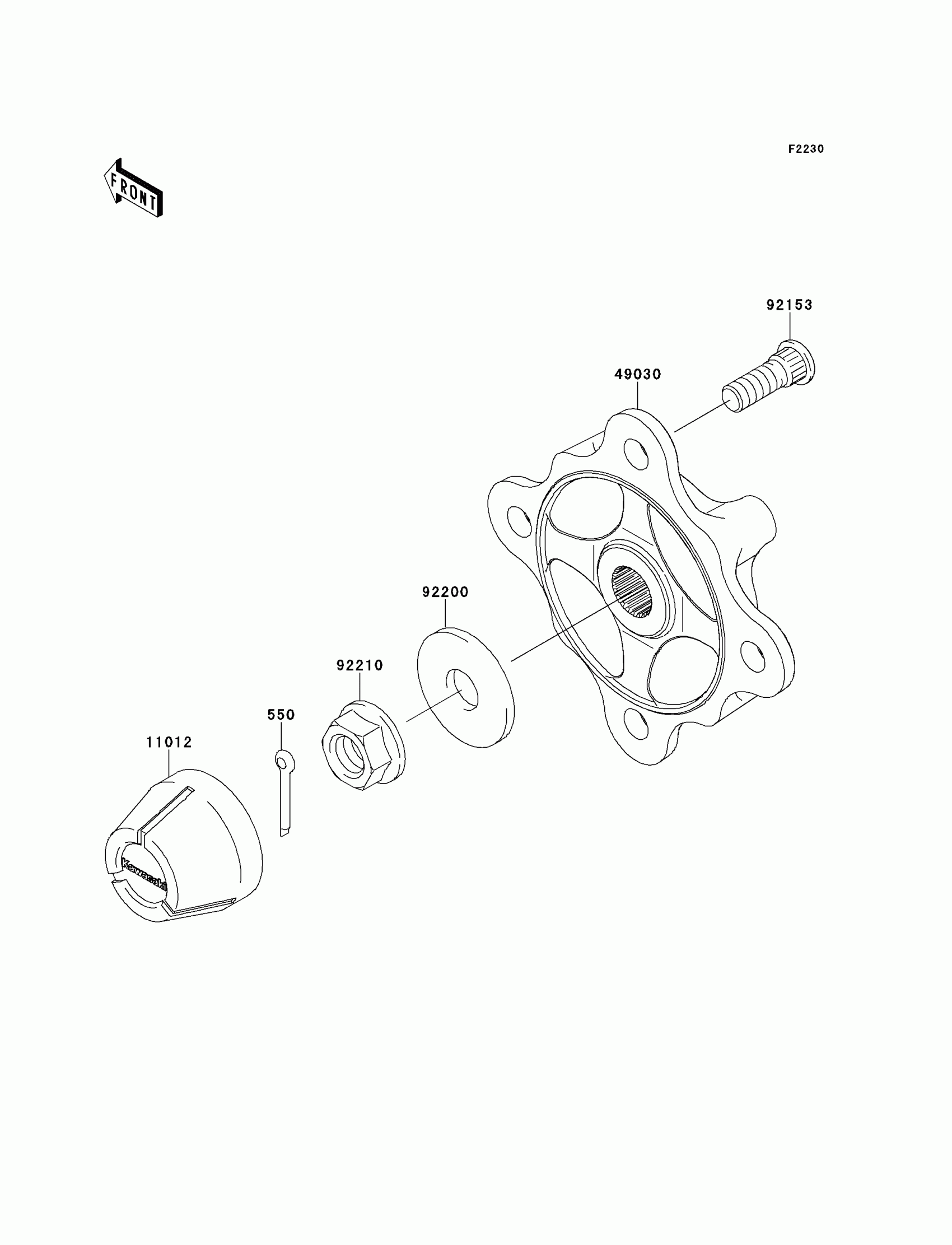

Kawasaki Teryx® 750 FI 4x4 LE Front Hubs/Brakes Diagram

#

Description

Price

550

PIN-COTTER,4.0X30

550AA4030

$2.08

11012

CAP,WHEEL

11012-1969

$4.29

49030

HUB,FR

49030-0036

$154.03

92153

BOLT,12MM

92153-1915

$5.13

92200

WASHER,18.5X52X4.5

92200-0425

$9.47

92210

NUT,FLANGED,18MM

92210-0132

$9.08
