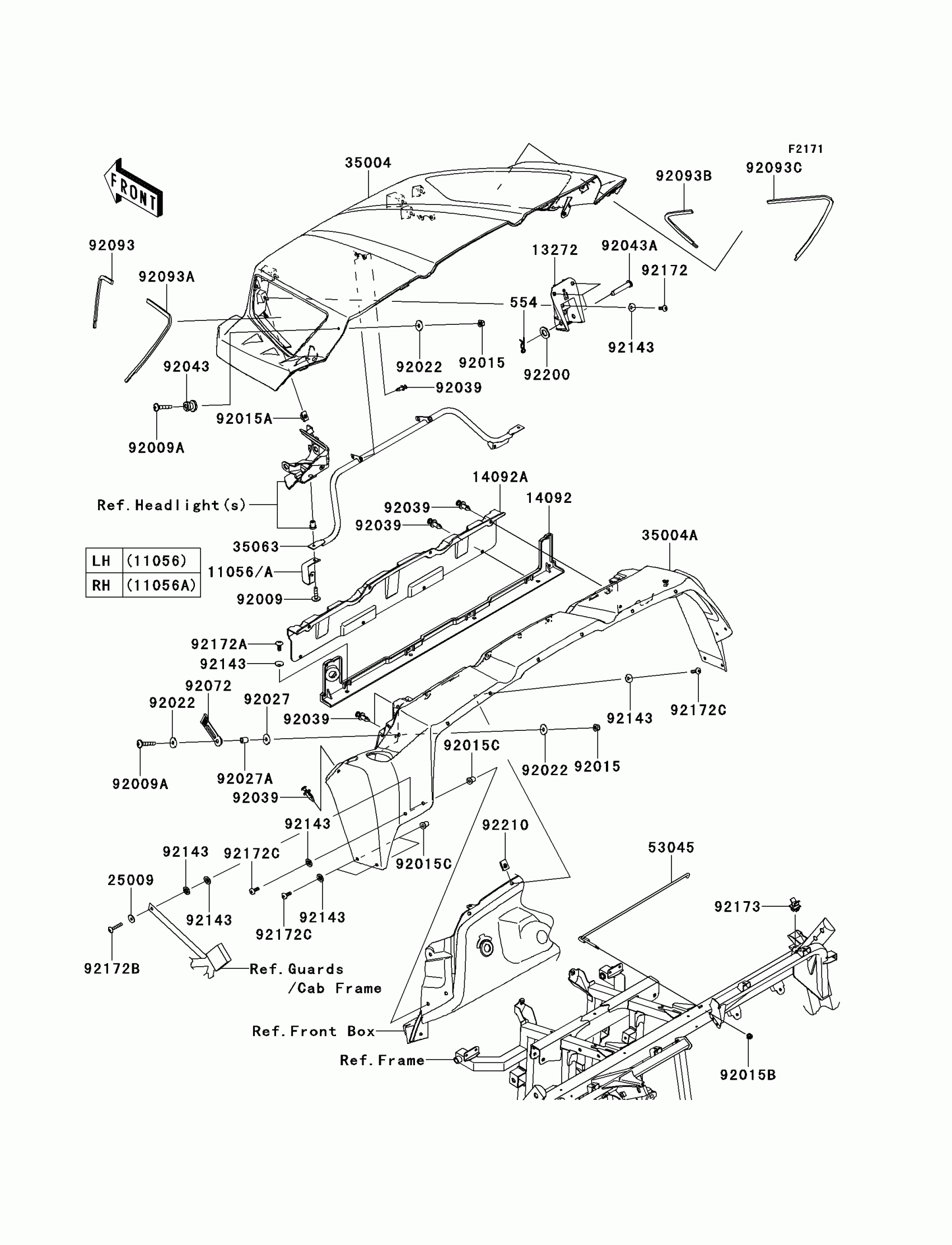

Kawasaki TERYX® 750 FI 4x4 LE Front Fender(s) Diagram

#

Description
Price

554

PIN-SNAP,12MM

554DA1200

$3.96

11056

BRACKET,LH

11056-0129

$5.57

11056A

BRACKET,RH

11056-0130

$5.57

13272

PLATE

13272-0871

$49.98

14092

COVER,BASE PLATE

14092-0059

$24.17

14092A

COVER,CHECK PLATE

14092-0060

$14.55

25009

WASHER,5.2X16X1.2

25009-004

$3.65

35004

FENDER-FRONT,FR,M.S.WHITE

35004-0134-31Y

$523.99

35004A

FENDER-FRONT,RR,M.S.WHITE

35004-0143-31Y

$72.47

35063

STAY,HEAD LAMP

35063-0677

$94.05

53045

HOOK-ASSY

53045-0018

$22.63

92009

SCREW,6X25

92009-1465

$3.92

92009A

SCREW,6X35

92009-1672

$3.92

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92015A

NUT,5MM

92015-1627

$5.93

92015B

NUT,LOCK,FLANGED,5MM

92015-1752

$4.31

92015C

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X20X1.6,WHITE

92022-193

$5.33

92027

COLLAR,L=5.1

92027-1260

$6.22

92027A

COLLAR,6.8X10X12

92027-162

$6.57

92039

RIVET

92039-1229

$1.19

92043

PIN

92043-0197

$2.98

92043A

PIN,12.4X72.4

92043-0716

$7.24

92072

BAND

92072-0144

$6.62

92093

SEAL,FR,LH

92093-0168

$7.53

92093A

SEAL,RR,LH

92093-0169

$7.53

92093B

SEAL,FR,RH

92093-0170

$7.53

92093C

SEAL,RR,RH

92093-0171

$7.53

92143

COLLAR

92143-1087

$4.31

92172

SCREW,5X16

92172-0322

$2.15

92172A

SCREW,TAPPING,6X16

92172-0739

$0.85

92172B

SCREW,5X30

92172-0783

$0.88

92172C

SCREW,5X20

92172-2081

$0.73

92173

CLAMP

92173-0106

$5.86

92200

WASHER,13X24X2

92200-0451

$2.97

92210

NUT,5MM

92210-0499

$7.95
