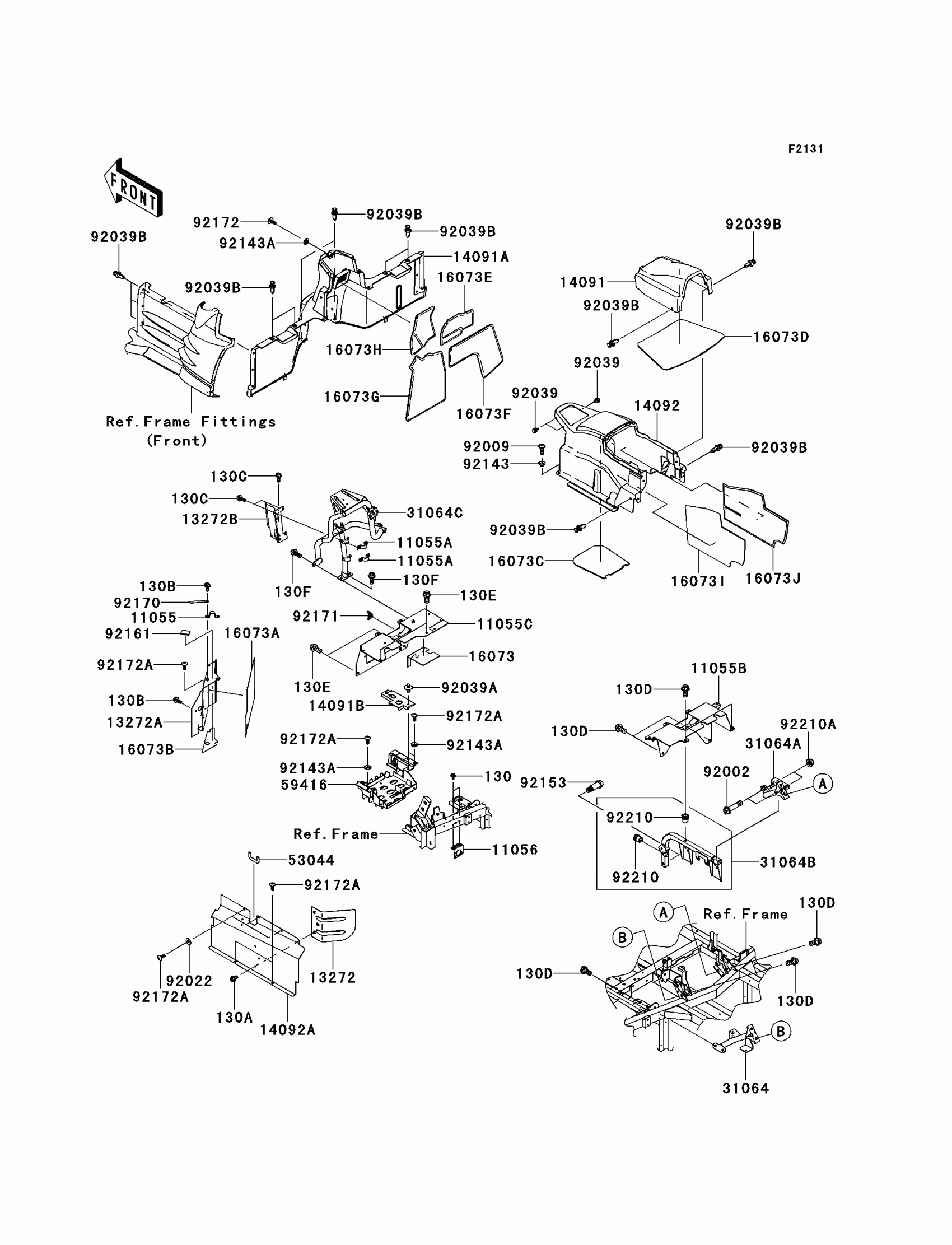

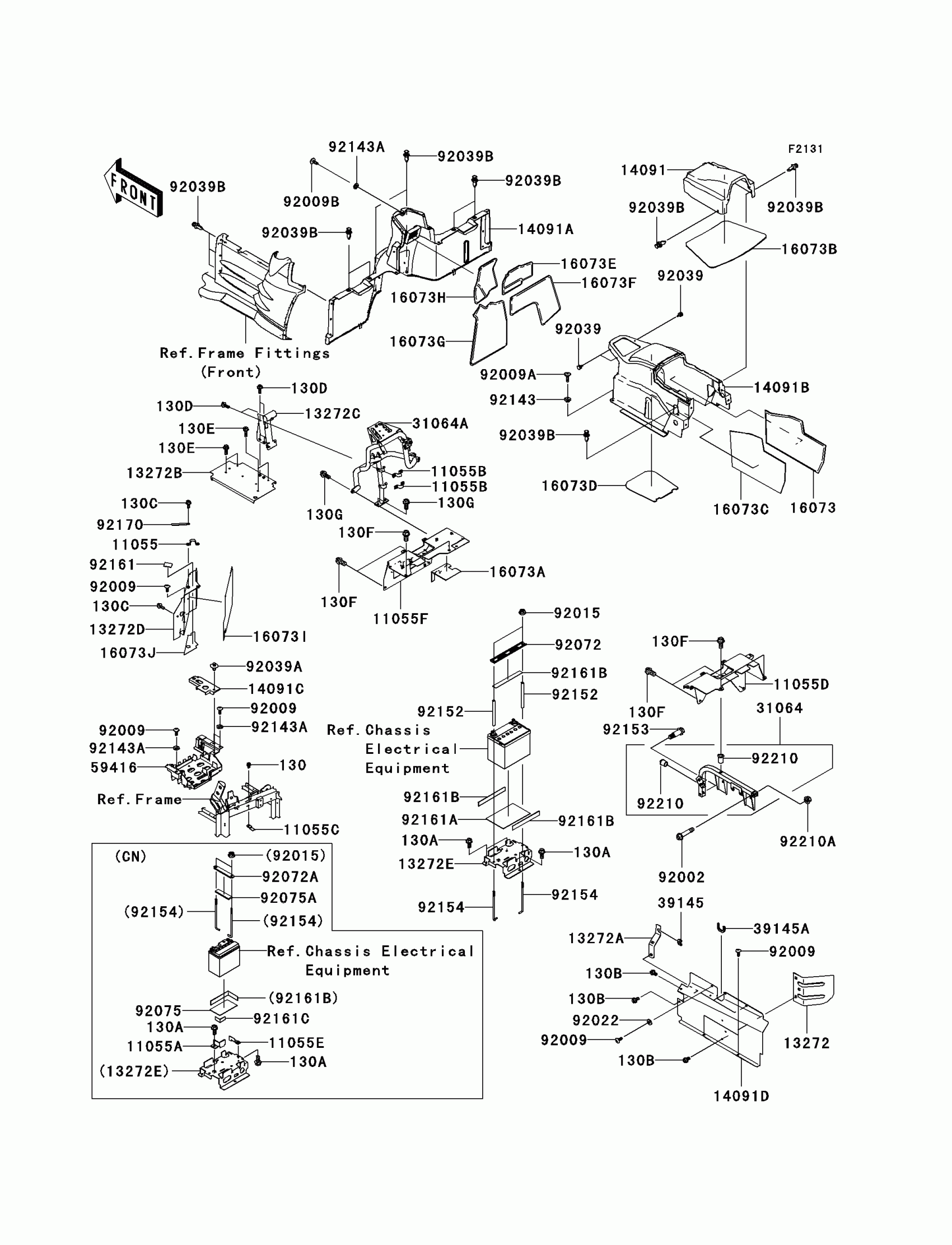

Kawasaki Teryx® 750 FI 4x4 LE Frame Fittings(Rear) Diagram

#

Description
Price

11055

BRACKET

11055-0419

$2.25

11055B

BRACKET

11055-0896

$3.86

11055C

BRACKET

11055-1384

$7.17

11055D

BRACKET,SEAT LOCK PLATE,RH

11055-1409

$52.50

11055F

BRACKET,SEAT LOCK

11055-1814

$56.05

13272

PLATE

13272-0318

$8.14

13272A

PLATE

13272-0351

$13.32

13272B

PLATE,TUNNEL PLATE

13272-0421

$48.12

13272C

PLATE

13272-0434

$31.29

13272D

PLATE,HEAT GUARD

13272-0731

$44.95

13272E

PLATE,BATTERY HOLDER

13272-0748

$43.14

14091

COVER,CONSOLE CENTER,F.BLACK

14091-0975-6Z

Unavailable

14091A

COVER,SEAT,F.BLACK

14091-0982-6Z

$75.55

14091B

COVER,CONSOLE CENTER,F.BLACK

14091-1724-6Z

Unavailable

14091C

COVER,ELECTRIC

14091-1761

$22.80

14091D

COVER,HEAT

14091-1805

$38.80

16073

INSULATOR,CENTER CONSOLE,RH

16073-0092

$66.45

16073A

INSULATOR,SEAT BRACKET

16073-0097

$7.80

16073B

INSULATOR,AIR CLEANER,UPP

16073-0102

$65.84

16073C

INSULATOR,CENTER CONSOLE,LH

16073-0103

$65.84

16073D

INSULATOR,CENTER CONSOLE,UPP

16073-0104

$34.92

16073E

INSULATOR,LEG COVER,CNT,UPP

16073-0105

$22.41

16073F

INSULATOR,LEG COVER,CNT,RH,LWR

16073-0106

$54.22

16073G

INSULATOR,LEG COVER,CNT,LH,LWR

16073-0107

$54.22

16073H

INSULATOR,LEG COVER,CNT,LH,UPP

16073-0108

$29.31

16073I

INSULATOR,EXHAUST PIPE

16073-0112

$18.61

16073J

INSULATOR,EXHAUST PIPE

16073-0113

$4.76

31064

PIPE-COMP

31064-0181

$48.18

31064A

PIPE-COMP

31064-0194

$145.98

39145

TRIM-SEAL,L=53

39145-0035

$4.17

39145A

TRIM-SEAL,L=120

39145-0040

Unavailable

59416

CASE-ELECTRIC

59416-0018

$32.47

92002

BOLT,FLANGED,10X46

92002-1740

$7.56

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X22,BLACK

92009-1256

$1.96

92009B

SCREW,6X16

92009-1621

Unavailable

130

BOLT-FLANGED,5X10

130BA0510

$1.27

130B

BOLT-FLANGED,6X12

130BB0612

$1.68

130C

BOLT-FLANGED,6X14

130BB0614

$1.77

130D

BOLT-FLANGED,6X16

130BB0616

$1.49

130E

BOLT-FLANGED,6X20

130BB0620

$0.47

130F

BOLT-FLANGED,10X20

130BB1020

$4.50

130G

BOLT-FLANGED,8X20

130CA0820

$1.27

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92039

RIVET

92039-0046

$2.98

92039A

RIVET

92039-0086

$4.18

92039B

RIVET

92039-1229

$0.80

92143

COLLAR

92143-1057

$3.81

92143A

COLLAR

92143-1087

$2.98

92153

BOLT,FLANGED,10X38

92153-1742

$10.39

92154

BOLT,BATTERY

92154-0137

$17.29

92161

DAMPER

92161-0273

$1.32

92170

CLAMP

92170-1925

$1.98

92210

NUT,POP,10MM

92210-0507

$4.17

92210A

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

11055A

BRACKET

11055-0433

$3.31

11055E

BRACKET,BATTERY STOPPER

11055-1656

$9.41

130A

BOLT-FLANGED,8X18

130BA0818

$1.81

130A

BOLT-FLANGED,8X18

130BA0818

$1.81

92072

BAND,BATTERY,UPP

92072-0128

$15.80

92072A

BAND,BATTERY

92072-1233

Unavailable

92075

DAMPER

92075-1076

$6.75

92075A

DAMPER

92075-1214

$3.92

92152

COLLAR,10.22X12.7X158.8

92152-0794

$16.68

92161A

DAMPER

92161-0578

$3.80

92161B

DAMPER

92161-0579

$2.07

92161B

DAMPER

92161-0579

$2.07

92161C

DAMPER

92161-0580

$2.00
