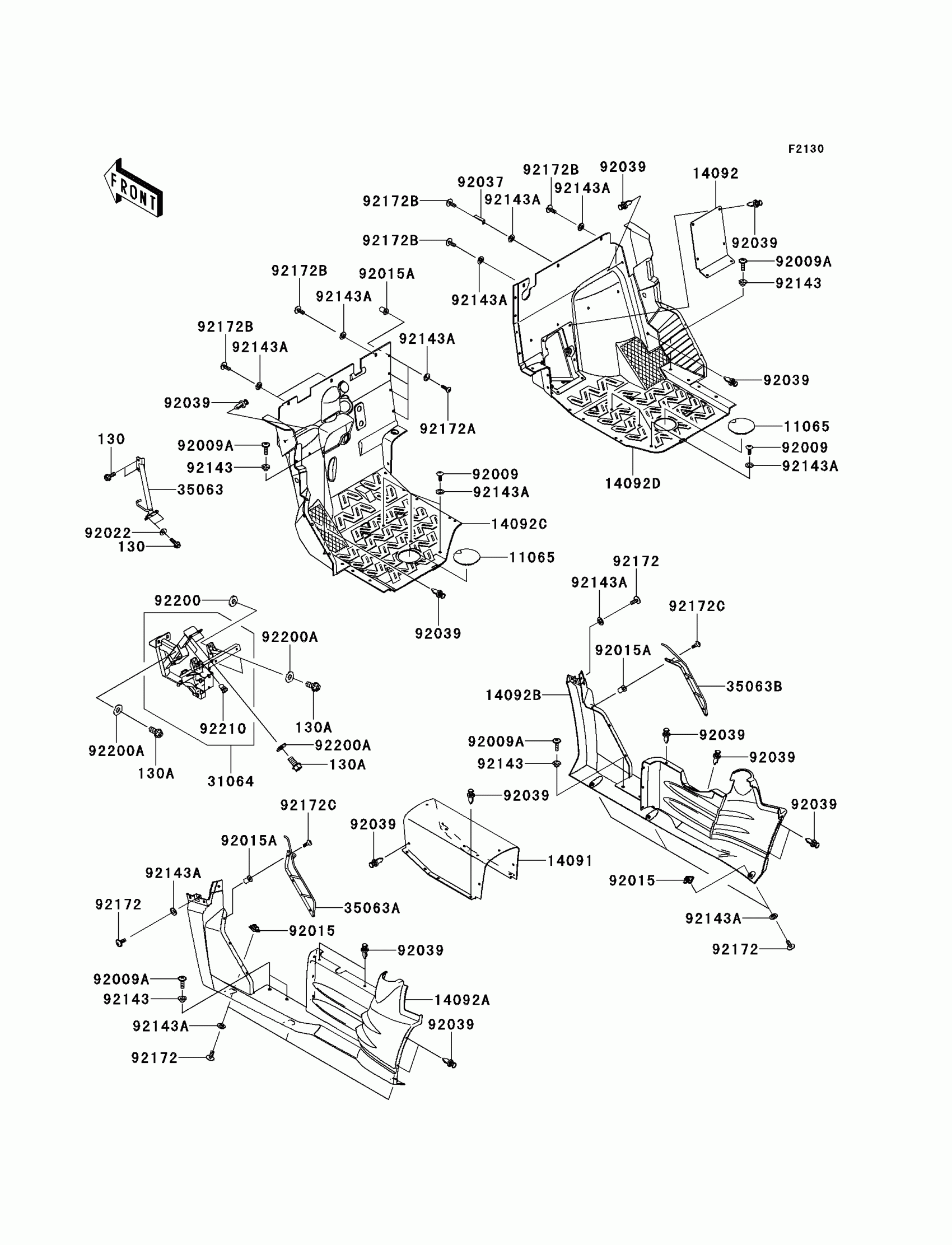

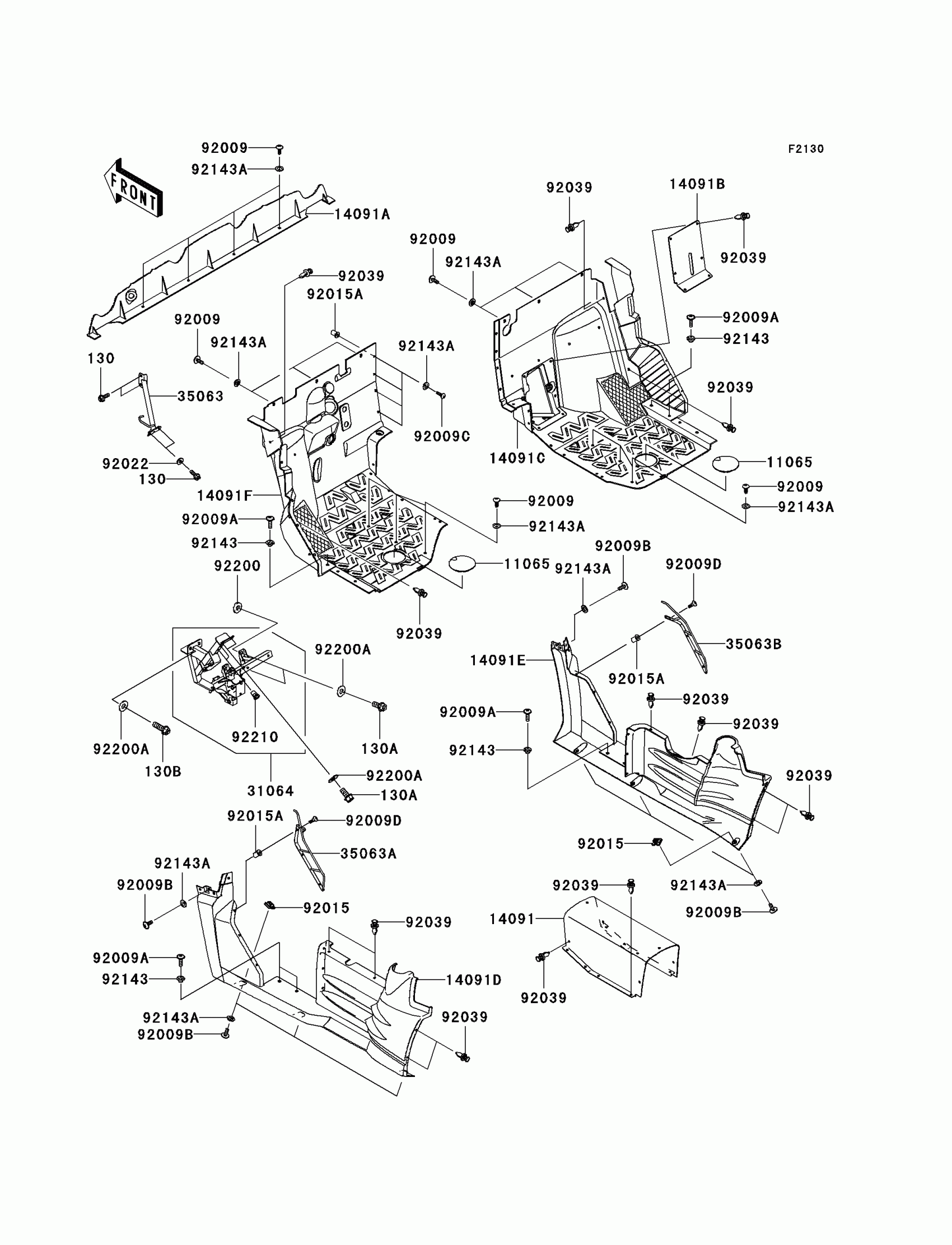

Kawasaki TERYX® 750 FI 4x4 LE Frame Fittings(Front) Diagram

Description

Price

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,10X20

130CA1020

$2.13

11065

CAP

11065-0267

$9.62

14091

COVER,CENTER,F.BLACK

14091-0696-6Z

$32.28

14092

COVER,RESERV. TANK,F.BLACK

14092-0079-6Z

$9.06

14092A

COVER,SIDE,LH,F.BLACK

14092-0889-6Z

$83.64

14092B

COVER,SIDE,RH,F.BLACK

14092-0890-6Z

$83.64

14092C

COVER,FLOOR,LH

14092-0898

$116.60

14092D

COVER,FLOOR,RH

14092-0899

$116.60

31064

PIPE-COMP

31064-0172

$146.66

35063

STAY,MASTER CYLINDER

35063-0518

$34.06

35063A

STAY,SIDE COVER,LH

35063-0544

$42.10

35063B

STAY,SIDE COVER,RH

35063-0545

$42.10

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92015

NUT

92015-1487

$4.80

92015A

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.2X15X1.2

92022-2373

$0.43

92037

CLAMP,HARNESS

92037-1316

$2.61

92039

RIVET

92039-1229

$1.19

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92172

SCREW,6X16

92172-0236

$0.85

92172A

SCREW,5X18

92172-0504

$3.16

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85

92172C

SCREW,5X20

92172-2081

$0.73

92200

WASHER,10X22X3.2

92200-0121

$2.38

92200A

WASHER,10.3X23X1.6

92200-2009

$1.35

92210

NUT,POP,6MM,L=15

92210-1397

$5.48
