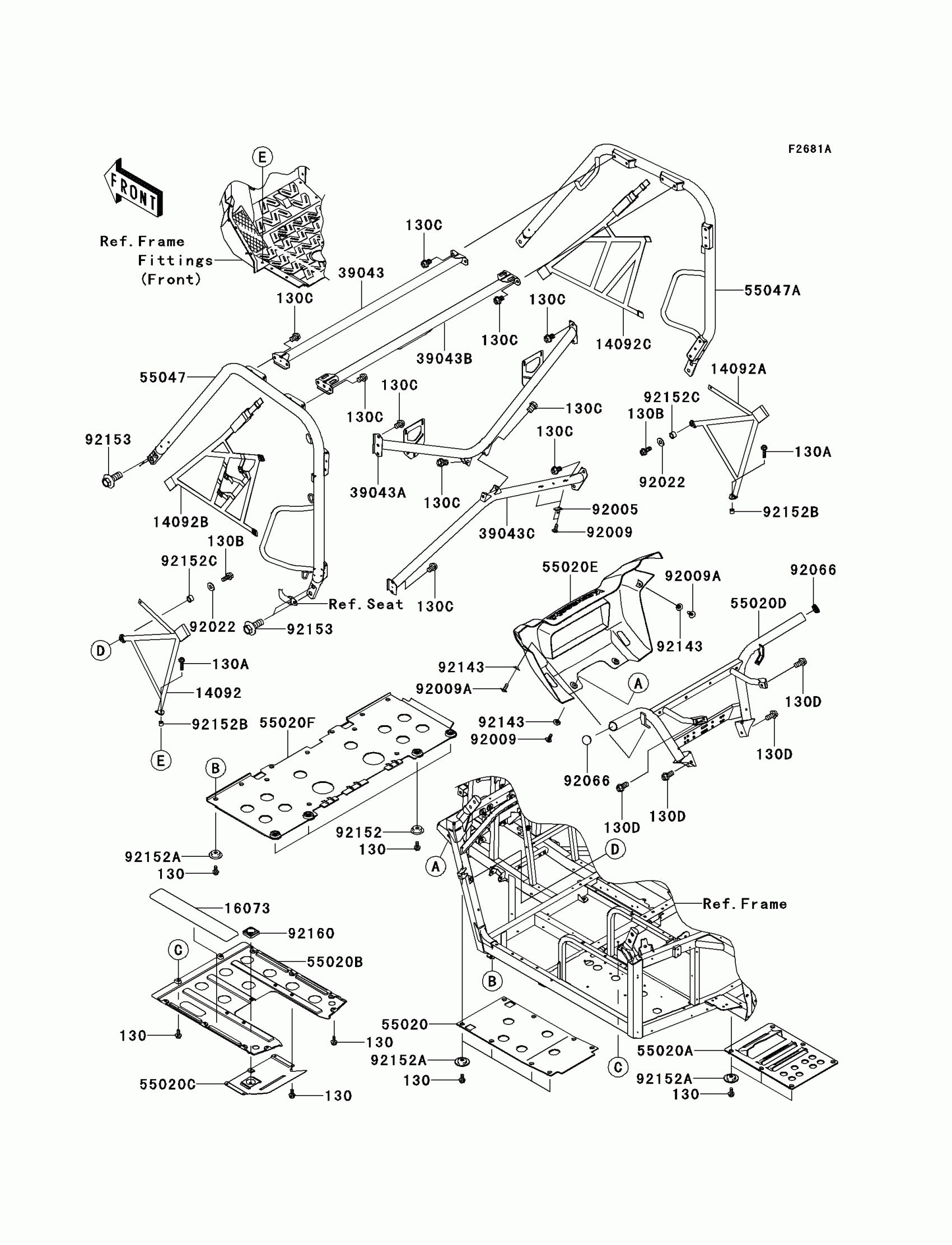

Kawasaki TERYX® 750 FI 4x4 Guards/Cab Frame(NCS) Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X25

130BB0625

$2.80

130B

BOLT-FLANGED,8X20

130BB0820

$0.84

130C

BOLT-FLANGED,10X14

130CB1014

$3.39

130D

BOLT-FLANGED,10X20

130CB1020

$2.72

14092

COVER,LH,LWR

14092-0942

Unavailable

14092A

COVER,RH,LWR

14092-0944

Unavailable

14092B

COVER,LH,UPP

14092-0955

$188.96

14092C

COVER,RH,UPP

14092-0956

$188.96

16073

INSULATOR,ENGINE GUARD

16073-0045

$5.56

39043

CROSSMEMBER-COMP,UPP,FR,BLACK

39043-0001-388

$89.05

39043A

CROSSMEMBER-COMP,RR,UPP,BLACK

39043-0005-388

$209.18

39043B

CROSSMEMBER-COMP,UPP,RR,BLACK

39043-0007-388

$89.05

39043C

CROSSMEMBER-COMP,RR,LWR,BLACK

39043-0008-388

$209.18

55020

GUARD,SKID,FR

55020-0301

$55.84

55020A

GUARD,SKID,RR

55020-0402

$34.64

55020B

GUARD,SKID,MIDDLE

55020-0437

$132.59

55020C

GUARD,ENGINE,SUB

55020-0438

$340.09

55020D

GUARD,FRONT PIPE,T.BLACK

55020-0494-388

$178.15

55020E

GUARD,FRONT COVER

55020-0520

$114.43

55020F

GUARD,SKID,MIDDLE

55020-0522

$114.43

55047

BAR-COMP,LH,T.BLACK

55047-0332-388

$227.51

55047A

BAR-COMP,RH,T.BLACK

55047-0333-388

$227.51

92005

FITTING

92005-0077

$6.22

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92066

PLUG

92066-0114

$1.75

92143

COLLAR

92143-1087

$4.31

92152

COLLAR

92152-0512

$2.24

92152A

COLLAR

92152-0784

$2.12

92152B

COLLAR,6.2X9.5X7.5

92152-1576

$4.12

92152C

COLLAR,9.3X13.5X8.6

92152-1608

$4.12

92153

BOLT,FLANGED,14X36

92153-1282

$7.63

92160

DAMPER

92160-1772

$10.85
