- Partiron
- OEM Parts
- Kawasaki
- side-x-side
- 2013
- TERYX® 750 FI 4x4
Front Fender(s)

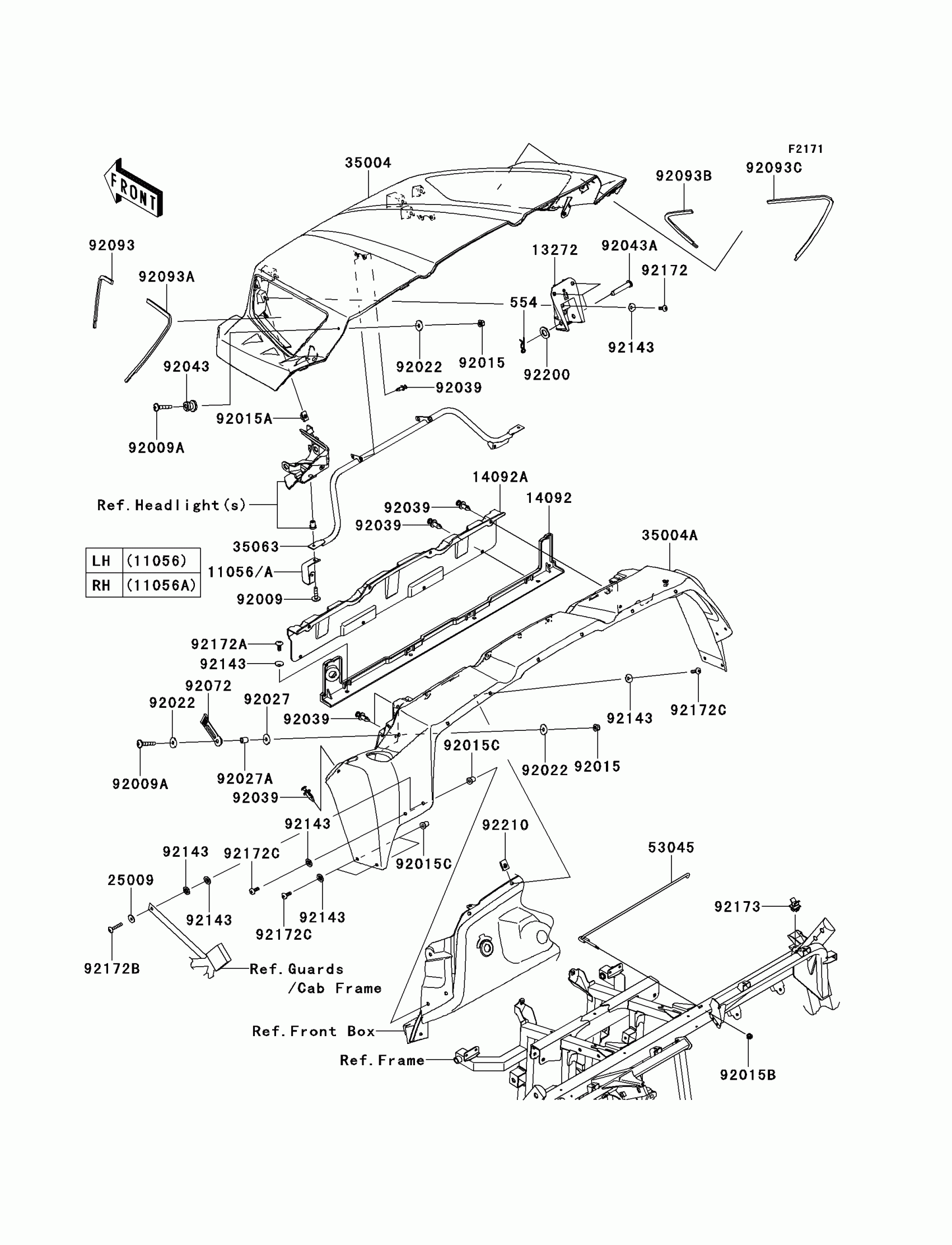

Kawasaki TERYX® 750 FI 4x4 Front Fender(s) Diagram
#
554
PIN-SNAP,12MM
554DA1200
$3.96
11056
BRACKET,LH
11056-0129
$5.57
11056A
BRACKET,RH
11056-0130
$5.57
13272
PLATE
13272-0871
$49.98
14092
COVER,BASE PLATE
14092-0059
$24.17
14092A
COVER,CHECK PLATE
14092-0060
$14.55
25009
WASHER,5.2X16X1.2
25009-004
$3.65
35004
FENDER-FRONT,FR,S.BLACK
35004-0132-839
$309.59
35004A
FENDER-FRONT,RR,S.BLACK
35004-0142-839
$64.56
35063
STAY,HEAD LAMP
35063-0677
$94.05
53045
HOOK-ASSY
53045-0018
$22.63
92009
SCREW,6X25
92009-1465
$3.92
92009A
SCREW,6X35
92009-1672
$3.92
92015
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92015A
NUT,5MM
92015-1627
$5.93
92015B
NUT,LOCK,FLANGED,5MM
92015-1752
$4.31
92015C
NUT,WELL,5MM
92015-1757
$7.29
92022
WASHER,6.5X20X1.6,WHITE
92022-193
$5.33
92027
COLLAR,L=5.1
92027-1260
$6.22
92027A
COLLAR,6.8X10X12
92027-162
$6.57
92039
RIVET
92039-1229
$1.19
92043
PIN
92043-0197
$2.98
92043A
PIN,12.4X72.4
92043-0716
$7.24
92072
BAND
92072-0144
$6.62
92093
SEAL,FR,LH
92093-0168
$7.53
92093A
SEAL,RR,LH
92093-0169
$7.53
92093B
SEAL,FR,RH
92093-0170
$7.53
92093C
SEAL,RR,RH
92093-0171
$7.53
92143
COLLAR
92143-1087
$4.31
92172
SCREW,5X16
92172-0322
$2.15
92172A
SCREW,TAPPING,6X16
92172-0739
$0.85
92172B
SCREW,5X30
92172-0783
$0.88
92172C
SCREW,5X20
92172-2081
$0.73
92173
CLAMP
92173-0106
$5.86
92200
WASHER,13X24X2
92200-0451
$2.97
92210
NUT,5MM
92210-0499
$7.95
