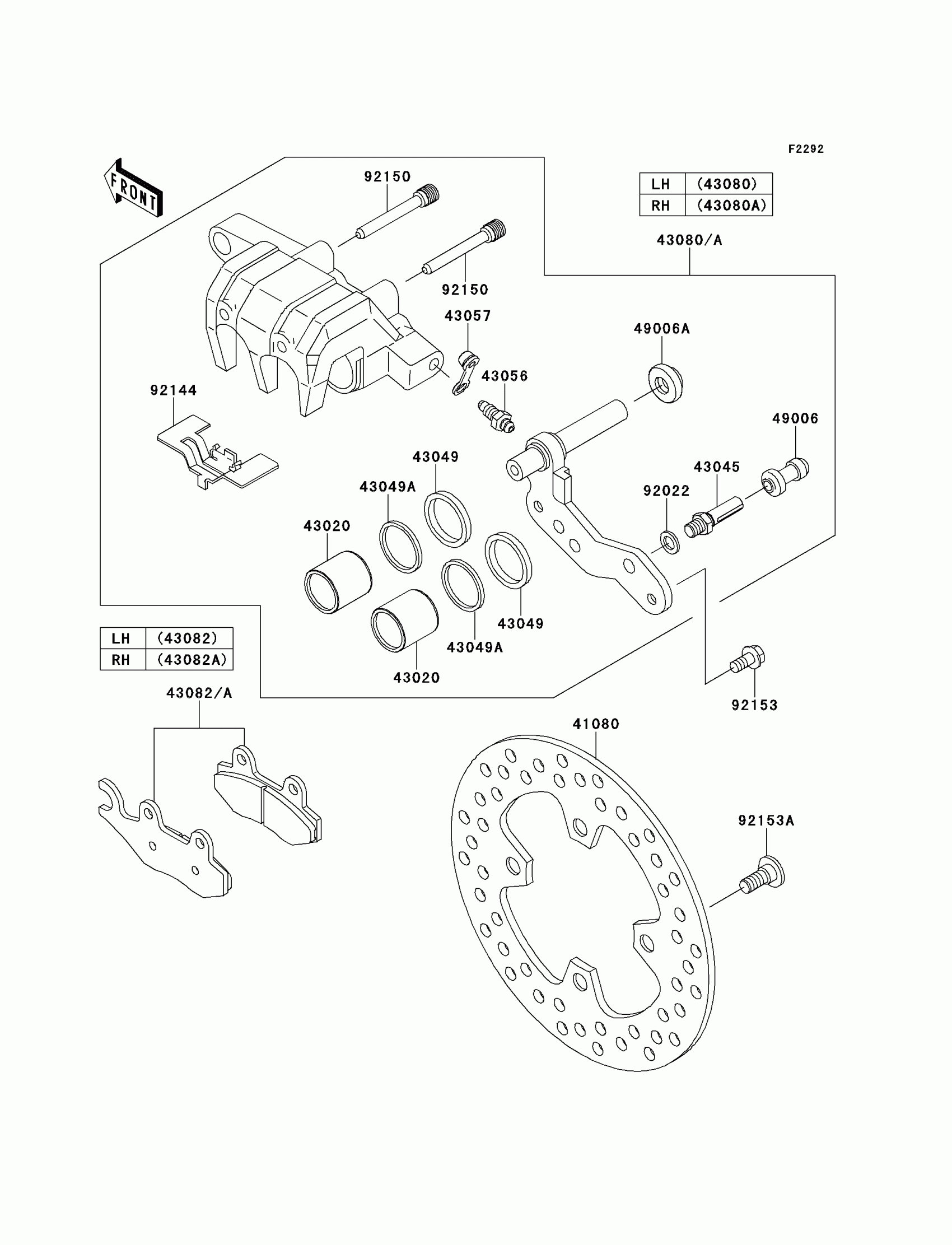

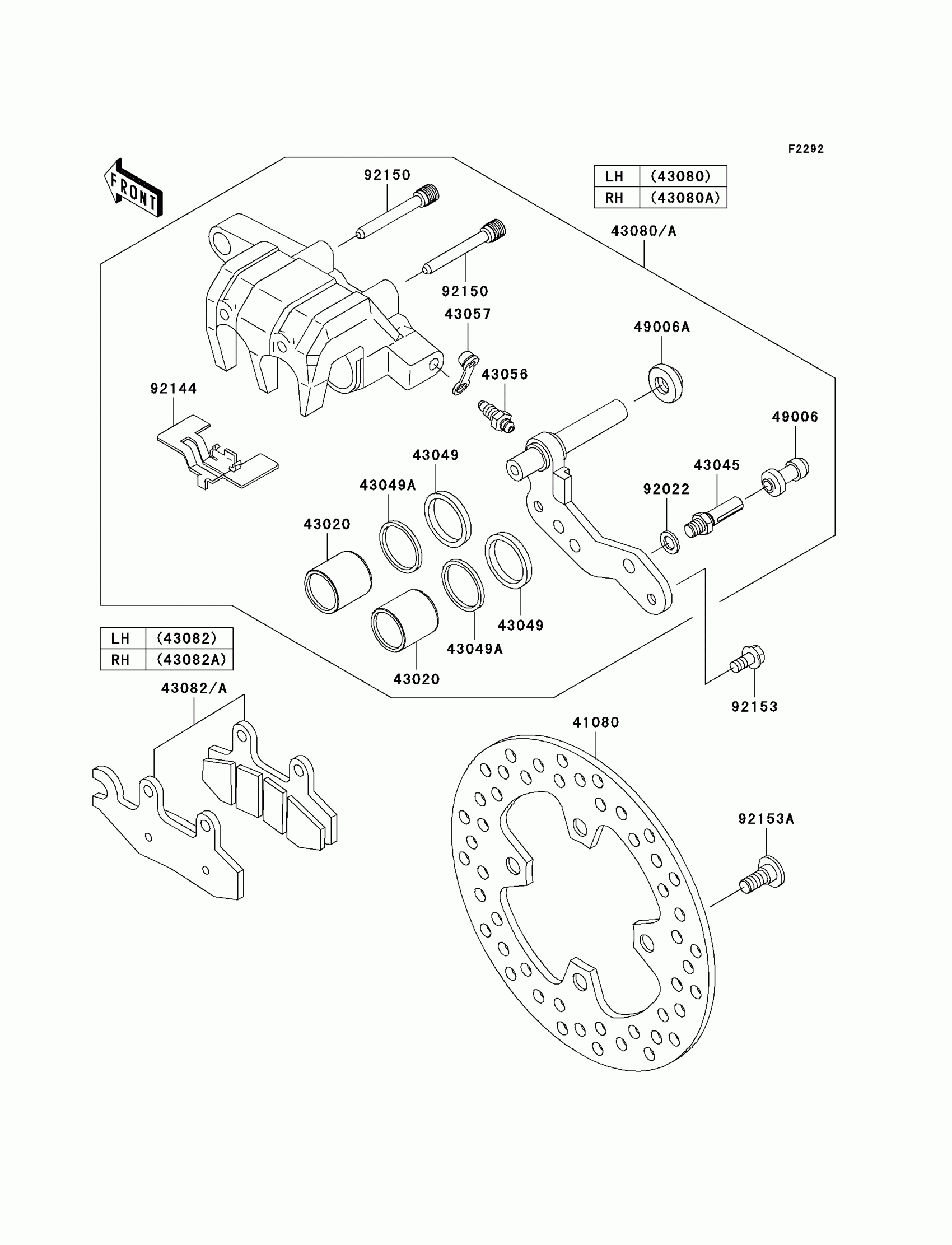

Kawasaki TERYX® 750 FI 4x4 Front Brake Diagram

Description

Price

41080

DISC,FR

41080-0156

Unavailable

43020

PISTON-COMP-BRAKE

43020-0009

$60.21

43045

SHAFT-CALIPER

43045-1010

$20.77

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,LH

43080-0082

Unavailable

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0083

Unavailable

43082

PAD-ASSY-BRAKE,LH

43082-0069

$36.90

43082A

PAD-ASSY-BRAKE,RH

43082-0082

$36.90

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92022

WASHER,WAVE

92022-1373

$3.92

92144

SPRING,PAD

92144-1319

$7.77

92150

BOLT

92150-1144

$9.91

92153

BOLT,FLANGED,8X16

92153-1995

$4.09

92153A

BOLT,SOCKET,8X20

92153-1996

Unavailable
