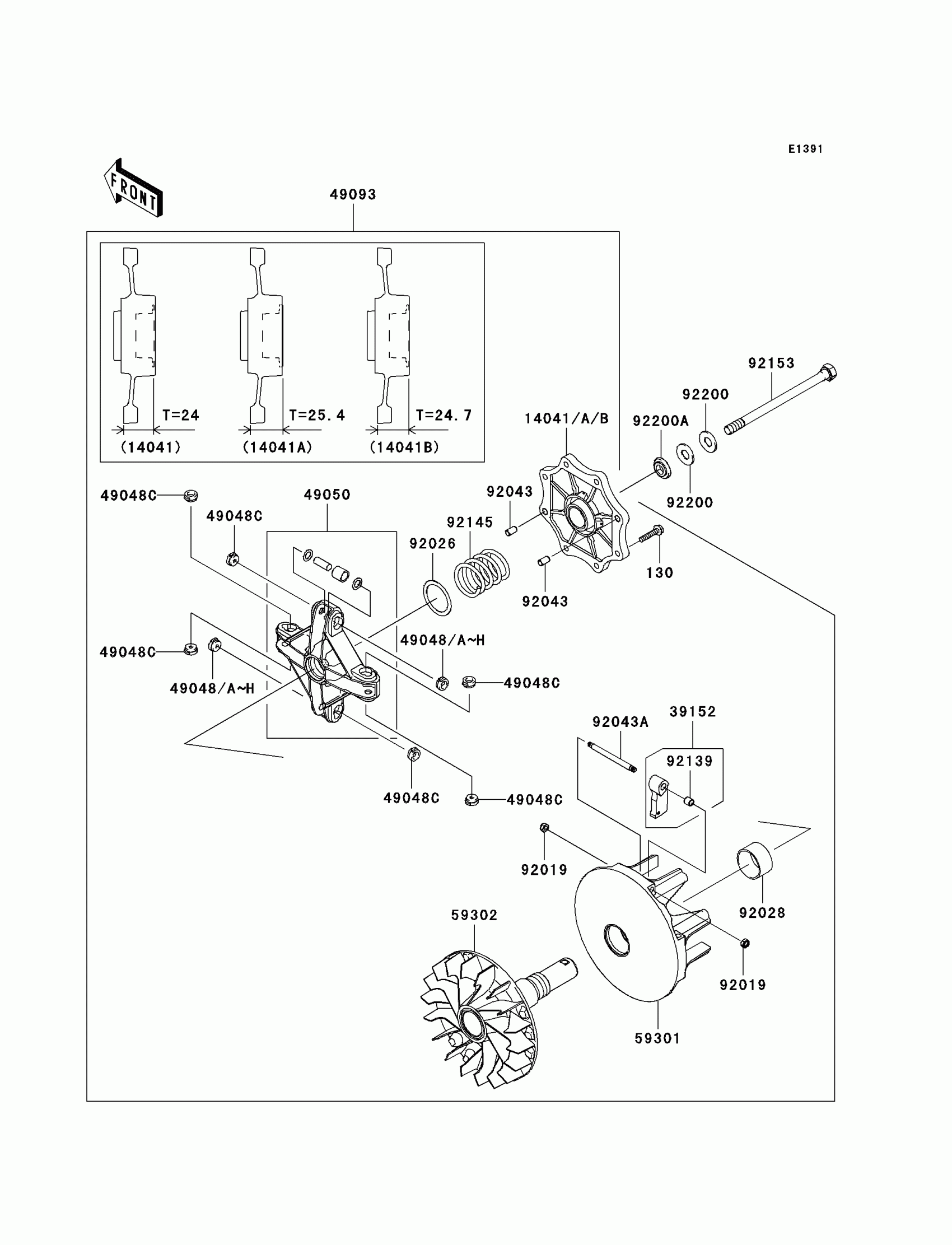

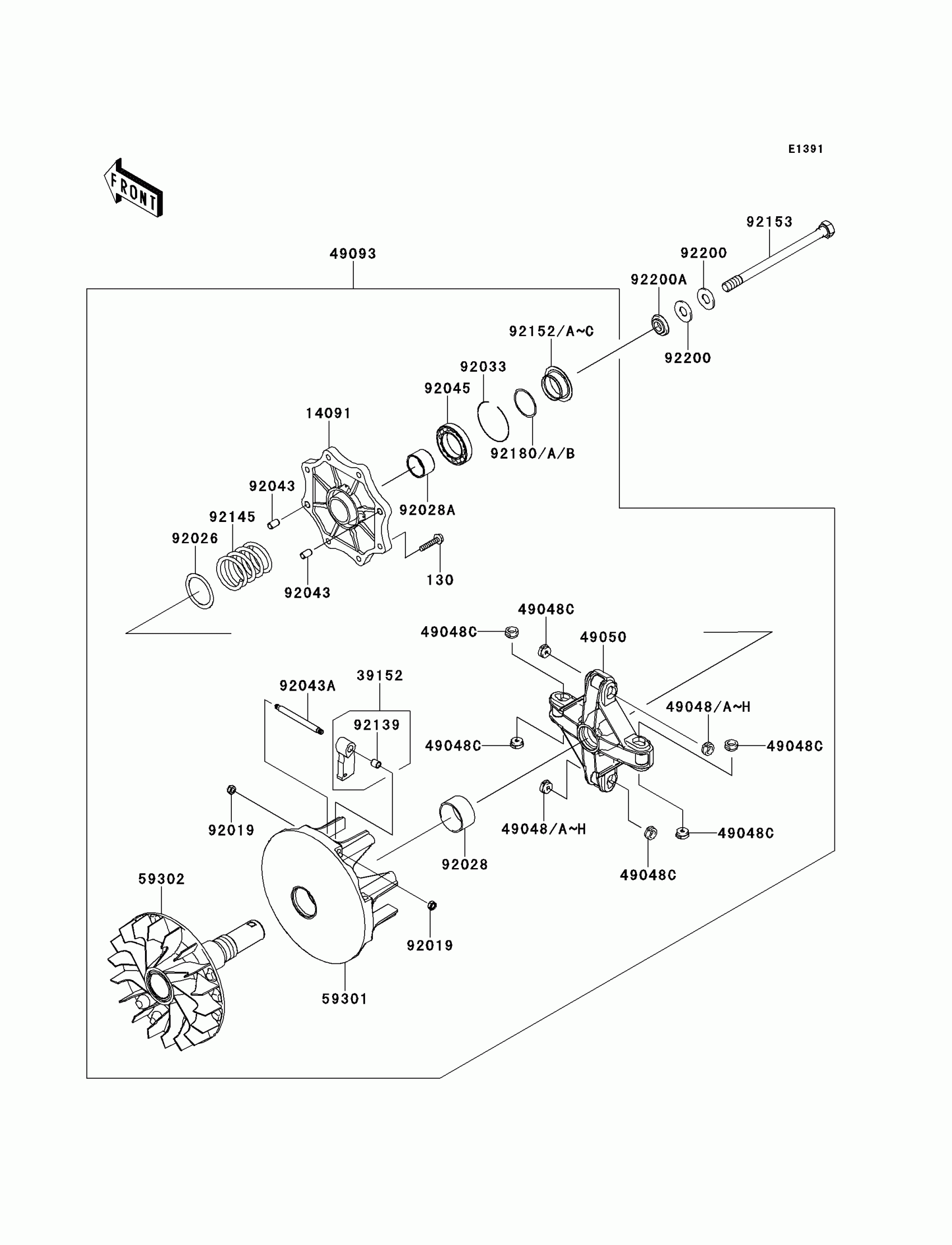

Kawasaki Teryx® 750 FI 4x4 Drive Converter Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130CA0630

$2.49

14041

COVER-COMP,RED

14041-0035

Unavailable

14041A

COVER-COMP,BLUE

14041-0036

Unavailable

14041B

COVER-COMP,STD

14041-0037

Unavailable

39152

WEIGHT-RAMP

39152-0026

$57.84

49048

SHOE,T=7.2

49048-1087

Unavailable

49048A

SHOE,T=7.3

49048-1088

Unavailable

49048B

SHOE,T=7.4

49048-1089

Unavailable

49048C

SHOE,T=7.5

49048-1090

$14.82

49048D

SHOE,T=7.6

49048-1091

Unavailable

49048E

SHOE,T=7.7

49048-1092

Unavailable

49048F

SHOE,T=7.8

49048-1093

Unavailable

49048G

SHOE,T=7.9

49048-1094

Unavailable

49048H

SHOE,T=8.0

49048-1095

Unavailable

49050

SPIDER

49050-0016

$146.69

49093

CONVERTER-ASSY-DRIVE

49093-0029

Unavailable

59301

SHEAVE-MOVABLE

59301-0007

$235.19

59302

SHEAVE-COMP

59302-0021

Unavailable

92019

NUT,LOCK,6MM

92019-008

$4.26

92026

SPACER,39X49.5X1.0

92026-1603

$7.63

92028

BUSHING

92028-1975

$12.80

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN

92043-1688

$13.60

92139

BUSHING

92139-0215

$10.21

92145

SPRING

92145-1465

$26.76

92153

BOLT,12X180

92153-1726

$27.82

92200

WASHER,SPRING

92200-1504

$4.18

92200A

WASHER

92200-1634

$9.07
