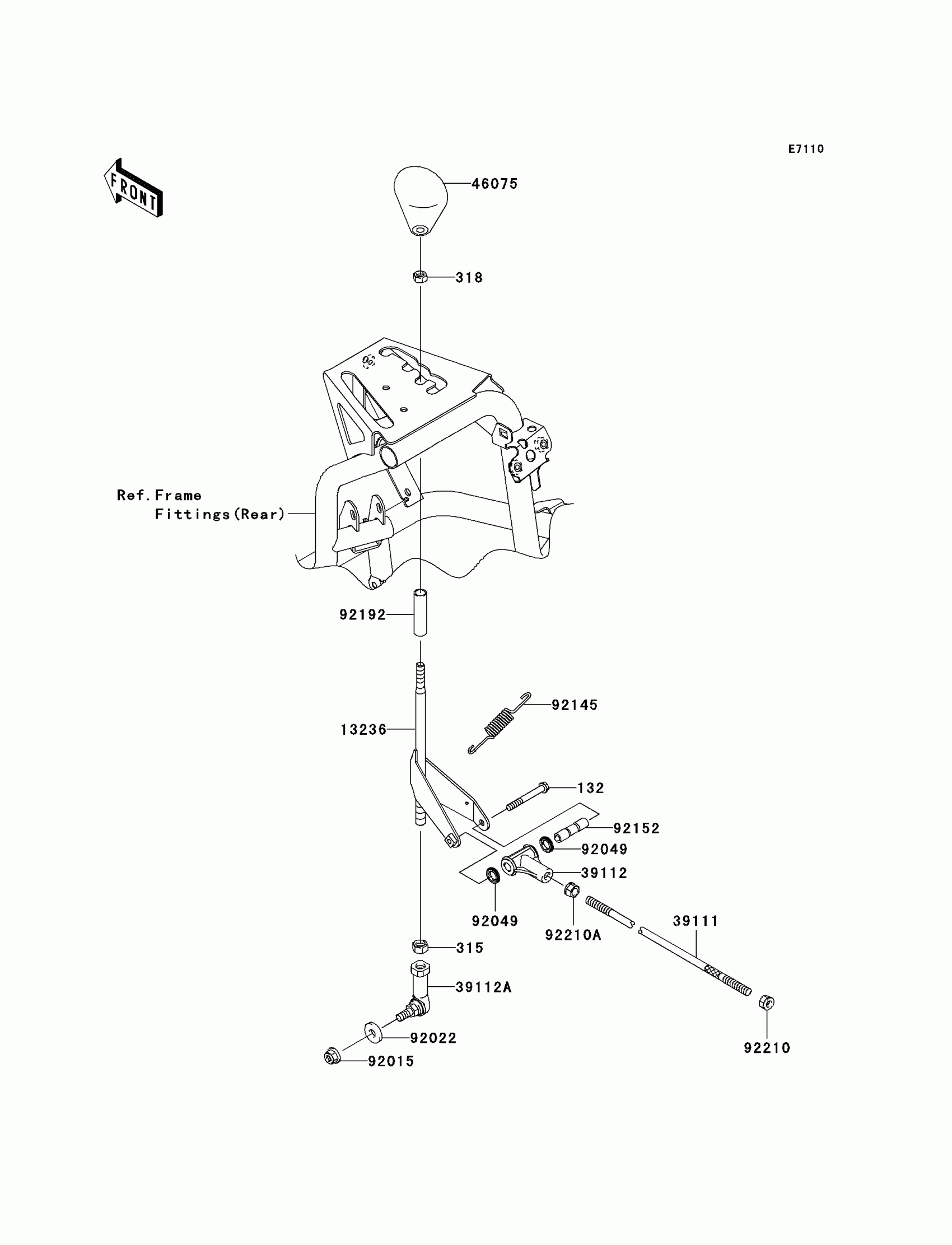

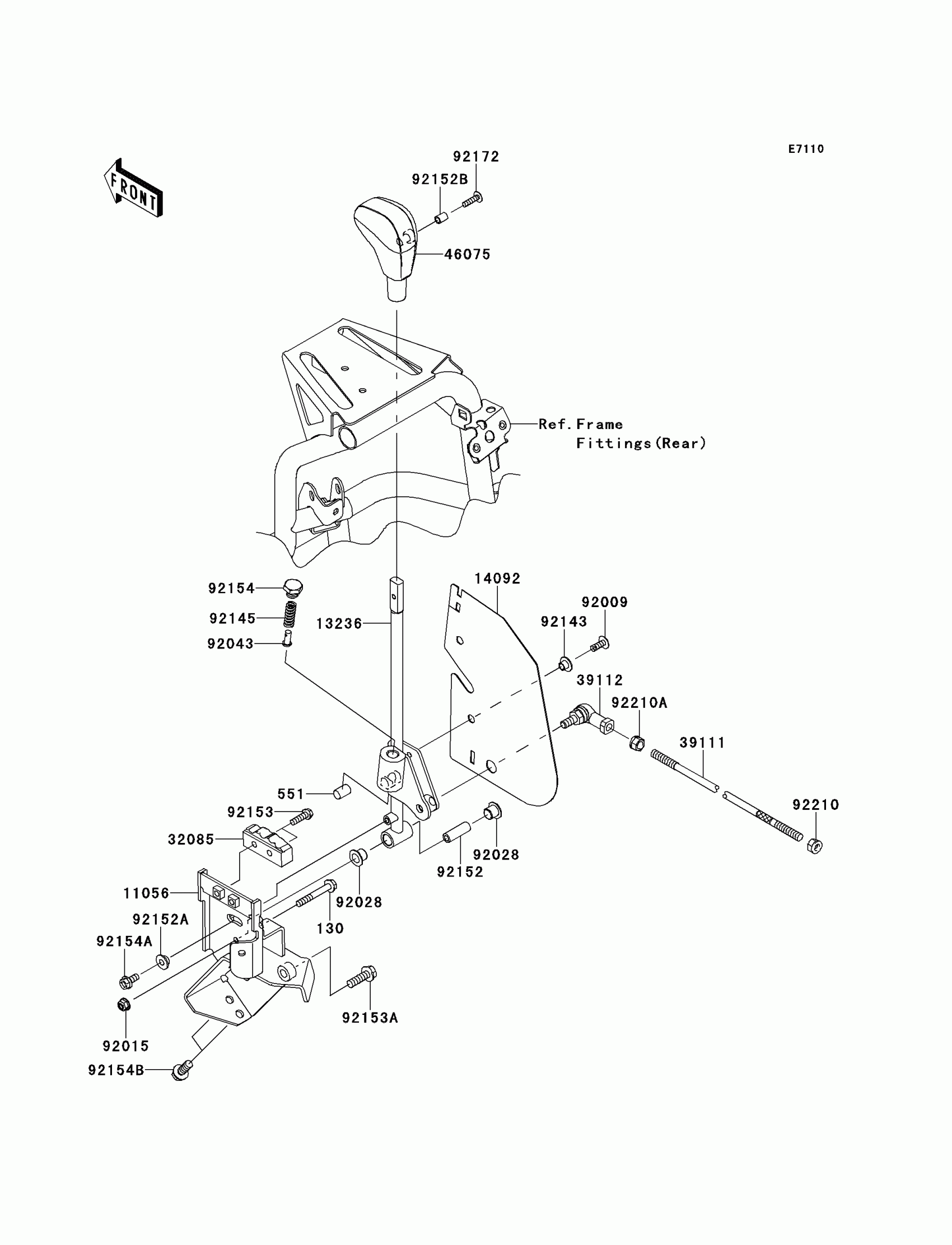

Kawasaki TERYX® 750 FI 4x4 Control Diagram
#
Description
Price
130
BOLT-FLANGED,6X45
130CA0645
$1.47
551
PIN-DOWEL,10X16
551R1016
$6.27
11056
BRACKET,SHIFT
11056-2058
$70.28
13236
LEVER-COMP
13236-0728
$87.11
14092
COVER,CONTROL LEVER
14092-1045
$15.25
32085
STOPPER
32085-0731
$5.60
39111
ROD-TIE
39111-0040
$17.79
39112
RODEND-TIE
39112-0014
Unavailable
46075
GRIP
46075-0569
$22.85
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92028
BUSHING
92028-1507
$5.25
92043
PIN,6X11
92043-092
$4.69
92143
COLLAR
92143-1057
$5.00
92145
SPRING
92145-0940
$3.95
92152
COLLAR,6.0X10X30
92152-1518
$6.63
92152A
COLLAR,6.15X10.15X6
92152-1535
$3.74
92152B
COLLAR,5.6X8X10.5
92152-1545
$2.67
92153
BOLT,M6X20
92153-1114
$2.43
92153A
BOLT,FLANGED,8X25
92153-1768
$3.90
92154
BOLT,12X10
92154-0197
$3.33
92154A
BOLT,FLANGED,6X14
92154-0482
$1.63
92154B
BOLT,FLANGED,8X20
92154-0885
$2.32
92172
SCREW,5X20
92172-2081
$0.73
92210
NUT,8MM
92210-1242
$2.41
92210A
NUT,LH,THREAD 8MM
92210-1284
$2.80
