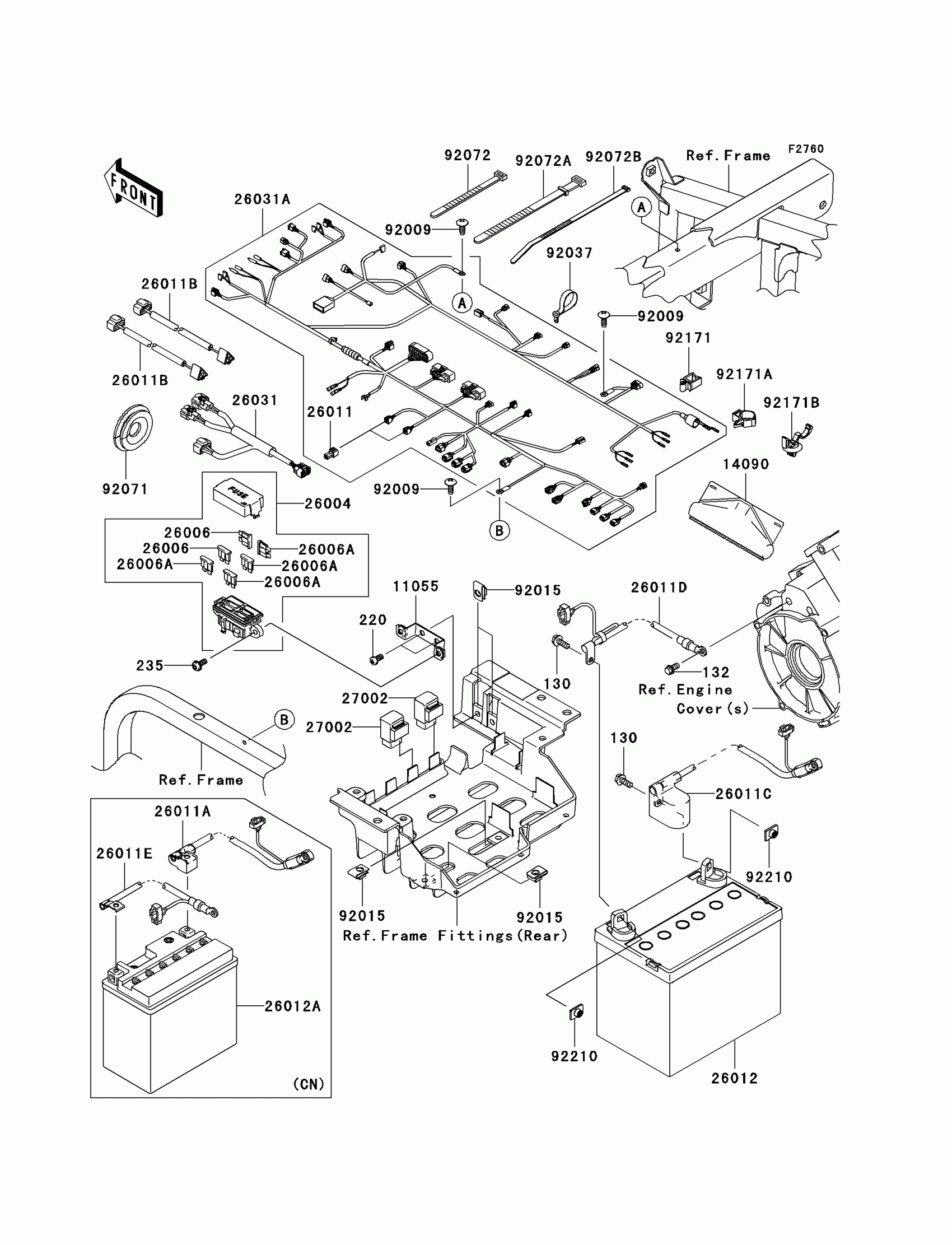

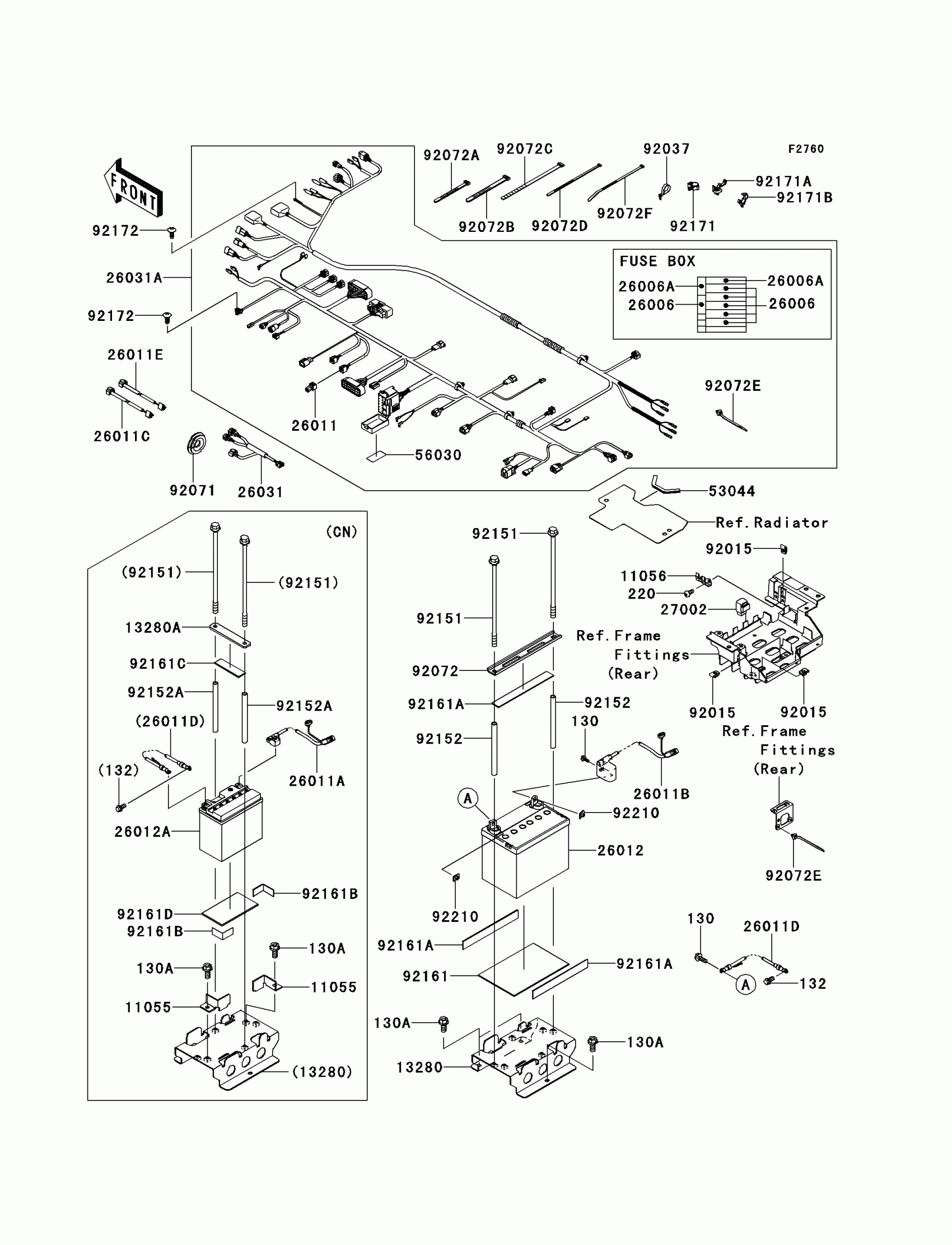

Kawasaki TERYX® 750 FI 4x4 Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,FUSE BOX

11056-1518

$6.20

13280

HOLDER,BATTERY

13280-0361

$18.77

26006

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD

26011-0037

$13.02

26011C

WIRE-LEAD,HEAD LAMP,LH

26011-0276

$58.61

26011D

WIRE-LEAD,BATTERY(-)

26011-0753

$67.78

26011E

WIRE-LEAD,HEAD LAMP,RH

26011-0759

$50.58

26031

HARNESS,SUB

26031-0752

$84.03

26031A

HARNESS,MAIN

26031-1263

$601.76

27002

RELAY-ASSY

27002-1062

$45.39

53044

TRIM

53044-0564

$7.24

56030

LABEL,FUSE

56030-0753

$5.05

92015

NUT,6MM

92015-1602

$7.34

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92071

GROMMET

92071-0030

$3.73

92072A

BAND,L=123

92072-030

$5.00

92072B

BAND,L=149

92072-031

$5.00

92072C

BAND,L=218

92072-032

$5.00

92072D

BAND,L=186

92072-056

$5.00

92072E

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072F

BAND,L=292.1

92072-3509

Unavailable

92151

BOLT,8X177

92151-1788

$19.30

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

220

SCREW-PAN-CROS,6X12

220AA0612

$1.19

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171B

CLAMP,13MM DIA.

92171-1415

$2.03

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

11055

BRACKET

11055-0433

$3.77

13280A

HOLDER,BATTERY

13280-7505

$7.00

26011A

WIRE-LEAD,BATTERY(+)

26011-0130

$32.40

26011B

WIRE-LEAD,BATTERY(+)

26011-0190

$31.80

26012

BATTERY,12V 14AH

26012-0107

Unavailable

26012A

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

Unavailable

92072

BAND,BATTERY,UPP

92072-0128

$16.81

92152

COLLAR,10.22X12.7X158.8

92152-0794

$17.78

92152A

COLLAR,10.2X12.7X150.6

92152-0841

$17.78

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,8X18

130BA0818

$2.55

130A

BOLT-FLANGED,8X18

130BA0818

$2.55

92161

DAMPER

92161-0578

$4.25

92161A

DAMPER

92161-0579

$2.52

92161B

DAMPER

92161-0580

$2.40

92161C

DAMPER,88X25X4

92161-0844

Unavailable

92161D

DAMPER,130X74X4

92161-0846

Unavailable

92171A

CLAMP

92171-0453

$3.54

92171A

CLAMP

92171-0453

$3.54

92210

NUT,PLATE,6MM

92210-1352

$2.41
