Description

Price

11054

BRACKET,TAIL GATE

11054-1064

$14.06

11054A

BRACKET

11054-1065

$42.37

11054B

BRACKET

11054-1066

$9.92

11054C

BRACKET

11054-1159

$4.12

13272

PLATE,CARRIER,FR

13272-0464

$229.69

13272A

PLATE,CARRIER,LH

13272-0692

$176.57

13272B

PLATE,CARRIER,RH

13272-0694

$176.57

13272C

PLATE,HEAT GUARD

13272-0719

$93.88

14090

COVER,COUPLER

14090-1611

$8.51

14091

COVER,TAIL GATE,W.GREEN

14091-1593-286

$87.52

14091A

COVER,TAIL GATE,BLACK

14091-1593-839

$82.03

16073

INSULATOR

16073-0085

$42.34

16073A

INSULATOR

16073-0086

$42.34

27012

HOOK

27012-0113

$9.58

27012A

HOOK

27012-0133

$9.58

27012B

HOOK,CARRIER DUMP LOCK

27012-0156

$10.62

27012C

HOOK,CARRIER DUMP LOCK

27012-0167

$61.76

32085

STOPPER

32085-0103

$3.99

32085A

STOPPER

32085-0104

$4.12

32085B

STOPPER

32085-0145

$9.58

35034

REINFORCE

35034-0102

$83.55

41072

NUT,6MM

41072-007

$3.92

53029

CARRIER

53029-0082

Unavailable

53045

HOOK-ASSY,TAIL GATE

53045-0004

$29.74

53045A

HOOK-ASSY

53045-1063

$23.47

53062

GATE-TAIL

53062-0014

$113.81

53064

NET-CARGO

53064-0011

Unavailable

92004

STUD,8X13.5

92004-0034

$3.84

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,8MM

92015-1357

Unavailable

92039

RIVET

92039-1256

$2.75

92043

PIN,12.4X72.4

92043-0168

$8.26

92071

GROMMET

92071-1010

$4.65

92072

BAND,L=123

92072-030

$5.00

92145

SPRING,LH

92145-0653

$4.63

92145A

SPRING,RH

92145-0654

$4.63

92152

COLLAR,6.3X9.5X8

92152-0621

$3.59

92161

DAMPER,GAS SPRINGS

92161-0451

$41.28

92161A

DAMPER

92161-0550

$0.53

92161B

DAMPER

92161-0698

$1.89

130

BOLT-FLANGED,6X12

130BB0612

$2.34

130A

BOLT-FLANGED,6X14

130BB0614

$2.49

130B

BOLT-FLANGED,6X18

130BB0618

$1.81

130C

BOLT-FLANGED,6X65

130BB0665

$4.45

130D

BOLT-FLANGED,8X20

130BB0820

$0.84

554

PIN-SNAP,12MM

554DA1200

$3.96

92161C

DAMPER

92161-0774

$1.89

92171

CLAMP

92171-0453

$3.54

92172

SCREW,TAPPING,4X16

92172-0347

$1.78

92200

WASHER,13X24X2

92200-0451

$2.97

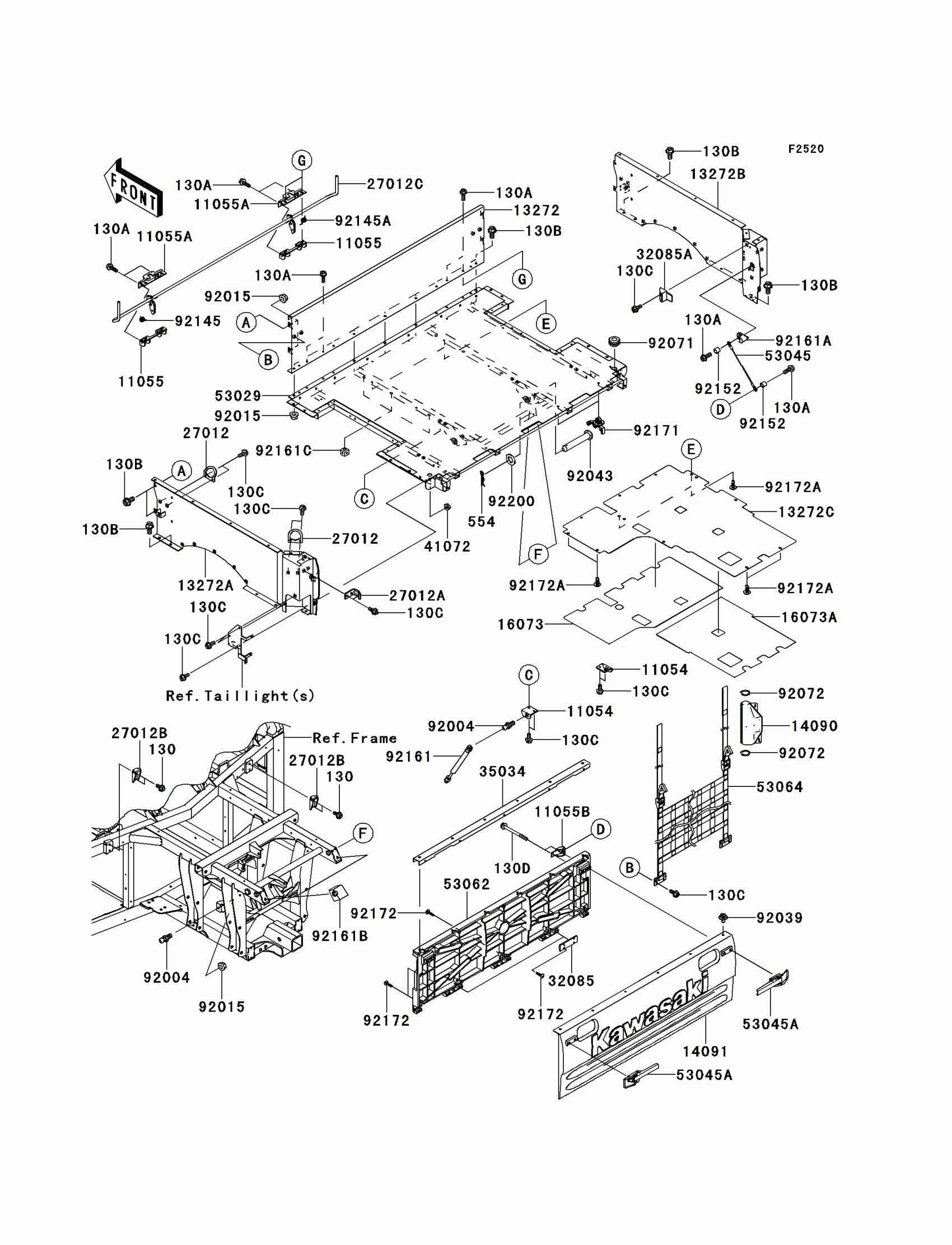

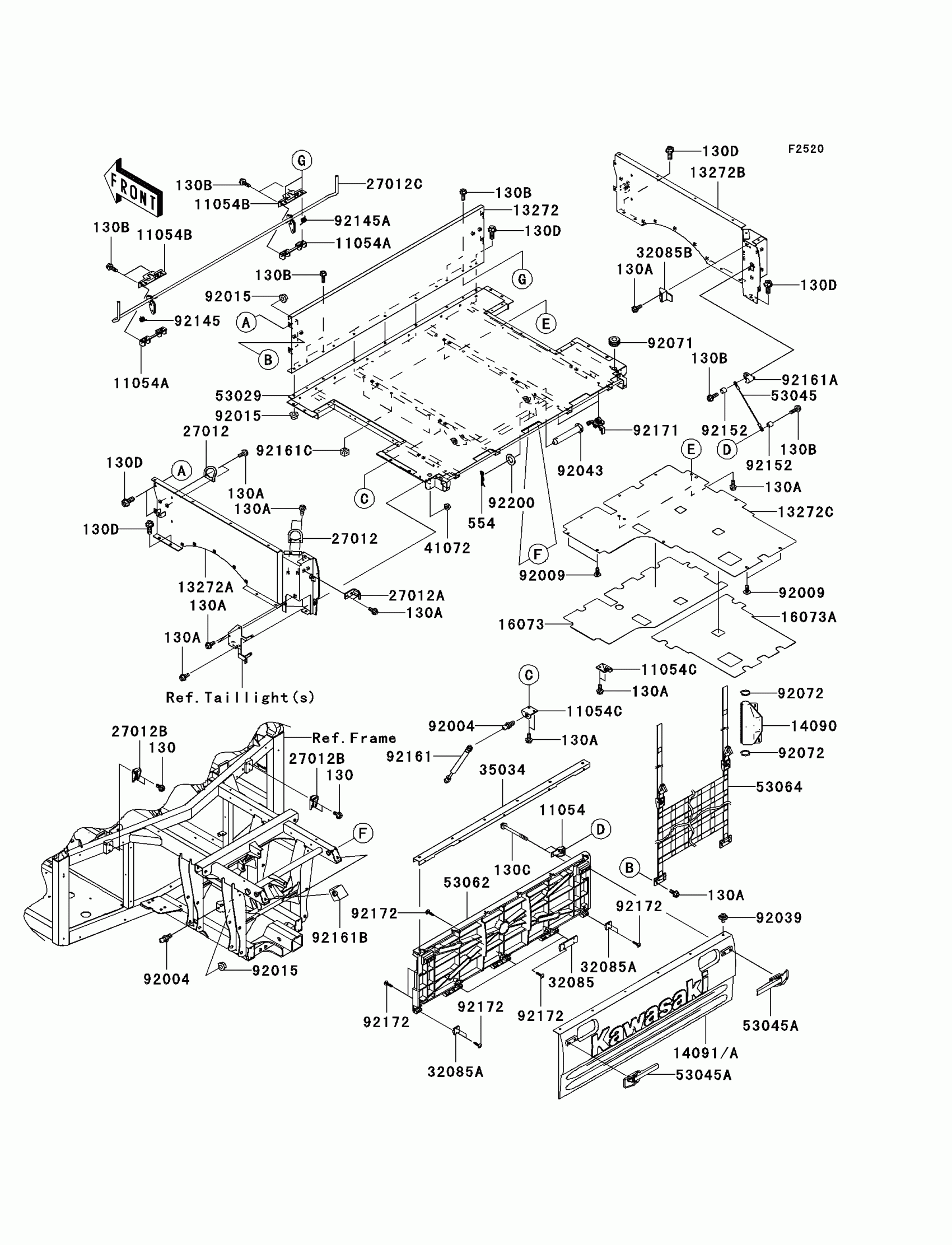

Kawasaki Teryx® 750 FI 4x4 Carrier(s) Diagram

BRACKET,TAIL GATE

BRACKET

BRACKET

BRACKET

PLATE,CARRIER,FR

PLATE,CARRIER,LH

PLATE,CARRIER,RH

PLATE,HEAT GUARD

COVER,COUPLER

COVER,TAIL GATE,W.GREEN

COVER,TAIL GATE,BLACK

INSULATOR

INSULATOR

HOOK

HOOK

HOOK,CARRIER DUMP LOCK

HOOK,CARRIER DUMP LOCK

STOPPER

STOPPER

STOPPER

REINFORCE

NUT,6MM

CARRIER

HOOK-ASSY,TAIL GATE

HOOK-ASSY

GATE-TAIL

NET-CARGO

STUD,8X13.5

SCREW,TAPPING,6X16

NUT,8MM

RIVET

PIN,12.4X72.4

GROMMET

BAND,L=123

SPRING,LH

SPRING,RH

COLLAR,6.3X9.5X8

DAMPER,GAS SPRINGS

DAMPER

DAMPER

BOLT-FLANGED,6X12

BOLT-FLANGED,6X14

BOLT-FLANGED,6X18

BOLT-FLANGED,6X65

BOLT-FLANGED,8X20

PIN-SNAP,12MM

DAMPER

CLAMP

SCREW,TAPPING,4X16

WASHER,13X24X2
