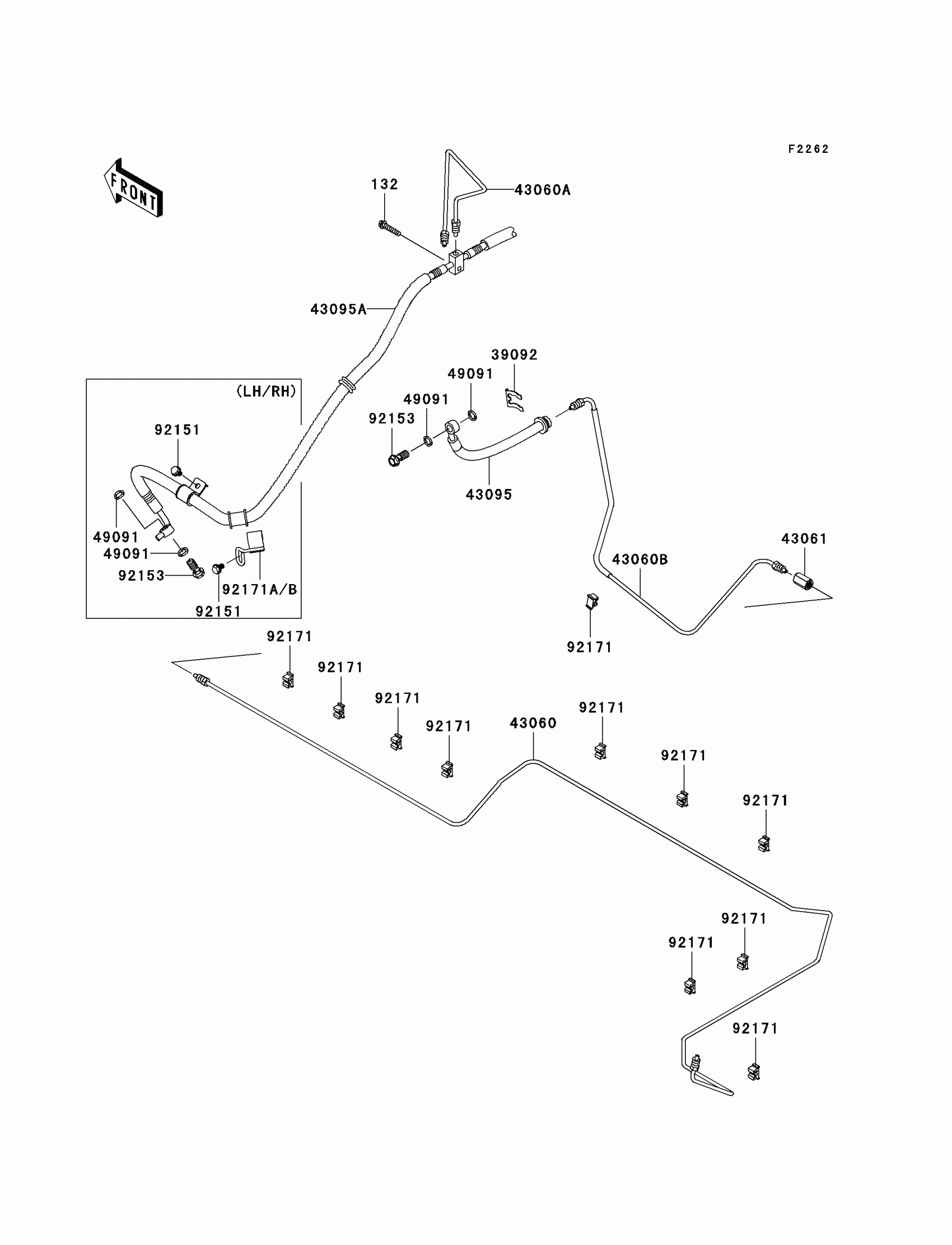

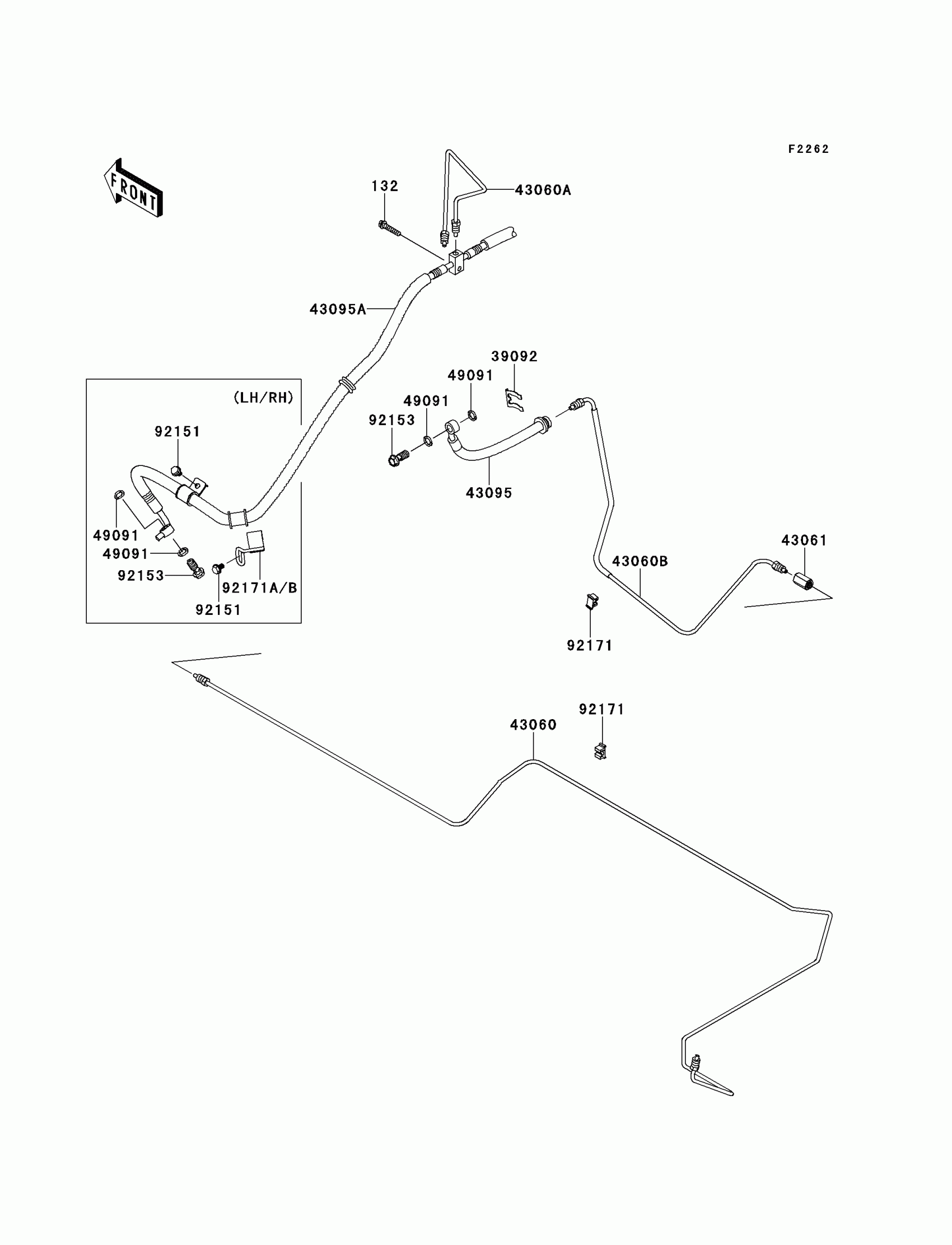

Kawasaki Teryx® 750 FI 4x4 Brake Piping Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X30

132BB0630

$3.14

39092

PIN-HAIR

39092-1052

$6.07

43060

PIPE-BRAKE,RR,RR

43060-0054

$41.94

43060A

PIPE-BRAKE,FR

43060-0058

$33.71

43060B

PIPE-BRAKE,RR,FR

43060-0066

$33.71

43061

JOINT-BRAKE

43061-0003

$47.25

43095

HOSE-BRAKE,RR

43095-0313

Unavailable

43095A

HOSE-BRAKE,FR

43095-0429

$155.77

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92151

BOLT,6X10

92151-1344

$1.76

92153

BOLT,OIL,L=23

92153-0627

$4.15

92171

CLAMP

92171-0805

$3.51

92171A

CLAMP,BRAKE HOSE,LH

92171-1841

$8.85

92171B

CLAMP,BRAKE HOSE,RH

92171-1842

$8.85
