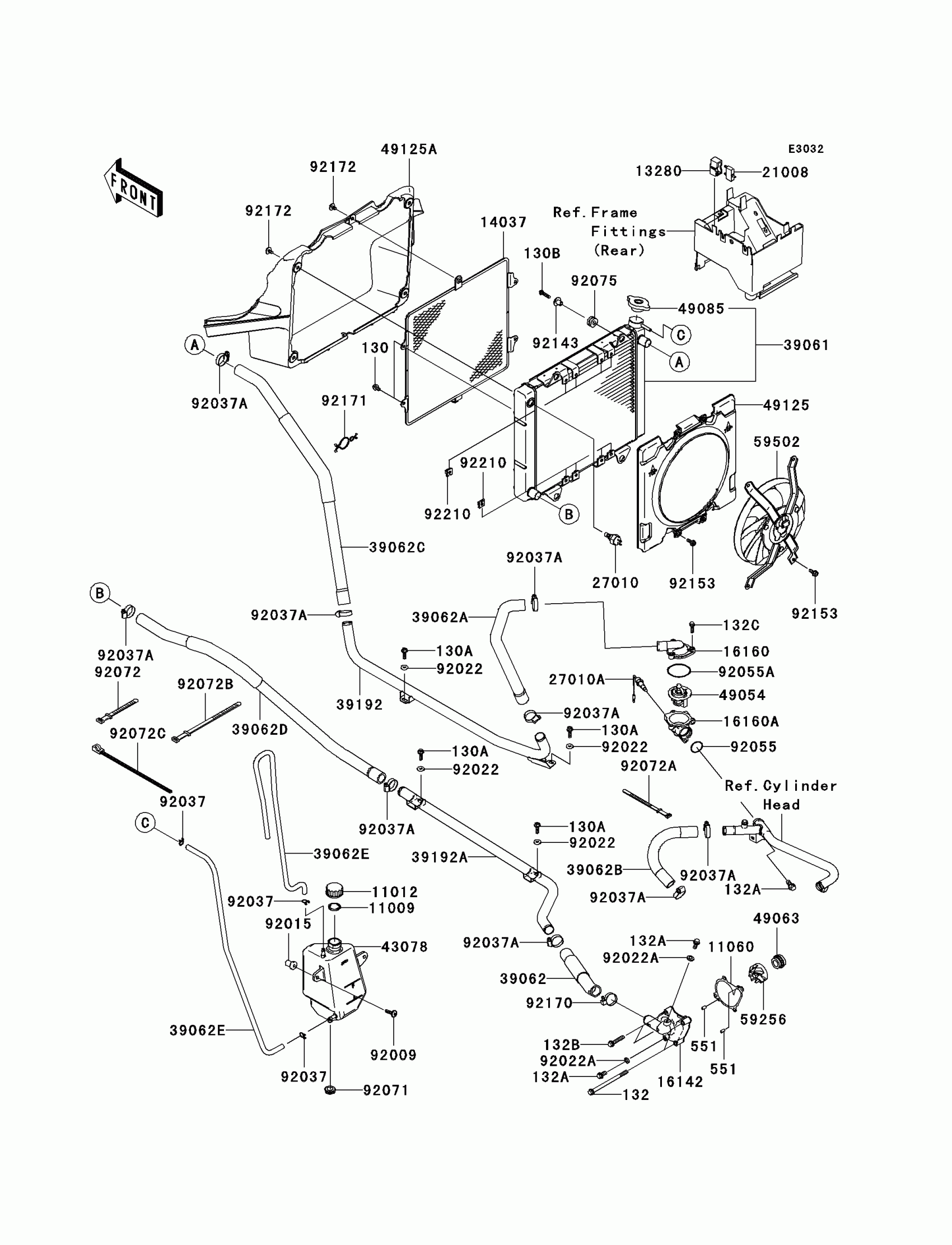

Kawasaki Teryx® 750 4x4 NRA OUTDOORS™ Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.49

11012

CAP

11012-1084

$1.72

11060

GASKET,WATER PUMP

11060-1964

$7.58

13280

HOLDER,BREAKER

13280-0082

$5.60

14037

SCREEN

14037-0080

$126.16

16142

COVER-PUMP,WATER

16142-0002

$83.66

16160

BODY,THERMOSTAT,UPP

16160-0046

$68.33

16160A

BODY,THERMOSTAT,LWR

16160-1092

$79.09

21008

BREAKER,RAD.FAN,12A

21008-0006

Unavailable

27010

SWITCH,FAN

27010-0091

$107.75

27010A

SWITCH,SENSOR WATER

27010-1346

$120.07

39061

RADIATOR-ASSY

39061-0127

$487.89

39062

HOSE-COOLING,RAD.-W/P

39062-0174

$11.06

39062A

HOSE-COOLING,THERMO-RH PIPE

39062-0177

$12.27

39062B

HOSE-COOLING,FR HEAD-THERMO

39062-0184

$13.50

39062C

HOSE-COOLING,RH PIPE-RAD.

39062-0209

$33.80

39062D

HOSE-COOLING,RAD.-LH PIPE

39062-0210

$33.80

39062E

HOSE-COOLING,5.5X10.5X730

39062-0242

$12.38

39192

PIPE-WATER,RH

39192-0106

$70.68

39192A

PIPE-WATER,LH

39192-0107

$70.68

43078

RESERVOIR

43078-0041

$54.40

49054

THERMOSTAT

49054-1055

$54.56

49063

SEAL-MECHANICAL

49063-1055

$20.06

49085

CAP-ASSY-PRESSURE

49085-0005

$45.60

49125

SHROUD

49125-0031

$34.86

49125A

SHROUD

49125-0032

$44.47

59256

IMPELLER

59256-1069

$21.38

59502

FAN-ASSY

59502-0039

$368.70

92009

SCREW,6X25

92009-1465

$3.92

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92022

WASHER,6.5X16X2

92022-1342

$3.92

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,COOLING HOSE

92037-1589

$18.57

92055

RING-O,22.1X2.4

92055-1081

$3.55

92055A

RING-O,44.7X2.4

92055-1279

$7.34

92071

GROMMET

92071-0020

$4.28

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=218

92072-032

$5.00

130

BOLT-FLANGED,6X10

130BB0610

$2.49

130A

BOLT-FLANGED,6X20

130BB0620

$1.49

130B

BOLT-FLANGED,6X25

130BB0625

$2.80

132

BOLT-FLANGED-SMALL,6X90

132BB0690

$6.83

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

132B

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

132C

BOLT-FLANGED-SMALL,6X20

132E0620

Unavailable

551

PIN-DOWEL,4X8

551A0408

$1.49

92072C

BAND,L=250

92072-1237

$2.14

92075

DAMPER RUBBER,RR FENR

92075-209

$4.69

92143

COLLAR

92143-1353

$8.58

92153

BOLT

92153-0531

$2.61

92170

CLAMP

92170-1497

$13.00

92171

CLAMP

92171-1736

$5.92

92172

SCREW,6X10

92172-0005

$2.41

92210

NUT

92210-1323

$4.18
