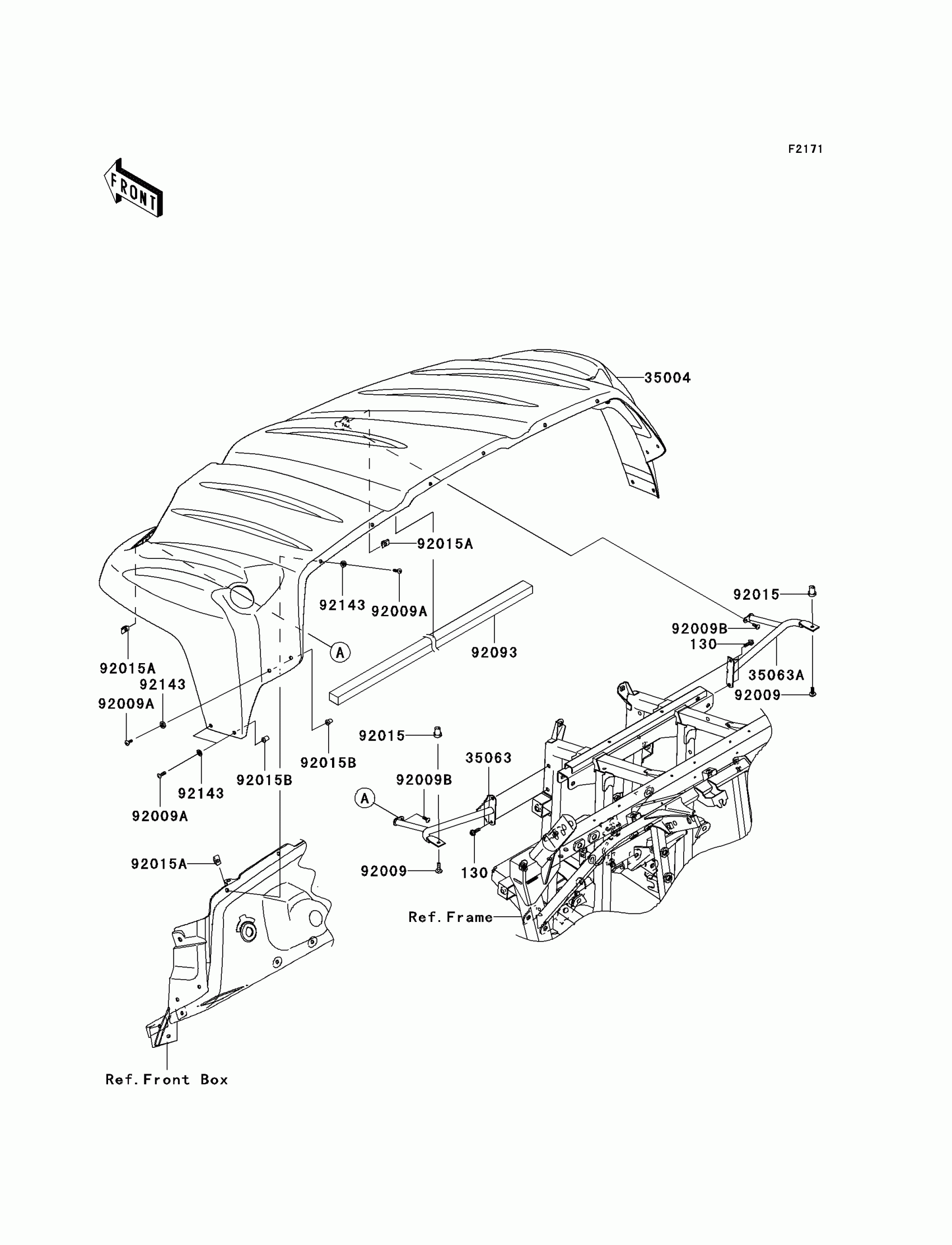

Kawasaki Teryx® 750 4x4 NRA OUTDOORS™ Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CA0620

$1.70

35004

FENDER-FRONT,CAMOUFLAGE

35004-0077-16P

$752.77

35063

STAY,FRONT FENDER,LH

35063-0420

Unavailable

35063A

STAY,FRONT FENDER,RH

35063-0421

$82.56

92009

SCREW,6X22,BLACK

92009-1256

$2.78

92009A

SCREW,5X20,BLACK

92009-1656

$3.96

92009B

SCREW,5X16

92009-3797

$2.67

92015

NUT,RUBBER,6MM

92015-1692

$7.34

92015A

NUT,5MM

92015-1710

$6.22

92015B

NUT,WELL,5MM

92015-1757

$7.29

92093

SEAL

92093-0141

$35.25

92143

COLLAR

92143-1087

$4.31
