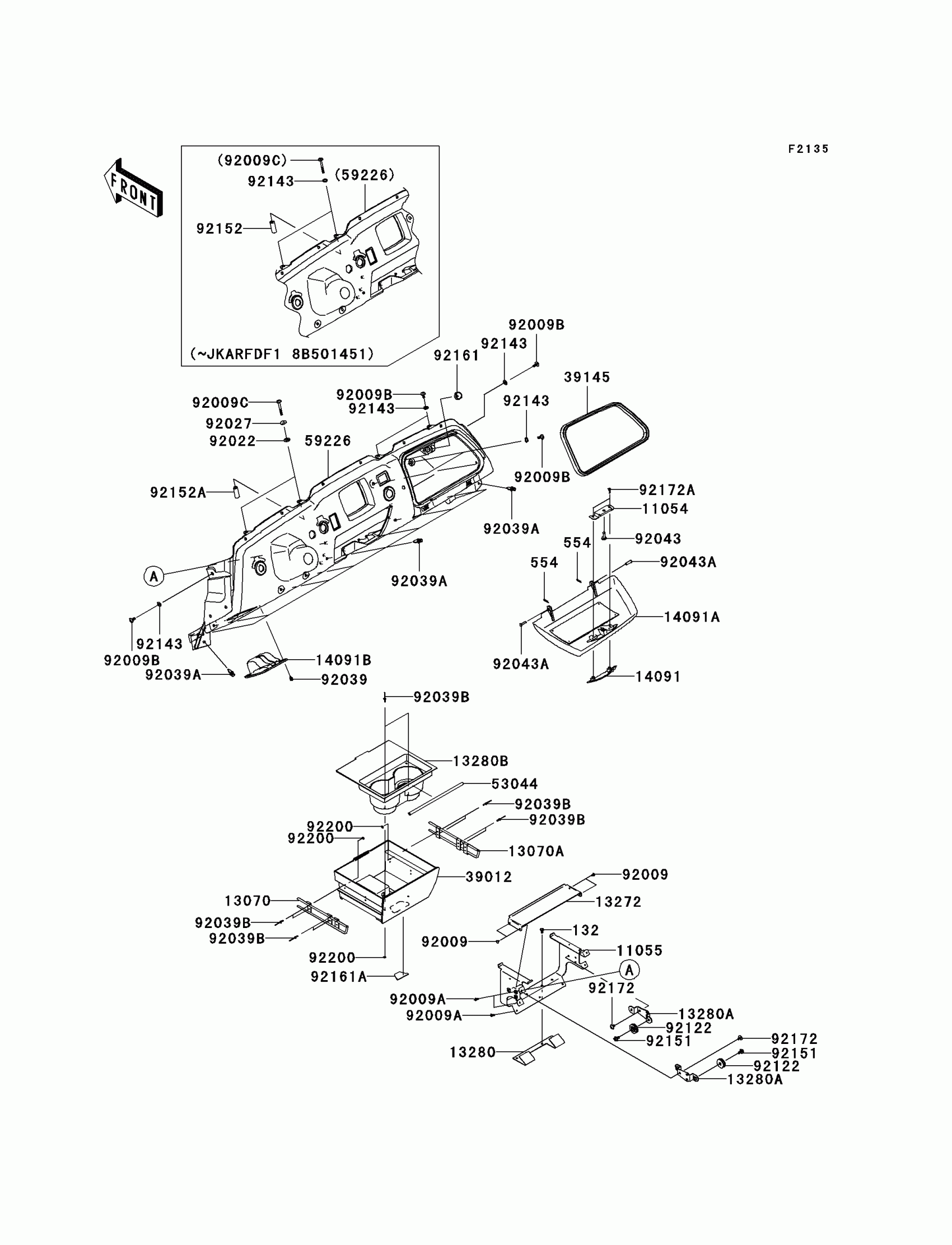

Kawasaki Teryx® 750 4x4 NRA OUTDOORS™ Front Box Diagram
#
132
BOLT-FLANGED-SMALL,6X10
132BB0610
$2.49
554
PIN-SNAP,1.2X21.2
554DA0600
$0.95
11054
BRACKET
11054-1789
$4.65
11055
BRACKET
11055-0901
$41.45
13070
GUIDE,CUP HOLDER,LH
13070-0098
$38.17
13070A
GUIDE,CUP HOLDER,RH
13070-0099
$38.17
13272
PLATE,CUP HOLDER
13272-0446
$6.26
13280
HOLDER,LWR
13280-0210
$18.77
13280A
HOLDER
13280-0289
$13.04
13280B
HOLDER
13280-0296
$11.64
14091
COVER,STORAGE CAP,F.BLACK
14091-0700-6Z
$6.22
14091A
COVER,STORAGE,CAMOUFLAGE
14091-0922-16P
$67.60
14091B
COVER,LH,CAMOUFLAGE
14091-0923-16P
$24.80
39012
CASE-STORAGE,CAMOUFLAGE
39012-0025-16P
$53.79
39145
TRIM-SEAL,L=940
39145-0029
$19.92
53044
TRIM,L=256.6
53044-0043
$12.87
59226
PANEL-CONTROL,CAMOUFLAGE
59226-0013-16P
$367.62
92009
SCREW,TAPPING,4X8
92009-1155
$2.97
92009A
SCREW,TAPPING,4X12
92009-1444
$3.21
92009B
SCREW,6X16
92009-1621
Unavailable
92009C
SCREW,6X56
92009-1829
$2.58
92022
WASHER,10.5X20X1
92022-239
$3.92
92027
COLLAR,L=4.7
92027-1964
$7.34
92039
RIVET
92039-0046
$3.90
92039A
RIVET
92039-1229
$1.19
92039B
RIVET
92039-1231
$1.81
92043
PIN
92043-0138
$8.75
92043A
PIN,6X23
92043-0164
$4.69
92122
ROLLER
92122-0024
$4.67
92143
COLLAR
92143-1087
$4.31
92151
BOLT,FLANGED,6X13
92151-1703
$3.94
92152
COLLAR,7.48X14.28X42
92152-0508
Unavailable
92152A
COLLAR,7.95X15.88X40
92152-0777
$5.37
92161
DAMPER
92161-0568
$1.19
92161A
DAMPER,CUP HOLDER
92161-0653
$3.97
92172
SCREW,6X10
92172-0005
$2.41
92172A
SCREW,TAPPING,4X16
92172-0347
$1.78
92200
WASHER,3.5X8X1
92200-1251
$1.00
