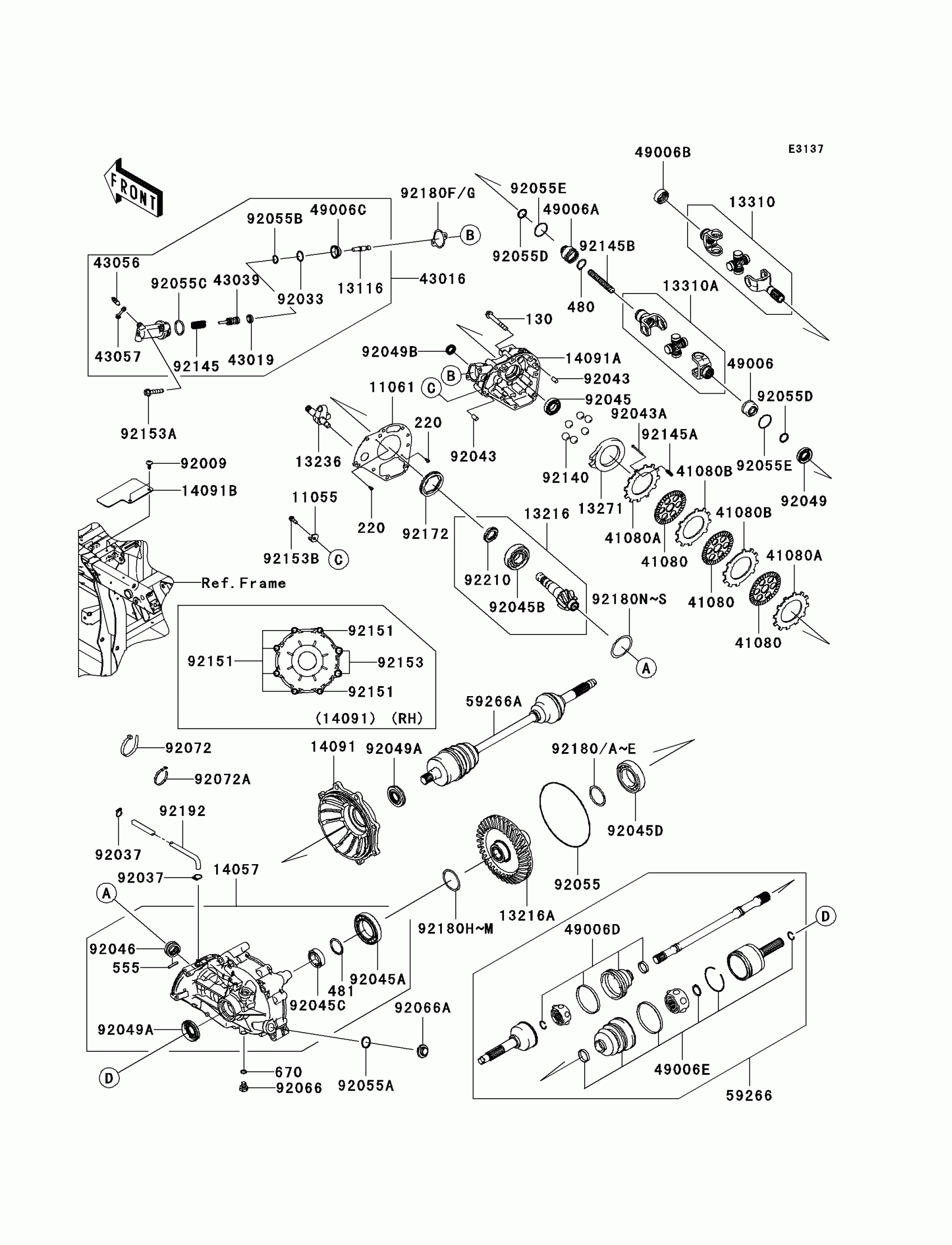

Kawasaki Teryx® 750 4x4 NRA OUTDOORS™ Drive Shaft-Rear Diagram

#

Description
Price

11055

BRACKET

11055-0372

$2.47

11061

GASKET,FR COVER

11061-0270

$29.29

13116

ROD-PUSH

13116-0026

$38.57

13216

GEAR-COMP,8T

13216-0025

$219.45

13216A

GEAR-COMP,35T

13216-0026

$337.17

13236

LEVER-COMP

13236-0126

$128.45

13271

PLATE,CAM

13271-0539

Unavailable

13310

SHAFT-ASSY,ENG SIDE

13310-0018

$248.70

13310A

SHAFT-ASSY,GEAR ASSY SIDE

13310-0019

Unavailable

14057

CASE-COMP-GEAR

14057-0003

$270.66

14091

COVER,RH

14091-0677

$136.14

14091A

COVER,FR

14091-0678

$178.25

14091B

COVER

14091-0998

$16.51

41080

DISC,FRICTION

41080-1482

$45.10

41080A

DISC,PRESSURE

41080-1483

$14.78

41080B

DISC,SEPARATER

41080-1484

$14.78

43016

CYLINDER-MASTER

43016-0041

Unavailable

43019

CUP-BRAKE

43019-0002

$4.92

43039

PISTON-BRAKE

43039-0006

$42.76

43056

BREATHER-BRAKE

43056-0005

$16.64

43057

CAP-BREATHER

43057-1001

$3.89

49006

BOOT

49006-0008

$3.26

49006A

BOOT

49006-0010

$13.21

49006B

BOOT

49006-0021

$14.73

49006C

BOOT

49006-0072

$9.86

49006D

BOOT,BJ

49006-0084

$103.04

49006E

BOOT,DOJ

49006-0085

Unavailable

59266

JOINT-BALL,LH

59266-0018

Unavailable

59266A

JOINT-BALL,RH

59266-0019

$713.85

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92033

RING-SNAP

92033-0055

$3.49

92037

CLAMP-HOSE

92037-1104

$1.27

92043

PIN,8X14

92043-1567

$1.88

92043A

PIN,3X35

92043-1617

$2.00

92045

BEARING-BALL,#6005

92045-0077

Unavailable

92045A

BEARING-BALL,55X90X18

92045-0078

Unavailable

92045B

BEARING-BALL,BX30-1C3 UR3

92045-0099

Unavailable

92045C

BEARING-BALL,60/28

92045-0111

Unavailable

92045D

BEARING-BALL,6210CM

92045-1213

$50.20

92046

BEARING-NEEDLE,AH502802

92046-0024

$26.15

92049

SEAL-OIL,HTGY 24X45X9.5

92049-0028

$9.46

92049A

SEAL-OIL,28X60X7

92049-0089

$13.35

92049B

SEAL-OIL,TC17X28X6

92049-1537

$9.36

92055

RING-O,190.2X4.2

92055-0121

$19.14

92055A

RING-O

92055-0122

$3.11

92055B

RING-O

92055-0146

$4.95

92055C

RING-O

92055-0147

$7.61

92055D

RING-O,18X24X3

92055-1633

$4.90

92055E

RING-O,30X35X2.5

92055-1693

$4.90

92066

PLUG,DRAIN,10X12

92066-0085

$3.64

92066A

PLUG

92066-1303

$10.27

92072

BAND,L=218

92072-032

$3.97

92072A

BAND,L=186

92072-056

$3.97

92140

BALL,D/O#12

92140-1064

$1.98

92145

SPRING

92145-0583

$16.51

92145A

SPRING,RR BRAKE

92145-1301

$1.59

92145B

SPRING,PROPELLER SHAFT

92145-1304

$2.61

92151

BOLT,10X35

92151-1909

$2.63

92153

BOLT,12X35

92153-0311

$3.75

92153A

BOLT,FLANGED,8X40

92153-1727

$7.69

92153B

BOLT,FLANGED-SMALL,6X16

92153-1729

$1.81

92172

SCREW,SET,75X10

92172-0371

$47.69

92180

SHIM,50.2X60X1.2

92180-0243

$5.81

92180A

SHIM,50.2X60X1.0

92180-0244

$5.81

92180B

SHIM,50.2X60X0.8

92180-0245

$5.81

92180C

SHIM,50.2X60X0.5

92180-0246

$5.81

92180D

SHIM,50.2X60X0.2

92180-0247

$5.81

92180E

SHIM,50.2X60X0.15

92180-0248

$5.81

92180F

SHIM,T=1.0

92180-0250

$9.31

92180G

SHIM,T=0.5

92180-0251

$9.31

92180H

SHIM,55X64X0.15

92180-1417

$5.08

92180I

SHIM,55X64X0.20

92180-1418

$5.08

92180J

SHIM,55X64X0.50

92180-1419

$4.59

92180K

SHIM,55X64X0.80

92180-1420

$5.08

92180L

SHIM,55X64X1.00

92180-1421

$5.08

92180M

SHIM,55X64X1.20

92180-1422

$5.08

92180N

SHIM,60X72X0.15

92180-1423

$7.54

92180O

SHIM,60X72X0.20

92180-1424

$6.09

92180P

SHIM,60X72X0.50

92180-1425

$7.54

92180Q

SHIM,60X72X0.80

92180-1426

$6.09

130

BOLT-FLANGED,8X60

130CD0860

$3.36

220

SCREW-PAN-CROS,4X8

220AA0408

$0.73

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.71

481

CIRCLIP-TYPE-C,52MM

481J5200

$3.92

555

PIN-SPRING

555A0428

$1.85

670

O RING,10MM

670B2010

$1.31

92180R

SHIM,60X72X1.00

92180-1427

$7.54

92180S

SHIM,60X72X1.20

92180-1428

$7.54

92192

TUBE,7X12X1113

92192-0558

$18.29

92210

NUT,30MM

92210-1294

$41.60
