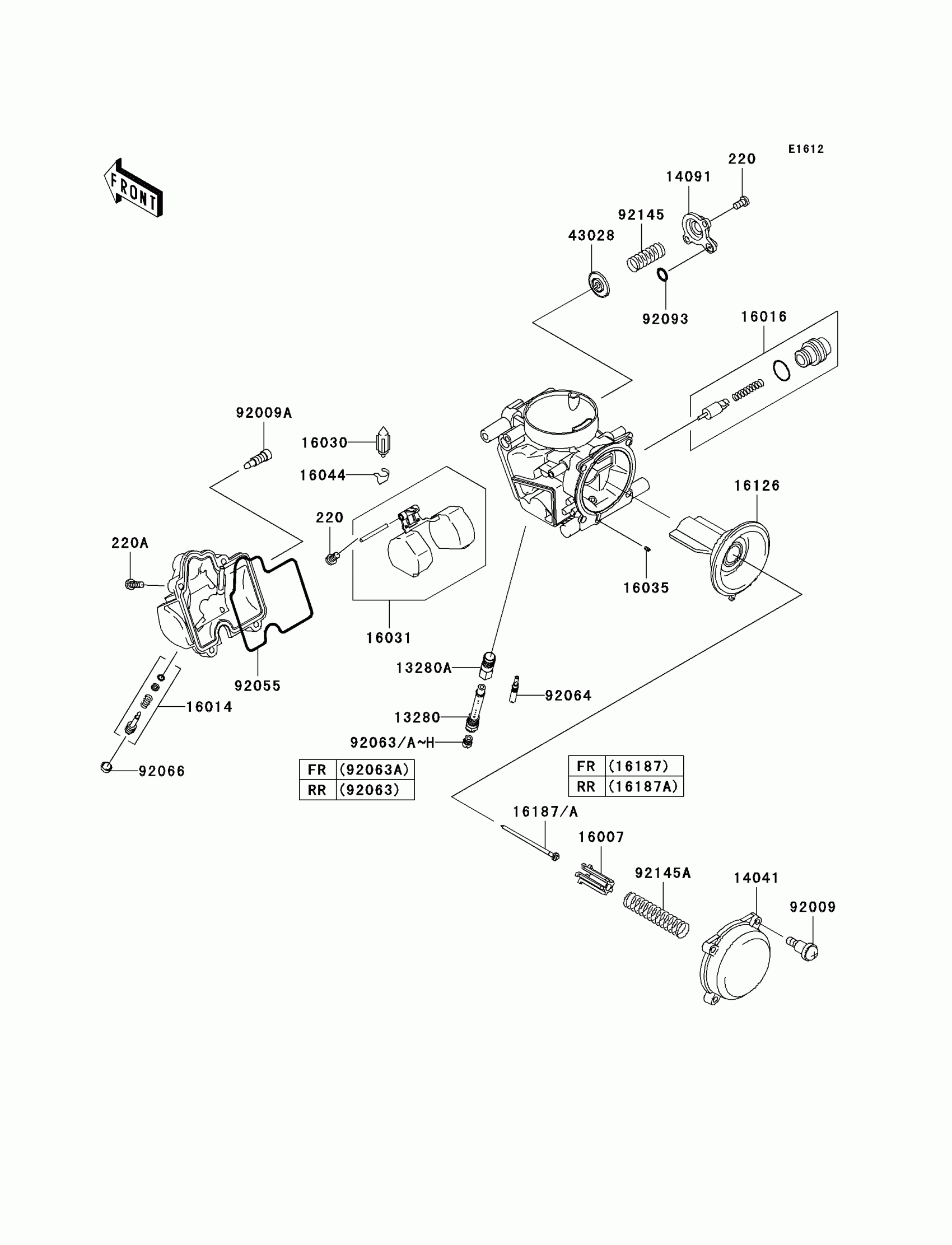

Kawasaki Teryx® 750 4x4 NRA OUTDOORS™ Carburetor Parts Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X8

220AA0408

$0.73

220A

SCREW-PAN-CROS,4X14

220AA0414

$3.65

13280

HOLDER

13280-0115

Unavailable

13280A

HOLDER,JET

13280-1096

$26.99

14041

CAP-CHAMBER,MIXING

14041-1091

$62.06

14091

COVER,AIR CUT VALVE

14091-1246

$33.67

16007

SEAT-SPRING,VALVE

16007-1117

$23.01

16014

SCREW-PILOT AIR

16014-0009

$19.29

16016

PLUNGER

16016-1117

$59.00

16030

VALVE-FLOAT

16030-1007

$43.50

16031

FLOAT

16031-1097

$53.44

16035

JET-AIR,LEAK

16035-1055

$12.44

16044

CLAMP,FLOAT VALVE

16044-007

$6.30

16126

VALVE

16126-0015

$188.04

16187

NEEDLE-JET,N3RL,FR

16187-0281

$42.03

16187A

NEEDLE-JET,NFCH,RR

16187-0282

$42.03

43028

DIAPHRAGM,AIR CUT VALVE

43028-1085

$24.38

92009

SCREW,4X4.4

92009-1549

$4.16

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.86

92055

RING-O,FLOAT CHAMBER

92055-1589

$30.03

92063

JET-MAIN,#140

92063-1013

$11.16

92063A

JET-MAIN,#135

92063-1014

$11.16

92063B

JET-MAIN,#138

92063-1015

$11.16

92063C

JET-MAIN,#142

92063-1016

$13.39

92063D

JET-MAIN,#145

92063-1017

$11.16

92063E

JET-MAIN,#125

92063-1069

$14.02

92063F

JET-MAIN,#128

92063-1074

$13.39

92063G

JET-MAIN,#130

92063-1075

$13.39

92063H

JET-MAIN,#132

92063-1076

$13.39

92064

JET-PILOT,#38

92064-0011

$14.65

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$4.01

92093

SEAL-"U"RING

92093-1046

$5.15

92145

SPRING,AIR CUT VALVE,RR

92145-0097

$8.66

92145A

SPRING,VACUUM VALVE

92145-1064

$30.53
