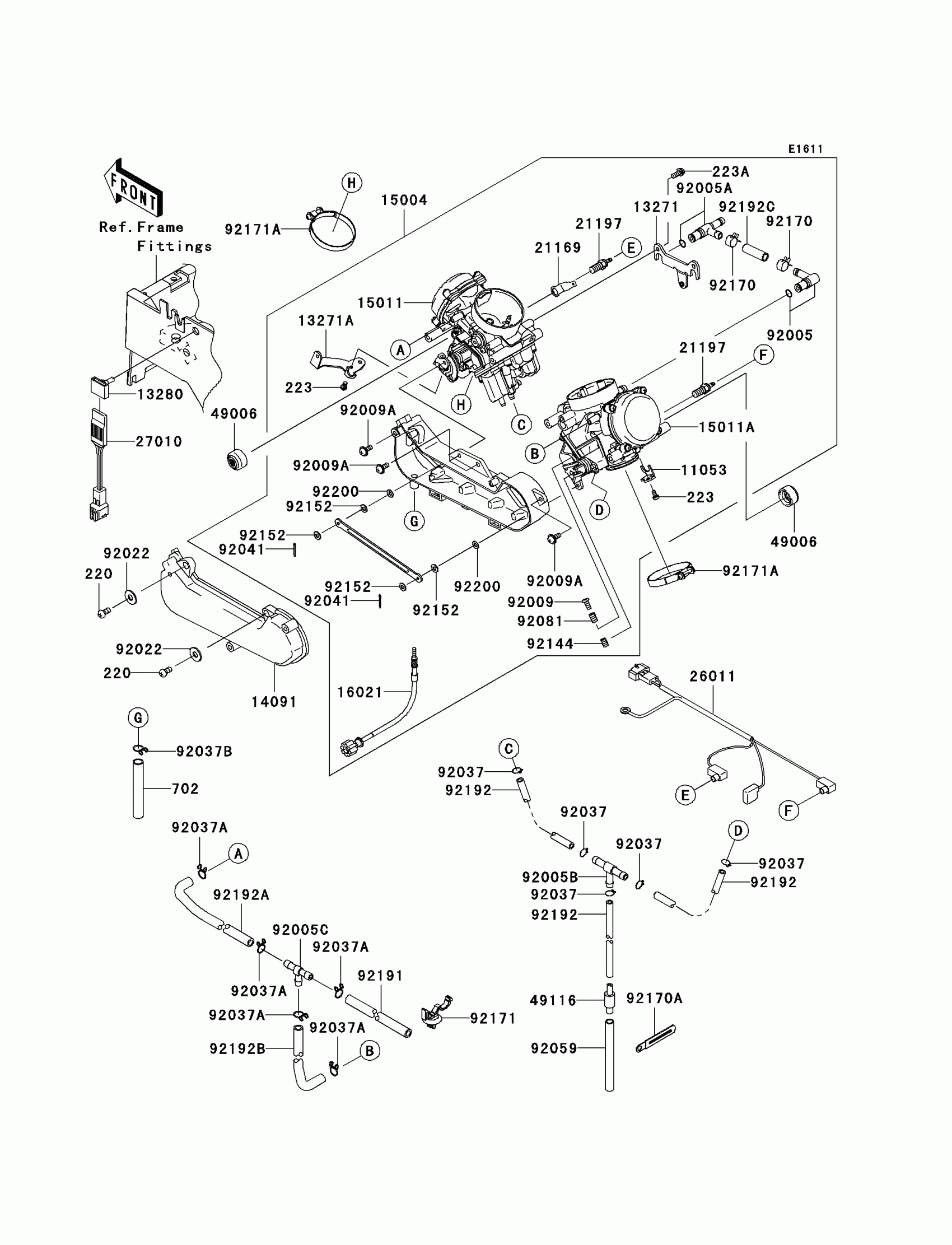

Kawasaki Teryx® 750 4x4 NRA OUTDOORS™ Carburetor Diagram

#

Description
Price

11053

BRACKET

11053-1606

$9.09

13271

PLATE

13271-0750

$13.60

13271A

PLATE

13271-0751

$11.53

13280

HOLDER,CARBURETOR

13280-1253

$4.34

14091

COVER

14091-0360

$7.94

15004

CARBURETOR-ASSY,CVKR34

15004-0017

$1,460.55

15011

CARBURETOR,FR

15011-0126

Unavailable

15011A

CARBURETOR,RR

15011-0127

Unavailable

16021

SCREW-THROTTLE STOP

16021-0011

$69.16

21169

TERMINAL

21169-0001

$2.76

21197

HEATER

21197-1006

$106.96

26011

WIRE-LEAD

26011-0229

$36.05

27010

SWITCH

27010-0013

$108.09

49006

BOOT,STARTER CABLE

49006-1353

$3.97

49116

VALVE-ASSY

49116-1126

$20.77

92005

FITTING

92005-0029

$25.47

92005A

FITTING

92005-0030

$25.47

92005B

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005C

FITTING,T-TYPE

92005-1119

$24.61

92009

SCREW,SYNCHRONIZE

92009-1858

$2.61

92009A

SCREW

92009-1878

$2.61

92022

WASHER,5.2X13X1

92022-1380

$4.31

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,TUBE

92037-1972

$4.31

92041

COTTER

92041-1061

$4.15

92059

TUBE,7X10X100

92059-1736

$4.46

92081

SPRING

92081-1620

$4.96

92144

SPRING

92144-1451

$9.58

92152

COLLAR

92152-0268

$2.73

92170

CLAMP,TUBE

92170-1051

$8.98

92170A

CLAMP

92170-1514

$4.31

92171

CLAMP

92171-0453

$3.54

92171A

CLAMP

92171-0722

$15.20

92191

TUBE,7X11X470

92191-1531

$7.22

92192

TUBE,4.5X8X120

92192-0141

$2.55

92192A

TUBE,AIR-VENT,FR

92192-0276

$6.01

92192B

TUBE,CARB.-FITTING

92192-0454

$3.99

92192C

TUBE

92192-0606

$13.72

92200

WASHER,LINK ARM,PLASTIC

92200-1432

$2.08

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

223

SCREW-PAN-WS-CROS,4X8

223AA0408

$1.28

223A

SCREW-PAN-WS-CROS,5X14

223AA0514

$2.78

702

TUBE-RUBBER

702A09080

$3.09
