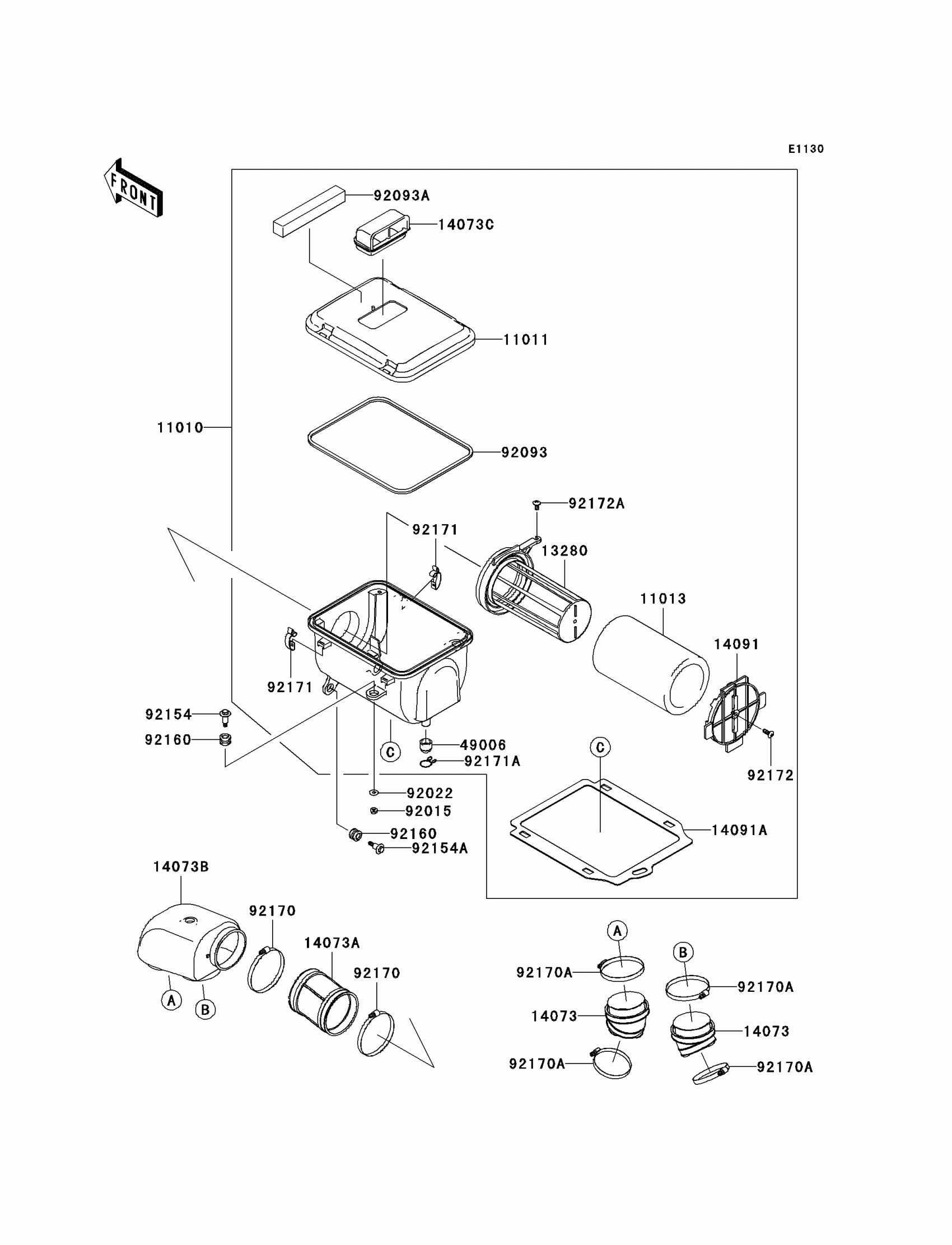

Kawasaki Teryx® 750 4x4 NRA OUTDOORS™ Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0154

$156.49

11011

CASE-AIR FILTER,UPP

11011-0120

$44.26

11013

ELEMENT-AIR FILTER

11013-0018

$10.95

13280

HOLDER

13280-0267

$14.98

14073

DUCT,JOINT

14073-0030

$9.32

14073A

DUCT,JOINT,A/C

14073-0140

$15.27

14073B

DUCT,MIDDLE

14073-0141

$44.64

14073C

DUCT

14073-0199

$8.84

14091

COVER

14091-0935

$9.04

14091A

COVER

14091-0989

$13.93

49006

BOOT,DRAIN

49006-3718

$6.62

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92093

SEAL

92093-0083

$7.87

92093A

SEAL

92093-0126

$5.05

92154

BOLT,FLANGED,6X28.7

92154-0028

$6.32

92154A

BOLT,FLANGED,6X27.5

92154-0029

$5.92

92160

DAMPER

92160-1594

$4.69

92170

CLAMP

92170-1676

$9.36

92170A

CLAMP

92170-1763

$5.70

92171

CLAMP

92171-0225

$1.97

92171A

CLAMP,BOOT

92171-3711

$3.87

92172

SCREW,6X18

92172-0130

$1.79

92172A

SCREW,6X14

92172-0131

$1.79
