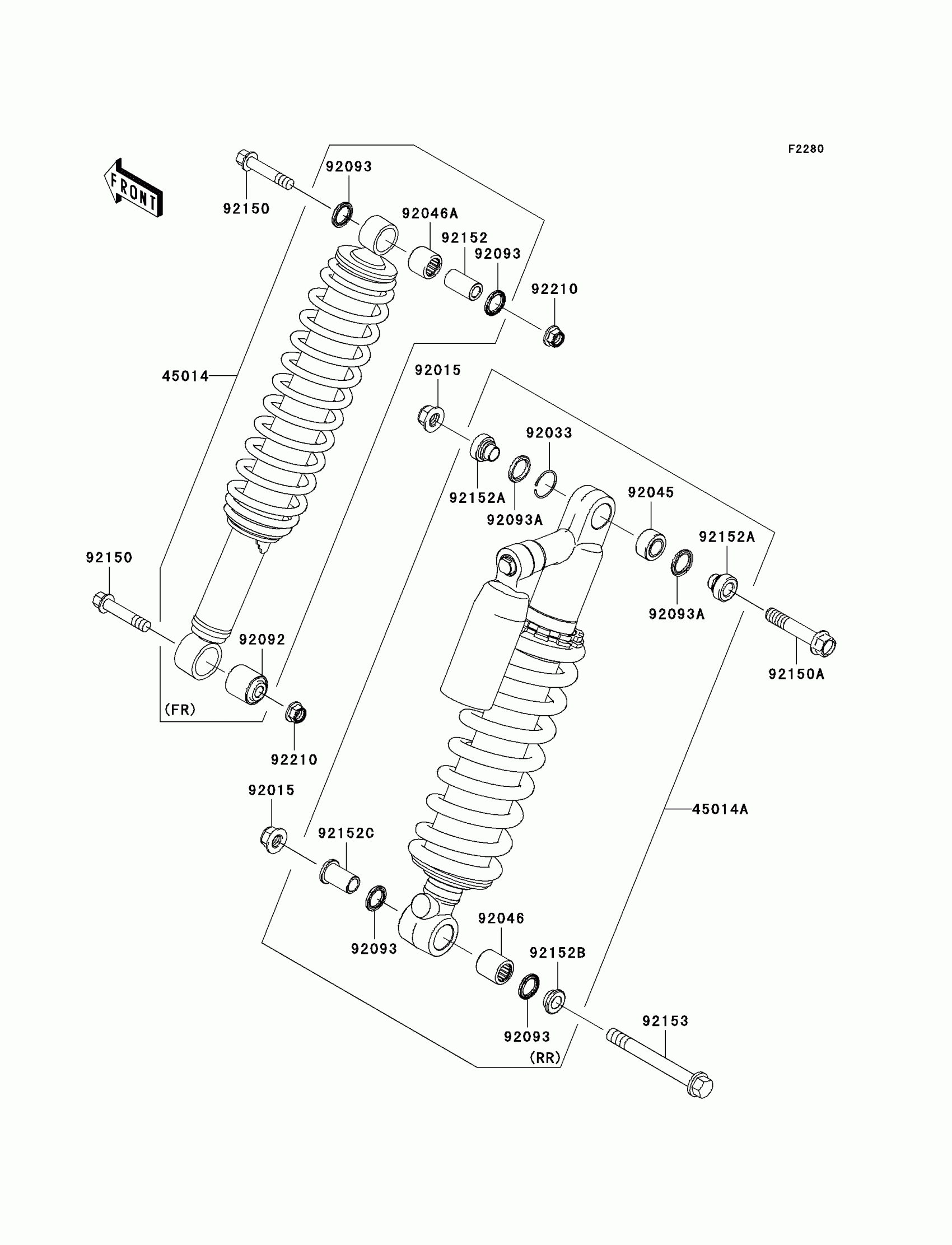

Kawasaki Teryx® 750 4x4 LE Shock Absorber(s) Diagram

Description

Price

45014

SHOCKABSORBER,FR,BLACK

45014-0232-17D

$522.26

45014A

SHOCKABSORBER,RR,BLACK

45014-0233-17D

Unavailable

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92033

RING-SNAP

92033-0054

$5.86

92045

BEARING-BALL

92045-0120

$13.42

92046

BEARING-NEEDLE

92046-0031

$21.42

92046A

BEARING-NEEDLE

92046-0032

$21.42

92092

BUSHING-RUBBER

92092-0014

$26.81

92093

SEAL

92093-0124

$9.00

92093A

SEAL

92093-0125

$9.00

92150

BOLT,FLANGED,10X50

92150-1125

$7.34

92150A

BOLT,FLANGED,12X63

92150-1258

$12.71

92152

COLLAR

92152-0635

$17.79

92152A

COLLAR

92152-0637

$17.79

92152B

COLLAR

92152-0681

$17.79

92152C

COLLAR

92152-0682

$17.79

92153

BOLT,FRANGED,12X108

92153-1741

$8.12

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61
