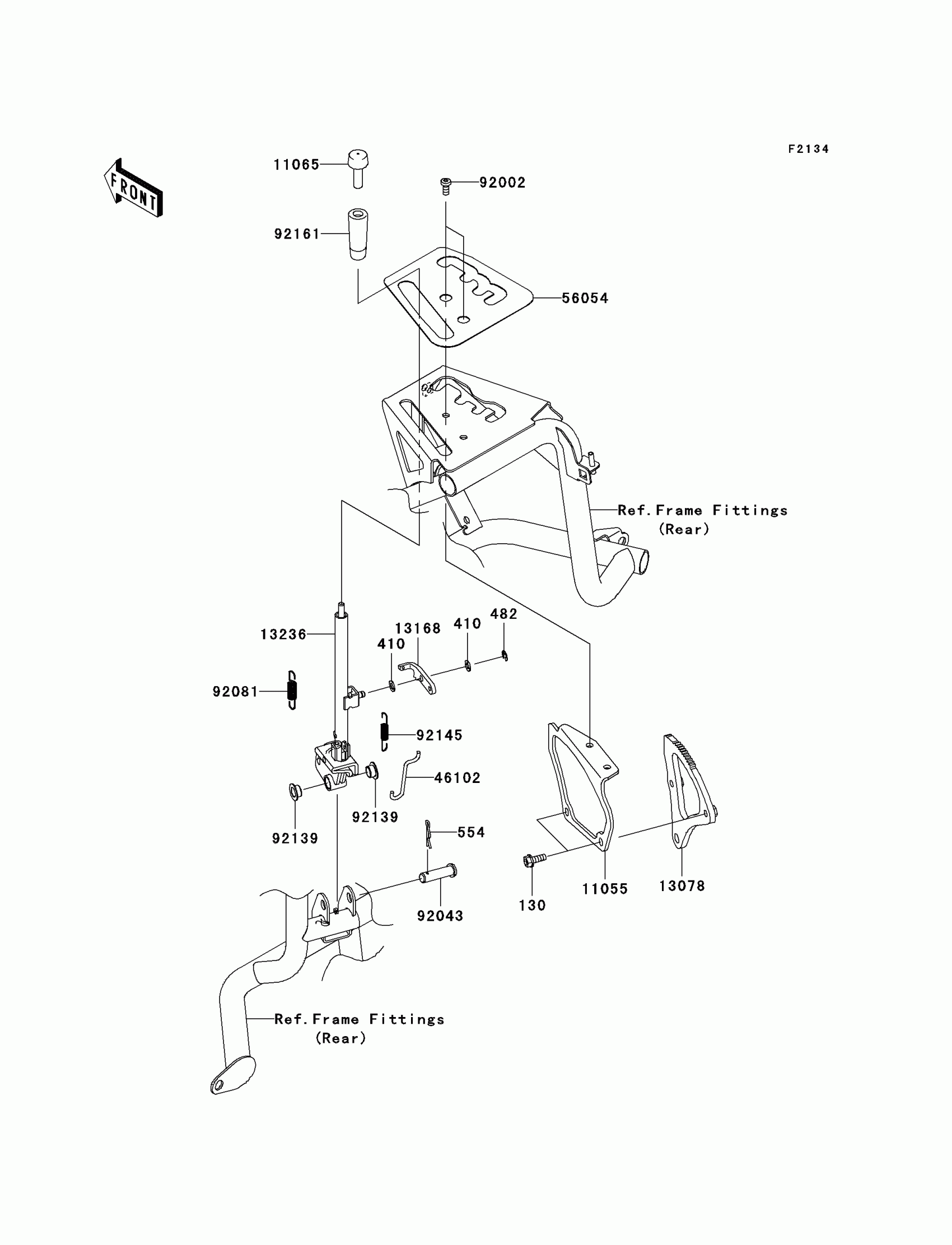

Kawasaki Teryx® 750 4x4 LE Shift Lever(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BB0616

$2.06

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

482

CIRCLIP-TYPE-E

482EA5000

$1.34

554

PIN-SNAP,10MM

554DA1000

$1.36

11055

BRACKET

11055-0477

$49.03

11065

CAP

11065-0269

$3.48

13078

RATCHET

13078-0021

$87.97

13168

LEVER

13168-0175

$14.96

13236

LEVER-COMP

13236-0163

$109.53

46102

ROD

46102-0131

$17.79

56054

MARK,DIFF LOCK

56054-0179

Unavailable

92002

BOLT,6X14

92002-1700

$6.27

92043

PIN,FOOTRST STEP FIT

92043-1069

$6.22

92081

SPRING

92081-1023

$6.46

92139

BUSHING

92139-0230

$4.61

92145

SPRING

92145-0611

$4.05

92161

DAMPER

92161-0616

$5.48
