Description

Price

130

BOLT-FLANGED,6X40

130CA0640

$2.80

130A

BOLT-FLANGED,8X30

130CA0830

$1.08

130B

BOLT-FLANGED,12X25

130CA1225

$7.74

314

NUT-HEX-FINE,10MM

314AA1000

$0.68

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.96

411

WASHER-PLAIN,6MM

411AB0600

$1.18

11065

CAP,SEAT BELT

11065-0287

$3.13

13271

PLATE,SEAT,LWR,LH,F.BLACK

13271-0894-6Z

$82.79

13271A

PLATE,SEAT,LWR,RH,F.BLACK

13271-0895-6Z

$82.79

27016

LOCK-ASSY,SEAT

27016-3758

$98.34

32154

PIPE,SEAT PLATE,LH

32154-1249

$52.33

32154A

PIPE,SEAT PLATE,RH

32154-1250

$52.33

53061

BELT-SEAT

53061-0001

$174.86

53061A

BELT-SEAT

53061-0002

Unavailable

53066

SEAT-ASSY,PAD HEAD,BLACK

53066-0163-6D

$56.44

53066A

SEAT-ASSY

53066-0195

$400.09

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,8MM

92015-1124

$5.42

92015A

NUT,12MM

92015-1368

Unavailable

92015B

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92015C

NUT,FLANGED,6MM

92015-1699

$4.92

92022

WASHER,10.5X20X1.6

92022-1591

$4.34

92043

PIN

92043-0126

$28.82

92075

DAMPER,SEAT

92075-1153

$5.24

92153

BOLT,FLANGED,10X16

92153-1740

$4.86

92153A

BOLT

92153-1924

$1.07

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

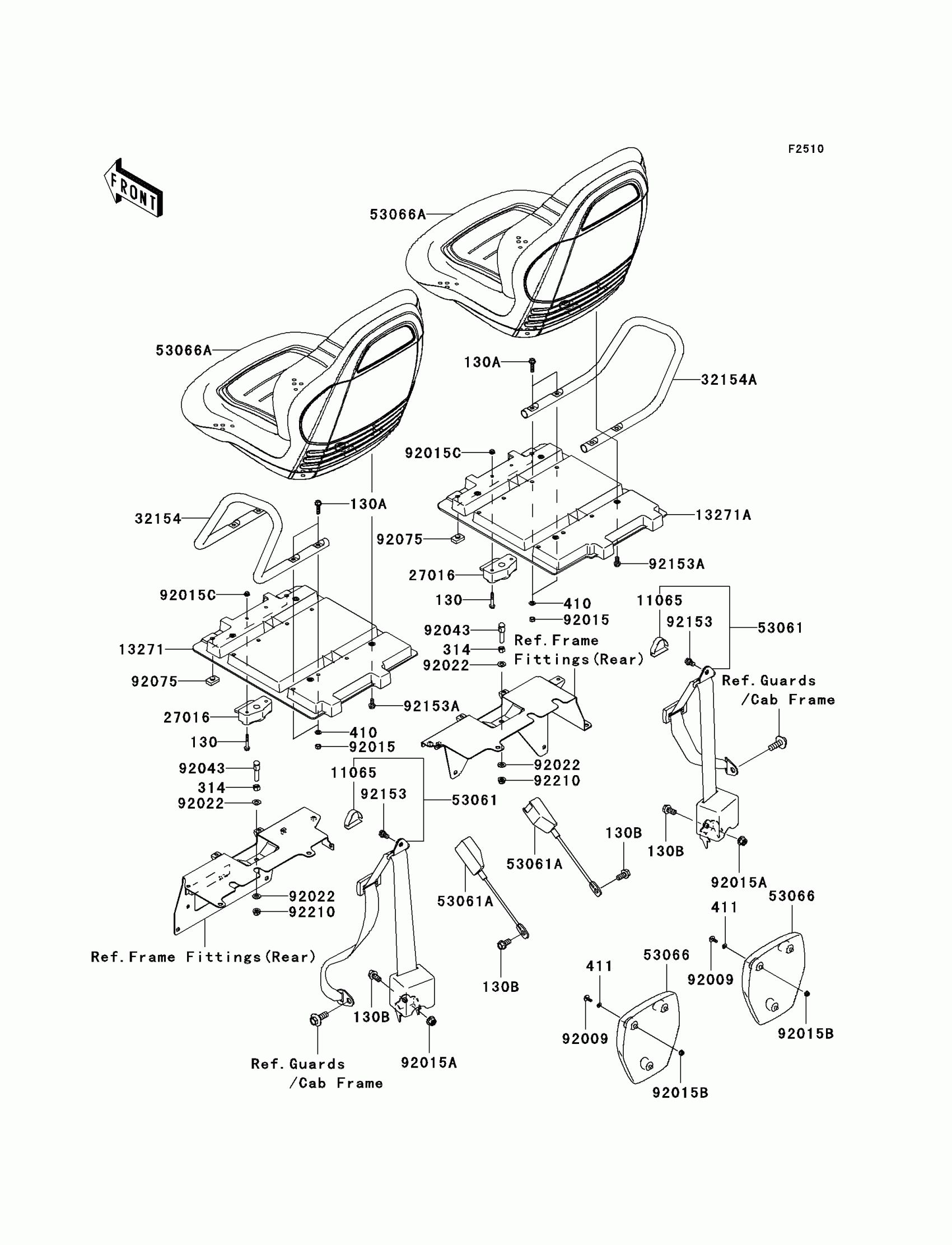

Kawasaki Teryx® 750 4x4 LE Seat Diagram

BOLT-FLANGED,6X40

BOLT-FLANGED,8X30

BOLT-FLANGED,12X25

NUT-HEX-FINE,10MM

WASHER-PLAIN-SMALL,8MM

WASHER-PLAIN,6MM

CAP,SEAT BELT

PLATE,SEAT,LWR,LH,F.BLACK

PLATE,SEAT,LWR,RH,F.BLACK

LOCK-ASSY,SEAT

PIPE,SEAT PLATE,LH

PIPE,SEAT PLATE,RH

BELT-SEAT

BELT-SEAT

SEAT-ASSY,PAD HEAD,BLACK

SEAT-ASSY

SCREW,6X16

NUT,LOCK,8MM

NUT,12MM

NUT,LOCK,FLANGED,6MM

NUT,FLANGED,6MM

WASHER,10.5X20X1.6

PIN

DAMPER,SEAT

BOLT,FLANGED,10X16

BOLT

NUT,LOCK,FLANGED,10MM
