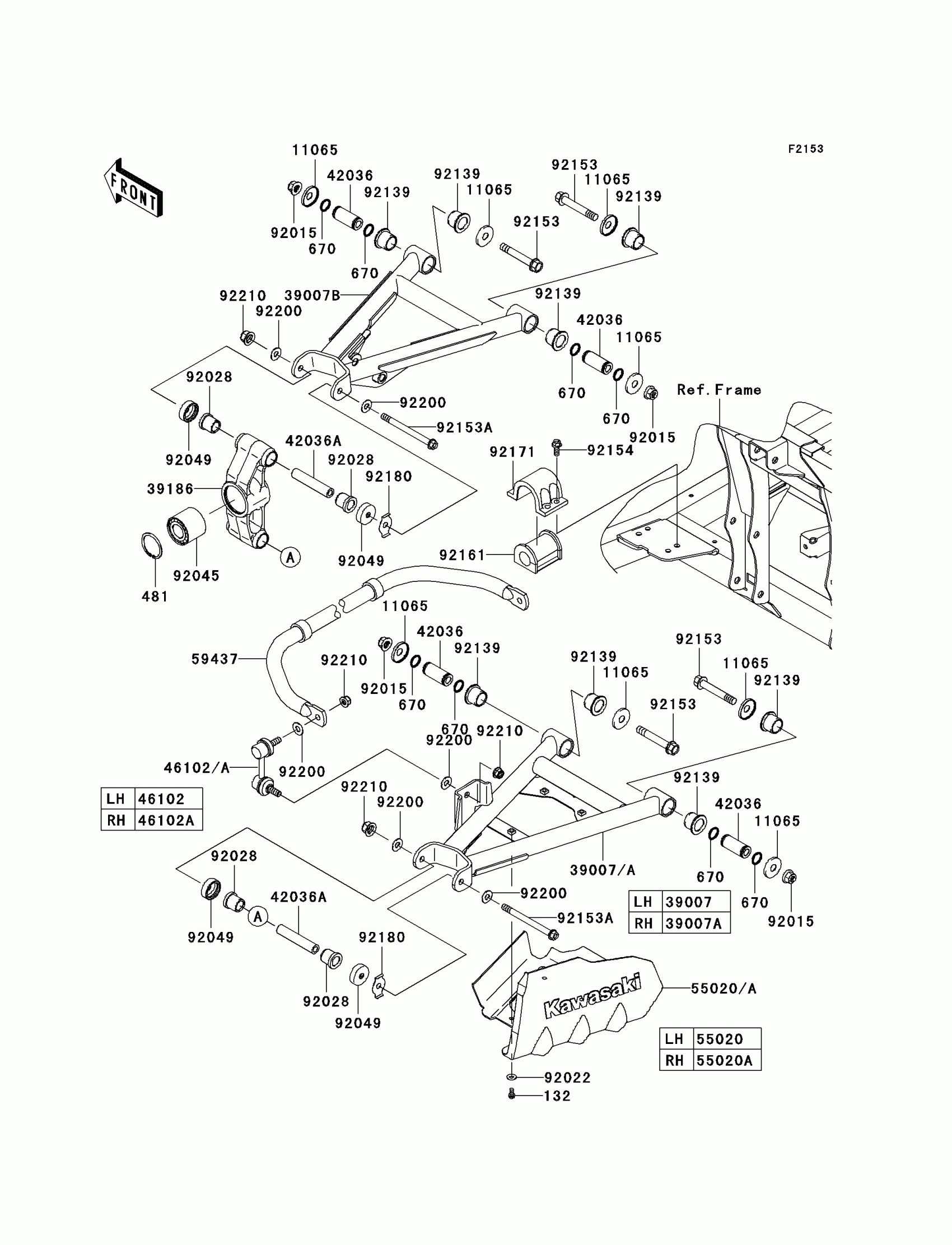

Kawasaki Teryx® 750 4x4 LE Rear Suspension Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

481

CIRCLIP-TYPE-C,52MM

481J5200

$3.72

670

O RING,18MM

670B2018

$1.08

11065

CAP

11065-0253

$2.95

39007

ARM-SUSP,RR,LWR,LH

39007-0128

$106.11

39007A

ARM-SUSP,RR,LWR,RH

39007-0129

$106.11

39007B

ARM-SUSP,RR,UPP,LH&RH

39007-0143

Unavailable

39186

KNUCKLE,RR,LH&RH

39186-0071

Unavailable

42036

SLEEVE

42036-0062

$19.37

42036A

SLEEVE,10X17X85.6

42036-1190

$26.20

46102

ROD,STABILIZER,LH

46102-0100

$43.00

46102A

ROD,STABILIZER,RH

46102-0101

$43.00

55020

GUARD,RR,LH

55020-0310

Unavailable

55020A

GUARD,RR,RH

55020-0311

Unavailable

59437

STABILIZER

59437-0006

$146.40

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92022

WASHER,7X16X1.2

92022-1344

$2.99

92028

BUSHING

92028-1466

$7.83

92045

BEARING-BALL,DAC2552W-7CS31

92045-0102

Unavailable

92049

SEAL-OIL,KNUCKLE

92049-1198

$16.19

92139

BUSHING

92139-0231

$5.87

92153

BOLT,FLANGED,12X76.5

92153-1733

$5.91

92153A

BOLT,FLANGED,10X117

92153-1966

$4.46

92154

BOLT,FLANGED,8X20

92154-0100

$2.41

92161

DAMPER

92161-0539

$9.49

92171

CLAMP

92171-1695

$9.24

92180

SHIM

92180-0292

Unavailable

92200

WASHER,10.3X23X1.6

92200-2009

$1.04

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85
