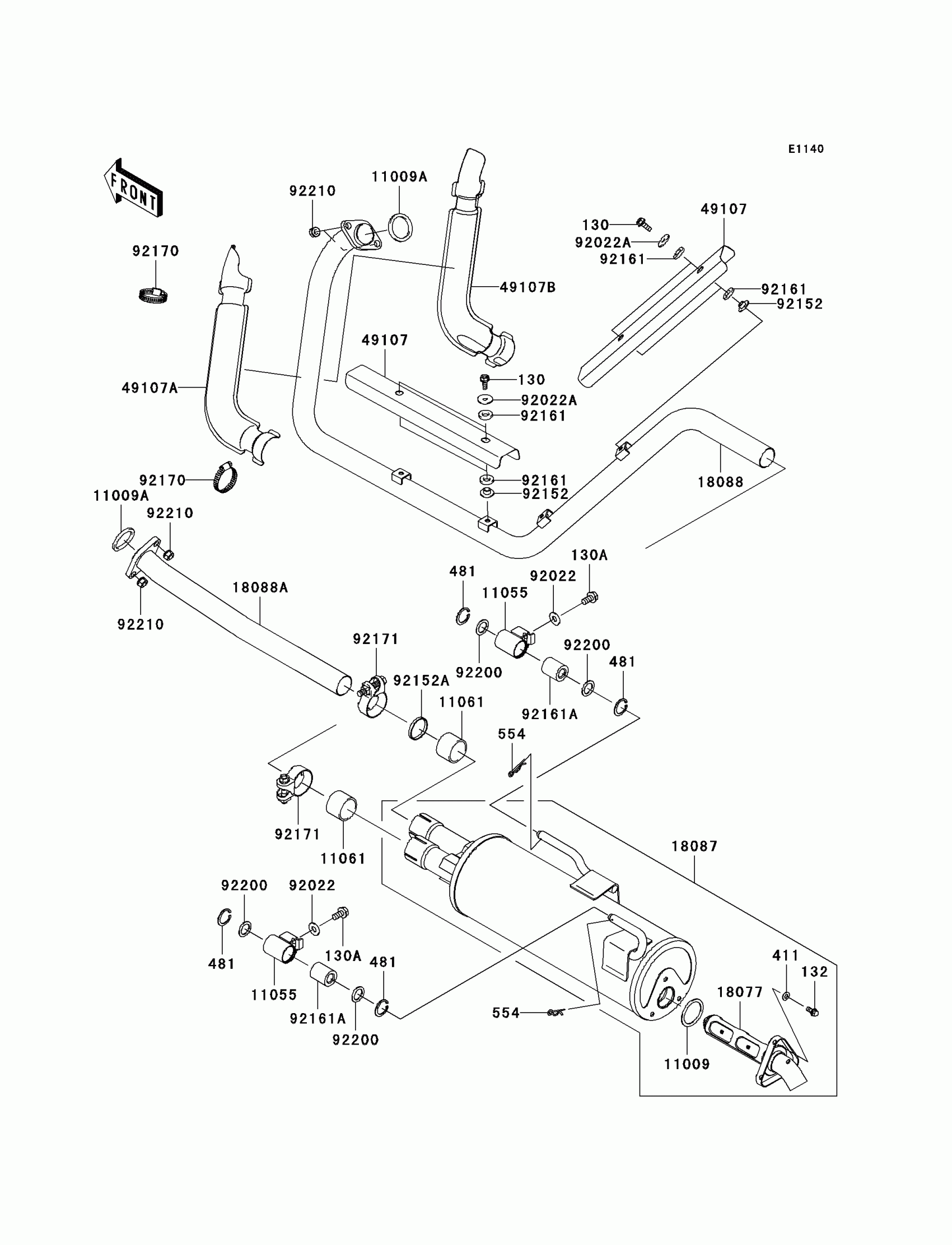

Kawasaki Teryx® 750 4x4 LE Muffler(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X16

130BD0616

$3.51

130A

BOLT-FLANGED,8X16

130CB0816

$1.76

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

411

WASHER-PLAIN,6MM

411S0600

$1.49

481

CIRCLIP-TYPE-C,25MM

481J2500

$2.14

554

PIN-SNAP,12MM

554DA1200

$2.63

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

$4.28

11009A

GASKET,EXHAUST HOLDER

11009-1894

$6.13

11055

BRACKET

11055-0499

Unavailable

11061

GASKET,MUFFLER CONNECTING

11061-0360

$25.85

18077

ARRESTER-SPARK

18077-0027

$103.21

18087

MUFFLER

18087-0177

$817.31

18088

PIPE-EXHAUST,FR

18088-0423

$396.25

18088A

PIPE-EXHAUST,RR

18088-0430

$208.75

49107

COVER-EXHAUST PIPE,MIDDLE

49107-0118

$10.31

49107A

COVER-EXHAUST PIPE,FR,LH

49107-0130

$110.51

49107B

COVER-EXHAUST PIPE,FR,RH

49107-0131

$119.86

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92022A

WASHER,6.5X22X1.6

92022-237

$2.99

92152

COLLAR

92152-0423

$2.98

92152A

COLLAR

92152-0741

$6.07

92161

DAMPER

92161-0319

$2.98

92161A

DAMPER

92161-0594

$49.98

92170

CLAMP

92170-1036

$8.51

92171

CLAMP

92171-1921

Unavailable

92200

WASHER,17X24.5X1.2

92200-0421

$1.93

92210

NUT,8MM

92210-1242

$1.73
