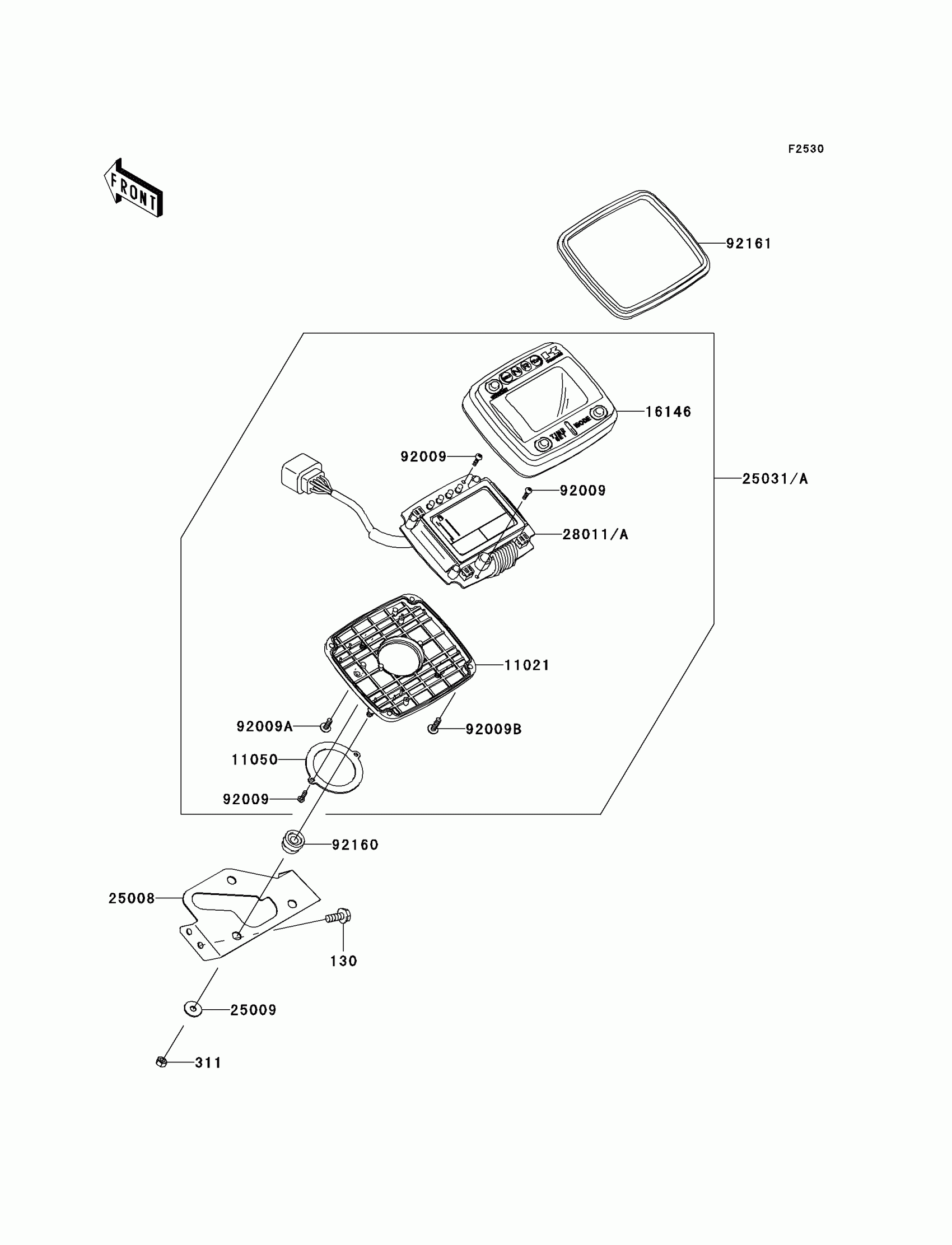

Kawasaki Teryx® 750 4x4 LE Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BB0616

$2.06

311

NUT-HEX,5MM

311AB0500

$0.43

11021

CASE-ASSY,METER,LWR

11021-0018

$126.22

11050

BRACKET,METER

11050-1932

$9.94

16146

COVER-ASSY,METER,UPP

16146-0089

$129.61

25008

BRACKET-METER

25008-0017

$13.41

25009

WASHER,5.2X16X1.2

25009-004

$3.65

92009

SCREW,TAPPING,3X12

92009-1028

$3.65

92009A

SCREW,TAPPING,4X12

92009-1254

$4.11

92009B

SCREW,6X18

92009-1663

Unavailable

92160

DAMPER

92160-1460

$4.87

92161

DAMPER,METER,UPP

92161-1114

$4.14

25031

METER-ASSY,LCD,MPH

25031-0189

$531.63

25031A

METER-ASSY,LCD,KPH

25031-0190

Unavailable

28011

METER,LCD,MPH

28011-0116

$269.73

28011A

METER,LCD,KPH

28011-0117

Unavailable
