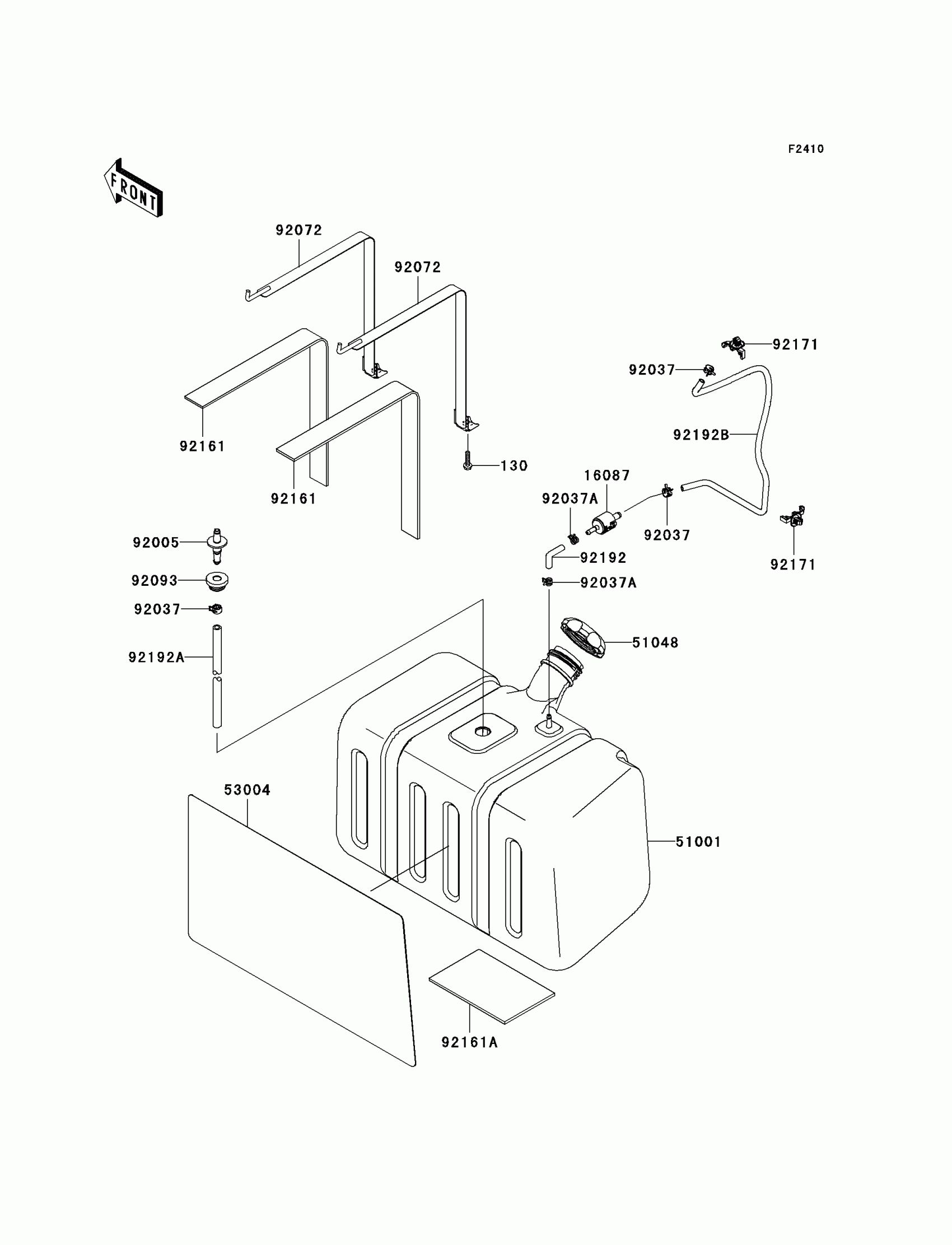

Kawasaki Teryx® 750 4x4 LE Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BA0625

$0.97

16087

VALVE-CHECK

16087-0002

$43.67

51001

TANK-COMP-FUEL

51001-0266

$301.42

51048

CAP-ASSY-TANK,FUEL

51048-0028

$49.52

53004

MAT

53004-0016

$18.37

92005

FITTING

92005-7501

$7.43

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,TUBE

92037-1461

$2.93

92072

BAND,FUEL TANK

92072-0114

$20.61

92093

SEAL

92093-0129

$35.93

92161

DAMPER

92161-0426

$12.71

92161A

DAMPER,92X35X4.76

92161-7508

$8.53

92171

CLAMP

92171-0453

$3.12

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$2.95

92192A

TUBE,8X13X320

92192-0406

$4.88

92192B

TUBE

92192-0647

$20.06
